高分解能オシロスコープ
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
(日本語字幕付きデモビデオ) ● 大画面、省スペース、常時12ビット、高分解能オシロスコープ「HDO6000Bシリーズ」 ● 12ビット・オシロスコープ性能比較（HDO6000B vs 他社製品） |
基本仕様
| モデル名 | 帯域 | ch数 | サンプリング速度 その他 |
標準メモリ | 垂直分解能） |
|---|---|---|---|---|---|
| HDO 6034B | 350MHz | 4ch | 2.5GS/s* |
50Mポイント/ch | 12ビット |
| HDO 6054B | 500MHz | 4ch | |||
| HDO 6104B | 1GHz | 4ch | |||
| ミックスド・シグナル・オシロスコープ | |||||
| HDO 6054B-MS | 500MHz | 4ch | 2.5GS/s* デジタル入力： ロジック16ch、 250MHz、 1.25GS/s、 50～125Mポイント （アナログメモリ 長に依存） |
50Mポイント/ch | 12ビット |
| HDO 6104B-MS | 1GHz | 4ch | |||
* エンハンスド・サンプリング： 10GS/s
モデルごとスペック詳細（モデル名をクリックで詳細表示されます）
HDO6034B スペックVertical - Analog Channels | |
| Analog Bandwidth (Max) | 350 MHz |
| Bandwidth | 4 |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 350 MHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 350 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 1 ns (typical) |
| Rise Time (20-80%, 50 Ω) | 700 ps (typical) |
| Input Channels | 4 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.7 bits |
| Vertical Noise Floor (1 mV/div) | 85 uVrms |
| Vertical Noise Floor (2 mV/div) | 85 uVrms |
| Vertical Noise Floor (5 mV/div) | 90 uVrms |
| Vertical Noise Floor (10 mV/div) | 95 uVrms |
| Vertical Noise Floor (20 mV/div) | 110 uVrms |
| Vertical Noise Floor (50 mV/div) | 210 uVrms |
| Vertical Noise Floor (100 mV/div) | 360 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.10 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.10 mVrms |
| Vertical Noise Floor (1 V/div) | 3.70 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | 2psrms (TIE, typical) |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate | 10 GS/s on 4 Ch with ESR |
| Maximum Acquisition Memory | 250 Mpts (4 Ch operation) |
| Sample Rate (Single-shot) | 10 GS/s on 4 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M / 50M / 50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1.25 µs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≤ 4 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 800,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 350 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 350 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 350MHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Triggers with Exclusion Technology | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Multi-Stage: Cascade (Sequence) Trigger, Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. |
| Multi-Stage: Cascade (Sequence) Trigger, Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic) |
| Multi-Stage: Cascade (Sequence) Trigger, Holdoff | Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |

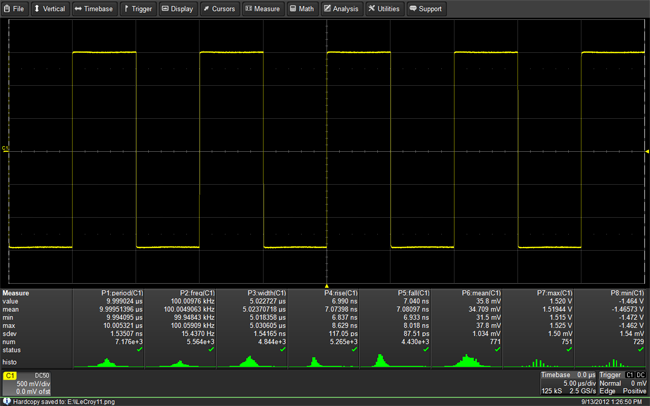

Measurement Tools | |
| Measurement Functionality | Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Three-phase Electrical and Mechanical Motor Drive Analysis Software | |
| Setup Capability | Measurement Locations: AC Input, DC Bus (Link), Drive Output. Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); None. Harmonic Filter: Select either Full Spectrum or Fundamental only. With HDO6K-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases). Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, and Drive Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function. Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported). Calculation Waveform Sources: Any input channel or stored memory trace. |
| Numerics Measurement Table Selections | Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency. Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections. |
| Per-cycle "Synthesized" Waveforms and Statistics | Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time. Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time. |
| Harmonics Calculation Option (MDA800-HARMONICS) | Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs). Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency). Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode). Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file. |
| Zoom+Gate Mode | Press "Zoom+Gate" button to create zooms of all voltage and current (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values. |
| Typical Accuracy | Typically within 1%, depending on voltage and current measurement device. |
Display System | |
| Size | Color 15.6" widescreen capacitive touch screen |
| Resolution | 1920 x 1080 pixels |
| Number of traces | Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, Tandem, Quattro, Twelve, Sixteen, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Integrated Second Display | |
| Size | Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver) |
| Resolution | 4096 x 2304 pixels |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 8 Zoom and 8 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Vertical Find Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | Intel® i5-6500 Quad Core, 3.2 GHz (or better) |
| Processor Memory | 16 GB standard |
| Operating System | Microsoft Windows® 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI™ with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz 1 x HDMI, supports up to 4096x2304 @ 60 Hz |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω 5V RMS, +/- 10V Peak 1 MΩ 400 V max (Peak DC+AC) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100 - 240 VAC ±10% at 47 - 63 Hz 100 - 240 VAC ±10% at 380 - 420 Hz Automatic AC Voltage Selection Installation Category 300 V CAT II |
| Nominal Power Consumption | 220 W / 220 VA |
| Max. Power Consumption | 320 W / 320 VA (with all PC peripherals and active probes connected to 4 channels) |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 13.8”H x 17.5”W x 6.7”D (352 mm x 445 mm x 170 mm) |
| Weight | 21 lbs (9.8 kg) |
| Shipping Weight | 33.6 lbs (15.2 kg) |
Certifications | |
| CE Certification UL and cUL Listing | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12, |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
HDO6054B スペックVertical - Analog Channels | |
| Analog Bandwidth (Max) | 500 MHz |
| Bandwidth | 4 |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 500 MHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 700 ps (typical) |
| Rise Time (20-80%, 50 Ω) | 500 ps (typical) |
| Input Channels | 4 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.6 bits |
| Vertical Noise Floor (1 mV/div) | 100 uVrms |
| Vertical Noise Floor (2 mV/div) | 100 uVrms |
| Vertical Noise Floor (5 mV/div) | 105 uVrms |
| Vertical Noise Floor (10 mV/div) | 110 uVrms |
| Vertical Noise Floor (20 mV/div) | 130 uVrms |
| Vertical Noise Floor (50 mV/div) | 265 uVrms |
| Vertical Noise Floor (100 mV/div) | 450 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.25 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.60 mVrms |
| Vertical Noise Floor (1 V/div) | 4.50 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | 2psrms (TIE, typical) |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate | 10 GS/s on 4 Ch with ESR |
| Maximum Acquisition Memory | 250 Mpts (4 Ch operation) |
| Sample Rate (Single-shot) | 10 GS/s on 4 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M / 50M / 50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1.25 µs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≤ 3.5 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 800,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 500 MHz 1.5 div @ < 250 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 500 MHz 1.5 div @ < 250 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 500MHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Triggers with Exclusion Technology | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Multi-Stage: Cascade (Sequence) Trigger, Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. |
| Multi-Stage: Cascade (Sequence) Trigger, Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic) |
| Multi-Stage: Cascade (Sequence) Trigger, Holdoff | Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Three-phase Electrical and Mechanical Motor Drive Analysis Software | |
| Setup Capability | Measurement Locations: AC Input, DC Bus (Link), Drive Output. Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); None. Harmonic Filter: Select either Full Spectrum or Fundamental only. With HDO6K-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases). Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, and Drive Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function. Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported). Calculation Waveform Sources: Any input channel or stored memory trace. |
| Numerics Measurement Table Selections | Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency. Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections. |
| Per-cycle "Synthesized" Waveforms and Statistics | Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time. Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time. |
| Harmonics Calculation Option (MDA800-HARMONICS) | Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs). Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency). Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode). Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file. |
| Zoom+Gate Mode | Press "Zoom+Gate" button to create zooms of all voltage and current (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values. |
| Typical Accuracy | Typically within 1%, depending on voltage and current measurement device. |
Display System | |
| Size | Color 15.6" widescreen capacitive touch screen |
| Resolution | 1920 x 1080 pixels |
| Number of traces | Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, Tandem, Quattro, Twelve, Sixteen, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Integrated Second Display | |
| Size | Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver) |
| Resolution | 4096 x 2304 pixels |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 8 Zoom and 8 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Vertical Find Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | Intel® i5-6500 Quad Core, 3.2 GHz (or better) |
| Processor Memory | 16 GB standard |
| Operating System | Microsoft Windows® 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI™ with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz 1 x HDMI, supports up to 4096x2304 @ 60 Hz |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω 5V RMS, +/- 10V Peak 1 MΩ 400 V max (Peak DC+AC) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100 - 240 VAC ±10% at 47 - 63 Hz 100 - 240 VAC ±10% at 380 - 420 Hz Automatic AC Voltage Selection Installation Category 300 V CAT II |
| Nominal Power Consumption | 220 W / 220 VA |
| Max. Power Consumption | 320 W / 320 VA (with all PC peripherals and active probes connected to 4 channels) |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 13.8”H x 17.5”W x 6.7”D (352 mm x 445 mm x 170 mm) |
| Weight | 21 lbs (9.8 kg) |
| Shipping Weight | 33.6 lbs (15.2 kg) |
Certifications | |
| CE Certification UL and cUL Listing | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12, |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
HDO6104B スペックVertical - Analog Channels | |
| Analog Bandwidth (Max) | 1 GHz |
| Bandwidth | 4 |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 1 GHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 450 ps (typical) |
| Rise Time (20-80%, 50 Ω) | 300 ps (typical) |
| Input Channels | 4 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.4 bits |
| Vertical Noise Floor (1 mV/div) | 145 uVrms |
| Vertical Noise Floor (2 mV/div) | 145 uVrms |
| Vertical Noise Floor (5 mV/div) | 150 uVrms |
| Vertical Noise Floor (10 mV/div) | 155 uVrms |
| Vertical Noise Floor (20 mV/div) | 185 uVrms |
| Vertical Noise Floor (50 mV/div) | 275 uVrms |
| Vertical Noise Floor (100 mV/div) | 500 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.75 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.75 mVrms |
| Vertical Noise Floor (1 V/div) | 4.90 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200-500 MHz: 50 dB (>300:1), 500 MHz up to rated bandwidth: 40 dB (>100:1) (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | 2psrms (TIE, typical) |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate | 10 GS/s on 4 Ch with ESR |
| Maximum Acquisition Memory | 250 Mpts (4 Ch operation) |
| Sample Rate (Single-shot) | 10 GS/s on 4 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M / 50M / 50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1.25 µs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≤ 3.5 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 800,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 1 GHz 1.5 div @ < 500 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 1 GHz 1.5 div @ < 500 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 1GHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Triggers with Exclusion Technology | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Multi-Stage: Cascade (Sequence) Trigger, Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. |
| Multi-Stage: Cascade (Sequence) Trigger, Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic) |
| Multi-Stage: Cascade (Sequence) Trigger, Holdoff | Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Three-phase Electrical and Mechanical Motor Drive Analysis Software | |
| Setup Capability | Measurement Locations: AC Input, DC Bus (Link), Drive Output. Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); None. Harmonic Filter: Select either Full Spectrum or Fundamental only. With HDO6K-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases). Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, and Drive Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function. Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported). Calculation Waveform Sources: Any input channel or stored memory trace. |
| Numerics Measurement Table Selections | Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency. Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections. |
| Per-cycle "Synthesized" Waveforms and Statistics | Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time. Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time. |
| Harmonics Calculation Option (MDA800-HARMONICS) | Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs). Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency). Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode). Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file. |
| Zoom+Gate Mode | Press "Zoom+Gate" button to create zooms of all voltage and current (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values. |
| Typical Accuracy | Typically within 1%, depending on voltage and current measurement device. |
Display System | |
| Size | Color 15.6" widescreen capacitive touch screen |
| Resolution | 1920 x 1080 pixels |
| Number of traces | Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, Tandem, Quattro, Twelve, Sixteen, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Integrated Second Display | |
| Size | Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver) |
| Resolution | 4096 x 2304 pixels |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 8 Zoom and 8 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Vertical Find Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | Intel® i5-6500 Quad Core, 3.2 GHz (or better) |
| Processor Memory | 16 GB standard |
| Operating System | Microsoft Windows® 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI™ with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz 1 x HDMI, supports up to 4096x2304 @ 60 Hz |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω 5V RMS, +/- 10V Peak 1 MΩ 400 V max (Peak DC+AC) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100 - 240 VAC ±10% at 47 - 63 Hz 100 - 240 VAC ±10% at 380 - 420 Hz Automatic AC Voltage Selection Installation Category 300 V CAT II |
| Nominal Power Consumption | 220 W / 220 VA |
| Max. Power Consumption | 320 W / 320 VA (with all PC peripherals and active probes connected to 4 channels) |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 13.8”H x 17.5”W x 6.7”D (352 mm x 445 mm x 170 mm) |
| Weight | 21 lbs (9.8 kg) |
| Shipping Weight | 33.6 lbs (15.2 kg) |
Certifications | |
| CE Certification UL and cUL Listing | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12, |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
HDO6054B-MS スペックVertical - Analog Channels | |
| Analog Bandwidth (Max) | 500 MHz |
| Bandwidth | 4 |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 500 MHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 700 ps (typical) |
| Rise Time (20-80%, 50 Ω) | 500 ps (typical) |
| Input Channels | 4 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.6 bits |
| Vertical Noise Floor (1 mV/div) | 100 uVrms |
| Vertical Noise Floor (2 mV/div) | 100 uVrms |
| Vertical Noise Floor (5 mV/div) | 105 uVrms |
| Vertical Noise Floor (10 mV/div) | 110 uVrms |
| Vertical Noise Floor (20 mV/div) | 130 uVrms |
| Vertical Noise Floor (50 mV/div) | 265 uVrms |
| Vertical Noise Floor (100 mV/div) | 450 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.25 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.60 mVrms |
| Vertical Noise Floor (1 V/div) | 4.50 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | Analog Channels: 2psrms (TIE, typical) Digital Channels: 350ps (maximum) between any two channels Analog-Digital Channels: <5ns (maximum) between any analog and any digital channel |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate | 10 GS/s on 4 Ch with ESR |
| Maximum Acquisition Memory | 250 Mpts (4 Ch operation) |
| Sample Rate (Single-shot) | 10 GS/s on 4 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M / 50M / 50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1.25 µs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Vertical, Horizontal, Acquisition - Digital Channels | |
| Maximum Input Frequency | 250 MHz |
| Minimum Detectable Pulse Width | 2 ns |
| Input Channels | 16 Digital channels |
| Input Impedance (Flying Leads) | 100 kΩ || 5 pF |
| Input Dynamic Range | ± 20V |
| Maximum Input Voltage | ±30V Peak |
| Maximum Input Voltage Swing | 400mV |
| Threshold Groupings | Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections | TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined |
| Threshold Accuracy | ±(3% of threshold setting + 100mV) |
| User Defined Threshold Range | ±10 V in 20 mV steps |
| User Defined Hysteresis Range | 100 mV to 1.4 V in 100 mV steps |
| Sample Rate | 1.25 GS/s |
| Record Length | Standard: 50 MS - 16 Channels Optional -L: 100 MS - 16 Channels Optional - XL: 125 MS - 16 Channels |
| Channel-to-Channel Skew | 350 ps |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≤ 3.5 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 800,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 500 MHz 1.5 div @ < 250 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 500 MHz 1.5 div @ < 250 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 500MHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Triggers with Exclusion Technology | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Multi-Stage: Cascade (Sequence) Trigger, Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. |
| Multi-Stage: Cascade (Sequence) Trigger, Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic) |
| Multi-Stage: Cascade (Sequence) Trigger, Holdoff | Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Digital (incl. with MSO models/options) | Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Three-phase Electrical and Mechanical Motor Drive Analysis Software | |
| Setup Capability | Measurement Locations: AC Input, DC Bus (Link), Drive Output. Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); None. Harmonic Filter: Select either Full Spectrum or Fundamental only. With HDO6K-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases). Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, and Drive Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function. Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported). Calculation Waveform Sources: Any input channel or stored memory trace. |
| Numerics Measurement Table Selections | Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency. Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections. |
| Per-cycle "Synthesized" Waveforms and Statistics | Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time. Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time. |
| Harmonics Calculation Option (MDA800-HARMONICS) | Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs). Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency). Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode). Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file. |
| Zoom+Gate Mode | Press "Zoom+Gate" button to create zooms of all voltage and current (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values. |
| Typical Accuracy | Typically within 1%, depending on voltage and current measurement device. |
Display System | |
| Size | Color 15.6" widescreen capacitive touch screen |
| Resolution | 1920 x 1080 pixels |
| Number of traces | Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, Tandem, Quattro, Twelve, Sixteen, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Integrated Second Display | |
| Size | Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver) |
| Resolution | 4096 x 2304 pixels |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 8 Zoom and 8 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Vertical Find Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | Intel® i5-6500 Quad Core, 3.2 GHz (or better) |
| Processor Memory | 16 GB standard |
| Operating System | Microsoft Windows® 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI™ with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz 1 x HDMI, supports up to 4096x2304 @ 60 Hz |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω 5V RMS, +/- 10V Peak 1 MΩ 400 V max (Peak DC+AC) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100 - 240 VAC ±10% at 47 - 63 Hz 100 - 240 VAC ±10% at 380 - 420 Hz Automatic AC Voltage Selection Installation Category 300 V CAT II |
| Nominal Power Consumption | 220 W / 220 VA |
| Max. Power Consumption | 320 W / 320 VA (with all PC peripherals and active probes connected to 4 channels) |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 13.8”H x 17.5”W x 6.7”D (352 mm x 445 mm x 170 mm) |
| Weight | 21 lbs (9.8 kg) |
| Shipping Weight | 33.6 lbs (15.2 kg) |
Certifications | |
| CE Certification UL and cUL Listing | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12, |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
HDO6104B-MS スペックVertical - Analog Channels | |
| Analog Bandwidth (Max) | 1 GHz |
| Bandwidth | 4 |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 1 GHz (≥1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 450 ps (typical) |
| Rise Time (20-80%, 50 Ω) | 300 ps (typical) |
| Input Channels | 4 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.4 bits |
| Vertical Noise Floor (1 mV/div) | 145 uVrms |
| Vertical Noise Floor (2 mV/div) | 145 uVrms |
| Vertical Noise Floor (5 mV/div) | 150 uVrms |
| Vertical Noise Floor (10 mV/div) | 155 uVrms |
| Vertical Noise Floor (20 mV/div) | 185 uVrms |
| Vertical Noise Floor (50 mV/div) | 275 uVrms |
| Vertical Noise Floor (100 mV/div) | 500 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.75 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.75 mVrms |
| Vertical Noise Floor (1 V/div) | 4.90 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200-500 MHz: 50 dB (>300:1), 500 MHz up to rated bandwidth: 40 dB (>100:1) (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≤ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 15 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≤ 10 ns/div; Roll Mode available at ≥ 100 ms/div and ≤ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | Analog Channels: 2psrms (TIE, typical) Digital Channels: 350ps (maximum) between any two channels Analog-Digital Channels: <5ns (maximum) between any analog and any digital channel |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate | 10 GS/s on 4 Ch with ESR |
| Maximum Acquisition Memory | 250 Mpts (4 Ch operation) |
| Sample Rate (Single-shot) | 10 GS/s on 4 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M / 50M / 50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1.25 µs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Vertical, Horizontal, Acquisition - Digital Channels | |
| Maximum Input Frequency | 250 MHz |
| Minimum Detectable Pulse Width | 2 ns |
| Input Channels | 16 Digital channels |
| Input Impedance (Flying Leads) | 100 kΩ || 5 pF |
| Input Dynamic Range | ± 20V |
| Maximum Input Voltage | ±30V Peak |
| Maximum Input Voltage Swing | 400mV |
| Threshold Groupings | Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections | TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined |
| Threshold Accuracy | ±(3% of threshold setting + 100mV) |
| User Defined Threshold Range | ±10 V in 20 mV steps |
| User Defined Hysteresis Range | 100 mV to 1.4 V in 100 mV steps |
| Sample Rate | 1.25 GS/s |
| Record Length | Standard: 50 MS - 16 Channels Optional -L: 100 MS - 16 Channels Optional - XL: 125 MS - 16 Channels |
| Channel-to-Channel Skew | 350 ps |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≤ 3.5 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 800,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 1 GHz 1.5 div @ < 500 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≥ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 1 GHz 1.5 div @ < 500 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 1GHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Triggers with Exclusion Technology | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Multi-Stage: Cascade (Sequence) Trigger, Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. |
| Multi-Stage: Cascade (Sequence) Trigger, Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic) |
| Multi-Stage: Cascade (Sequence) Trigger, Holdoff | Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Digital (incl. with MSO models/options) | Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≤, =, >, ≥, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Three-phase Electrical and Mechanical Motor Drive Analysis Software | |
| Setup Capability | Measurement Locations: AC Input, DC Bus (Link), Drive Output. Wiring Configurations: AC Input: 1-phase / 2-wire (1V1A); 1-phase / 3-wire (2V/2A); 3-phase / 3-wire (2V2A); None. DC Bus: 1-phase / 2-wire (1V1A); None. Drive Output: 1-phase / Half-Bridge (1V1A); 1-phase / Full-Bridge (1V1A); 3-phase / 3-wire (2V2A); None. Harmonic Filter: Select either Full Spectrum or Fundamental only. With HDO6K-THREEPHASEHARMONICS option, also select Fundamental + N Harmonics or Range (maximum 50th harmonic in both cases). Sync (per-cycle) Measurement Signal: Independently settable for AC Input, DC Bus, and Drive Output. Low pass filter (LPF) cutoff settable from 20 Hz to 1 MHz. Hysteresis settable from 0-100% full amplitude. Source can be any input analog channel, memory trace, or math function. Voltage Measurement Method: Line-Line or Line-Neutral (with L-L to L-N conversion supported). Calculation Waveform Sources: Any input channel or stored memory trace. |
| Numerics Measurement Table Selections | Voltage: RMS voltage, AC Voltage, DC Voltage, Peak Positive Voltage, Peak Negative Voltage, Peak-Peak Voltage, Voltage, Crest Factor, Voltage Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Current: RMS Current, AC Current, DC Current, Peak Positive Current, Peak Negative Current, Peak-Peak Current, Current, Crest Factor, Current Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option). Power, Efficiency, Other: Real, Apparent, and Reactive Power, Peak Positive Real Power, Peak Negative Real Power, Power Total Harmonic Distortion (THD) (with the HDO6K-THREEPHASEHARMONICS option), Power Factor, Phase Angle, Incremental Efficiency, Total Efficiency, Frequency. Source Selections: Voltage: Va, Vb, Vc, Va-b, Vb-c, Vc-a, Vr, Vs, Vt, Vr-s, Vs-t, Vt-r, Ia, Ib, Ic, Ir, Is, It, Vbus, Ibus. Up to 10 rows (sources) and 12 columns (measurements) may be displayed in the table at any time. Source selections dependent on Wiring Configuration selections and Line-Line to Line-Neutral selections. |
| Per-cycle "Synthesized" Waveforms and Statistics | Waveforms: A time-correlated waveform of any per-cycle Numerics Table measurement parameter may be created and displayed anywhere on the grid. Up to 12 detailed per-cycle Waveforms may be displayed at one time. Statistics: Detailed statistics on up to 12 per-cycle Numerics Table measurement parameters may be displayed at one time. |
| Harmonics Calculation Option (MDA800-HARMONICS) | Fundamental Frequency Detection: Fixed Frequency Detection mode (for Line AC inputs only) or Varying Frequency Detection Mode (for Line AC inputs or Inverter PWM outputs). Number of Harmonics Calculated: Up to 100 (Fixed Frequency) or up to 50 (Varying Frequency). Harmonics Table and Spectral Waveforms: Display values by Harmonic Order for up to 9 quantities (Voltage, Current and Power) for any or all of three phases (limited to Voltage and Current in Fixed Frequency mode). Units/Limits Selection: Select from either Amps/Volts/Watts, %, or dB. For Fixed Frequency, selection Limits file or create and assign custom limits file. |
| Zoom+Gate Mode | Press "Zoom+Gate" button to create zooms of all voltage and current (analog or digital) and simultaneously gate the Numerics and Statistics tables to the zoomed area. Displayed per-cycle "synthesized" Waveforms are simultaneously time-correlated to the zoomed area. Scroll through the full acquisition using Zoom position and ratio (size) controls and view instantaneous updates of table values. |
| Typical Accuracy | Typically within 1%, depending on voltage and current measurement device. |
Display System | |
| Size | Color 15.6" widescreen capacitive touch screen |
| Resolution | 1920 x 1080 pixels |
| Number of traces | Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, Tandem, Quattro, Twelve, Sixteen, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Integrated Second Display | |
| Size | Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver) |
| Resolution | 4096 x 2304 pixels |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 8 Zoom and 8 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Vertical Find Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | Intel® i5-6500 Quad Core, 3.2 GHz (or better) |
| Processor Memory | 16 GB standard |
| Operating System | Microsoft Windows® 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI™ with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | 4 side USB 3.1 Gen1 ports, 2 front USB 3.1 Gen1 ports |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | 1 x DisplayPort, supports up to 4096x2304 @ 24 Hz 1 x HDMI, supports up to 4096x2304 @ 60 Hz |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω 5V RMS, +/- 10V Peak 1 MΩ 400 V max (Peak DC+AC) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100 - 240 VAC ±10% at 47 - 63 Hz 100 - 240 VAC ±10% at 380 - 420 Hz Automatic AC Voltage Selection Installation Category 300 V CAT II |
| Nominal Power Consumption | 220 W / 220 VA |
| Max. Power Consumption | 320 W / 320 VA (with all PC peripherals and active probes connected to 4 channels) |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 13.8”H x 17.5”W x 6.7”D (352 mm x 445 mm x 170 mm) |
| Weight | 21 lbs (9.8 kg) |
| Shipping Weight | 33.6 lbs (15.2 kg) |
Certifications | |
| CE Certification UL and cUL Listing | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12, |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
デモビデオ
|
主な特徴
- 12ビットADC分解能
分解能向上演算（ERES）使用時に最大15ビット
− 最小ノイズフロア：85μVrms @1mV/div
− DCゲイン精度：±0.5%フルスケール
− チャンネル間アイソレーション： 1000：1 - 帯域幅：350MHz、500MHz、1GHz
- サンプリング速度：2.5GS/s（エンハンスド・サンプリング：10GS/s）
- ロングメモリ：最大250Mポイント/ch
- オフセット電圧：最高±400V
- OneTouch MAUI搭載 ─タブレット感覚のワンタッチ操作
- デジタル16ch（HDO6000B-MSのみ）
- 25MHz任意ファンクション・ジェネレータ出力（オプション）
- 15.6インチ・タッチ・スクリーン
- 幅広いプローブへの対応
- シリアル・トリガ／デコードとデバッグ・ツールキット・オプション
ミックスド・シグナル・オシロスコープ
HDO6000B-MSシリーズ
【標準搭載】
- HDO6000Bシリーズベースモデル
- 16chのロジック機能
- ロジック部
- 帯域：250MHz、
- サンプリング速度：1.25GS/s（チャンネルごと）
- メモリ長：50～125MS（チャンネルごと）
HD4096 高精細テクノロジ
HD4096高精細テクノロジは、従来のオシロスコープ（8ビット:1/256） と比較して16倍（12ビット:1/4096）の高い電圧分解能を実現し、最高1GHzの帯域までカバーします。
大画面なのに省スペース、作業スペースを確保
- 15.6インチ・タッチスクリーン、分解能1920x1080
- 他社より25%スリムな筐体
- 専有面積が小さく作業スペースを確保
強力な解析ツールで生産性アップ
MAUI Studio オフライン解析ソフトウエア - スペクトラム解析
- QPHY 自動コンプライアンス試験ソフトウエア
タブレット感覚の操作性
OneTouch MAUI（ワンタッチマウイ）搭載により、他のオシロスコープにない独自のタッチ操作でオシロスコープの操作性を刷新します。タブレット等で一般的なジェスチャを採用することで直感的な操作が可能になり設定時間が劇的に短くなります。全ての一般的な操作がポップアップ・メニューや設定メニューを開かなくともワンタッチ操作で行えます。
タッチ操作に特化した設計
独自のタッチスクリーン機能を用いることで、タブレットのように操作することができます。
簡素な実装
便利なショートカットや直感的なメニューにより設定が簡潔に行えます。
問題解決のために
デバッグの際には多種の解析ツールの操作をサポートして迅速に問題を解決します。
先進の解析機能（Measrue & Math）
自動測定パラメータ（8個）と演算機能（8個）により詳細分析・測定が可能になりました。

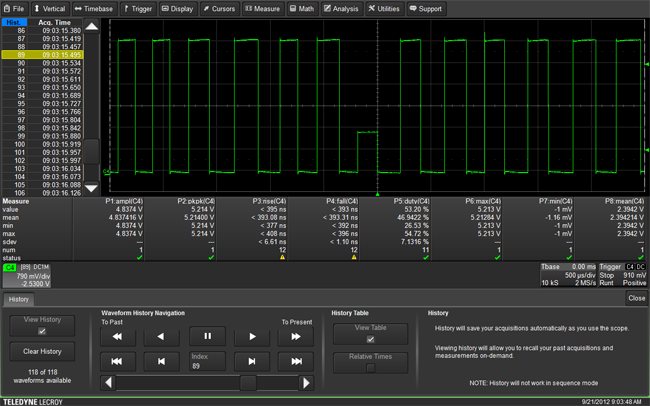

Historyモード（波形再生）
プレイバック機能により過去に起きた現象を簡単にプレイバックする事ができます。

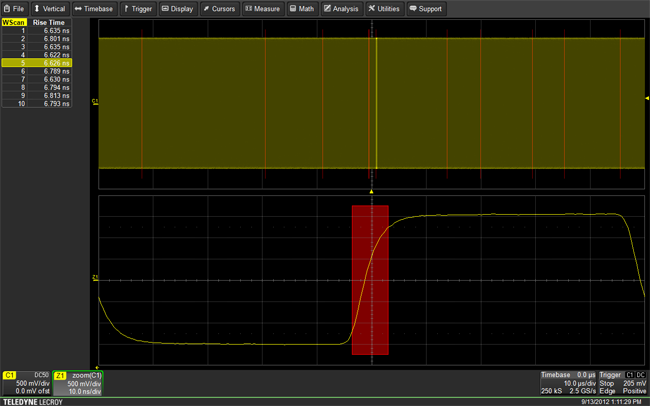

WaveScan高機能波形検索ツール
オシロスコープで捕捉したアナログ・デジタルの波形から異常現象を素早く抽出する事ができます。ラント・グリッチ・メジャーなどのパラメータを用いて解析する事ができます。

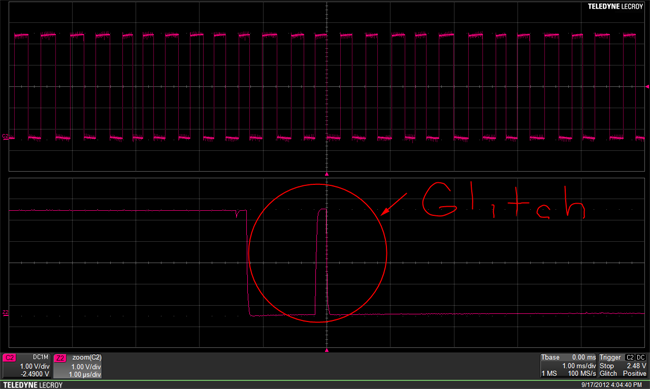

作業内容の保存とレポート作成ができるLabNotebook
LabNotebookは通常の画像保存機能を更に強化したユニークなツールです。画面コピー、シリアルナンバー、タイムスタンプ、コメント、タイトル、オシロスコープの設定条件などをレポートファイルとして出力することができます。また、PDFだけではなく波形データ・設定データも同時に保存しており、FlashBack機能で後から「その瞬間」に簡単に戻ることができます。
スペクトラム・アナライザ・モード
スペクトラム・アナライザ・モードは、Start/StopまたはCenter/Spanの指定をすると時間軸を自動設定し、FFTの深い知識が無くても周波数解析を行うことができます。分解能帯域幅は最適な測定が出来るように自動設定されるか、マニュアルで指定することもできます。
三相パワー解析オプション
4チャンネル汎用オシロスコープで三相インバータ解析が可能に─ 従来、8チャンネルのオシロスコープが必要であった三相のインバータや、パワコンなどの解析が、三相パワー解析オプションを用いることで、HDO6000シリーズの12ビット高分解能を活かし、2電力計法を用いることで三相パワーを詳細に解析することができます。
低速シリアルバス・デコード＆トリガオプション
豊富な低速シリアルバストリガ・デコードオプションの強力なトリガ機能と見やすいデコード機能により、より迅速なデバッグを可能にします。

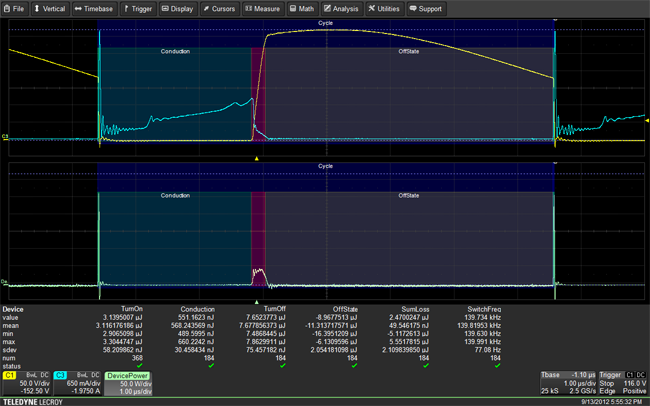

強力なスイッチングデバイス解析オプション
新たに開発された使いやすく強力なスイッチング・パワーデバイス解析オプションは、定評のある動的オン抵抗、ロス、変調解析などの測定機能を更に強化し、新機能のインダクタンス測定機能などをサポートしました。
強力で細部まで解析が可能なツール
波形の測定から演算、解析そしてレポートまでの多数のツールと、Intel® Core™ i7-2710QE Quad, 3.0 GHz (per core, in turbo mode)、16GBメモリ、最大250Mpts/chのアクイジション・メモリとパワフルなマザーボードを組み合わせることで今までにない新しい測定、解析環境を提供します。
クリックで詳細表示されます
