販売終了しました。 後継機種：
12ビット、8ch オシロスコープ
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| モデル名 | 帯域 | ch数 | サンプリング速度 |
標準メモリ | 垂直分解能） |
|---|---|---|---|---|---|
| 販売終了 HDO 8038A |
350MHz | 8ch | 2.5GS/s* |
50Mポイント/ch | 12ビット |
| 販売終了 HDO 8058A |
500MHz | 8ch | |||
| 販売終了 HDO 8108A |
1GHz | 8ch |
* エンハンスド・サンプリング： 10GS/s
モデルごとスペック詳細（モデル名をクリックで詳細表示されます）
HDO8038A スペックVertical System | |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
Vertical - Analog Channels | |
| Analog Bandwidth (Max) | 350 MHz |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 350 MHz (≧1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 350 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 1 ns (typical) |
| Rise Time (20-80%, 50 Ω) | 750 ps (typical) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.7 bits |
| Vertical Noise Floor (1 mV/div) | 85 uVrms |
| Vertical Noise Floor (2 mV/div) | 85 uVrms |
| Vertical Noise Floor (5 mV/div) | 90 uVrms |
| Vertical Noise Floor (10 mV/div) | 95 uVrms |
| Vertical Noise Floor (20 mV/div) | 110 uVrms |
| Vertical Noise Floor (50 mV/div) | 210 uVrms |
| Vertical Noise Floor (100 mV/div) | 360 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.10 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.10 mVrms |
| Vertical Noise Floor (1 V/div) | 3.70 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) F.S, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≦ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 16 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 8 input channels; an external clock may be applied at the auxiliary input for acquisition of channels 1-4 (channels 5-8 disabled) |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | Analog Channels: 2psrms (TIE, typical) Digital Channels: 350ps (maximum) between any two channels Analog-Digital Channels: <5ns (maximum) between any analog and any digital channel |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, for acquisition of channels 1-4 (channels 5-8 disabled). Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate (Single-shot) | 10 GS/s on 8 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M/50M/50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1 μs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Vertical, Horizontal, Acquisition - Digital Channels | |
| Maximum Input Frequency | 250 MHz |
| Minimum Detectable Pulse Width | 2 ns |
| Input Channels | 16 Digital channels (with HDO8k-MSO option) |
| Input Impedance (Flying Leads) | 100 kΩ || 5 pF |
| Input Dynamic Range | ± 20V |
| Maximum Input Voltage | ±30V Peak |
| Maximum Input Voltage Swing | 400mV |
| Threshold Groupings | Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections | TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined |
| Threshold Accuracy | ±(3% of threshold setting + 100mV) |
| User Defined Threshold Range | ±10 V in 20 mV steps |
| User Defined Hysteresis Range | 100 mV to 1.4 V in 100 mV steps |
| Sample Rate | 1.25 GS/s |
| Record Length | Standard: 50 MS - 16 Channels Optional -L: 100 MS - 16 Channels Optional - XL: 125 MS - 16 Channels |
| Channel-to-Channel Skew | 350 ps |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≦ 4 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 8 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 350 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≧ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 350 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 350MHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| Triggers with Exclusion Technology | Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Digital (incl. with MSO models/options) | Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≦, =, >, ≧, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Display System | |
| Size | Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen |
| Resolution | WXGA; 1280 x 800 pixels. |
| Number of traces | Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces. |
| Grid Styles | Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual. Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode. |
| Waveform Representation | Sample dots joined, or sample dots only |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
| Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | IntelR CoreTM i5-4790S Quad, 3.2 GHz (4.0 GHz in turbo mode) (or better) |
| Processor Memory | 16 GB standard for standard memory (50 Mpt) with 32 GB optional. 32 GB standard for -L and -XL memory options. |
| Operating System | Microsoft Windows 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | Minimum 6 total: 2 front panel USB2.0 and 4 rear-mounted USB3.0 support Windows compatible devices |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | DisplayPort 1.2 compatible to support customer-supplied external monitor. Includes support for extended desktop operation with UHD 3840 x 2160 pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver). |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 400 Vmax (DC + Peak AC ≦ 5 kHz) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II |
| Nominal Power Consumption | 400 W / 400 VA |
| Max. Power Consumption | 550 W / 550 VA (with all PC peripherals and active probes connected to 8 channels) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12 |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 14.8"H x 16.4"W x 11"D (375 mm x 416 mm x 280 mm) |
| Weight | 26.8 lbs. (12.2 kg) |
| Shipping Weight | 48 lbs. (21.8 kg.) |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
HDO8058A スペックVertical System | |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
Vertical - Analog Channels | |
| Analog Bandwidth (Max) | 500 MHz |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 500 MHz (≧1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 700 ps (typical) |
| Rise Time (20-80%, 50 Ω) | 525 ps (typical) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.6 bits |
| Vertical Noise Floor (1 mV/div) | 100 uVrms |
| Vertical Noise Floor (2 mV/div) | 100 uVrms |
| Vertical Noise Floor (5 mV/div) | 105 uVrms |
| Vertical Noise Floor (10 mV/div) | 110 uVrms |
| Vertical Noise Floor (20 mV/div) | 130 uVrms |
| Vertical Noise Floor (50 mV/div) | 265 uVrms |
| Vertical Noise Floor (100 mV/div) | 450 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.25 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.60 mVrms |
| Vertical Noise Floor (1 V/div) | 4.50 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) F.S, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200 MHz up to rated BW: 50 dB (>300:1), (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≦ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 16 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 8 input channels; an external clock may be applied at the auxiliary input for acquisition of channels 1-4 (channels 5-8 disabled) |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | Analog Channels: 2psrms (TIE, typical) Digital Channels: 350ps (maximum) between any two channels Analog-Digital Channels: <5ns (maximum) between any analog and any digital channel |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, for acquisition of channels 1-4 (channels 5-8 disabled). Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate (Single-shot) | 10 GS/s on 8 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M/50M/50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1 μs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Vertical, Horizontal, Acquisition - Digital Channels | |
| Maximum Input Frequency | 250 MHz |
| Minimum Detectable Pulse Width | 2 ns |
| Input Channels | 16 Digital channels (with HDO8k-MSO option) |
| Input Impedance (Flying Leads) | 100 kΩ || 5 pF |
| Input Dynamic Range | ± 20V |
| Maximum Input Voltage | ±30V Peak |
| Maximum Input Voltage Swing | 400mV |
| Threshold Groupings | Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections | TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined |
| Threshold Accuracy | ±(3% of threshold setting + 100mV) |
| User Defined Threshold Range | ±10 V in 20 mV steps |
| User Defined Hysteresis Range | 100 mV to 1.4 V in 100 mV steps |
| Sample Rate | 1.25 GS/s |
| Record Length | Standard: 50 MS - 16 Channels Optional -L: 100 MS - 16 Channels Optional - XL: 125 MS - 16 Channels |
| Channel-to-Channel Skew | 350 ps |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≦ 3.5 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 8 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 500 MHz 1.5 div @ < 250 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≧ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 500 MHz 1.5 div @ < 250 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 500MHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| Triggers with Exclusion Technology | Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Digital (incl. with MSO models/options) | Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≦, =, >, ≧, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Display System | |
| Size | Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen |
| Resolution | WXGA; 1280 x 800 pixels. |
| Number of traces | Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces. |
| Grid Styles | Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual. Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode. |
| Waveform Representation | Sample dots joined, or sample dots only |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
| Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | IntelR CoreTM i5-4790S Quad, 3.2 GHz (4.0 GHz in turbo mode) (or better) |
| Processor Memory | 16 GB standard for standard memory (50 Mpt) with 32 GB optional. 32 GB standard for -L and -XL memory options. |
| Operating System | Microsoft Windows 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | Minimum 6 total: 2 front panel USB2.0 and 4 rear-mounted USB3.0 support Windows compatible devices |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | DisplayPort 1.2 compatible to support customer-supplied external monitor. Includes support for extended desktop operation with UHD 3840 x 2160 pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver). |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 400 Vmax (DC + Peak AC ≦ 5 kHz) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II |
| Nominal Power Consumption | 400 W / 400 VA |
| Max. Power Consumption | 550 W / 550 VA (with all PC peripherals and active probes connected to 8 channels) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12 |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 14.8"H x 16.4"W x 11"D (375 mm x 416 mm x 280 mm) |
| Weight | 26.8 lbs. (12.2 kg.) |
| Shipping Weight | 48 lbs. (21.8 kg.) |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
HDO8108A スペックVertical System | |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) FS, offset at 0 V |
Vertical - Analog Channels | |
| Analog Bandwidth (Max) | 1 GHz |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 1 GHz (≧1 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) |
| Rise Time (10-90%, 50 Ω) | 450 ps (typical) |
| Rise Time (20-80%, 50 Ω) | 340 ps (typical) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits; up to 15 bits with enhanced resolution (ERES) |
| Effective Number of Bits (ENOB) | 8.4 bits |
| Vertical Noise Floor (1 mV/div) | 145 uVrms |
| Vertical Noise Floor (2 mV/div) | 145 uVrms |
| Vertical Noise Floor (5 mV/div) | 150 uVrms |
| Vertical Noise Floor (10 mV/div) | 155 uVrms |
| Vertical Noise Floor (20 mV/div) | 185 uVrms |
| Vertical Noise Floor (50 mV/div) | 275 uVrms |
| Vertical Noise Floor (100 mV/div) | 500 uVrms |
| Vertical Noise Floor (200 mV/div) | 1.75 mVrms |
| Vertical Noise Floor (500 mV/div) | 2.75 mVrms |
| Vertical Noise Floor (1 V/div) | 4.90 mVrms |
| Sensitivity | 50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±(0.5%) F.S, offset at 0 V |
| Channel-Channel Isolation | DC-200 MHz: 60 dB (>1000:1), 200-500 MHz: 50 dB (>300:1), 500 MHz up to rated bandwidth: 40 dB (>100:1) (For any two input channels, same v/div settings, typical) |
| Offset Range | 50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 198 mV/div ±160 V @ 200 mV - 1 V/div ±400 V @ 1.02 V - 10 V/div |
| DC Vertical Offset Accuracy | ±(1.0% of offset setting + 0.5%FS + 0.02% of max offset + 1mV) |
| Maximum Input Voltage | 50 Ω: 5 Vrms, 1 MΩ: 400 V max (DC + Peak AC ≦ 10 kHz) |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Input Impedance | 1 MΩ ± 2.0% || 16 pF, 50 Ω ± 2.0% |
| Bandwidth Limiters | 20MHz, 200MHz |
| Rescaling | Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %. |
Horizontal - Analog Channels | |
| Timebases | Internal timebase common to 8 input channels; an external clock may be applied at the auxiliary input for acquisition of channels 1-4 (channels 5-8 disabled) |
| Acquisition Modes | Real-time, Roll, Random Interleaved Sampling (RIS), Sequence |
| Time/Division Range | 20 ps/div - 5 ks/div with standard memory (up to 10 ks/div with -L memory, 25 ks/div with -XL memory); RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s |
| Clock Accuracy | +/-2.5ppm + 1.0ppm/year from calibration |
| Sample Clock Jitter | up to 10ms Acquired Time Range: 280fsrms (Internal Timebase Reference) |
| Delta Time Measurement Accuracy | \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds) |
| Jitter Measurement Floor | \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)} |
| Jitter Between Channels | Analog Channels: 2psrms (TIE, typical) Digital Channels: 350ps (maximum) between any two channels Analog-Digital Channels: <5ns (maximum) between any analog and any digital channel |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
| External Timebase Reference (Input) | 10MHz +/-25ppm at 0 to 10dBm into 50 Ohms |
| External Timebase Reference (Output) | 10MHz, 2.0 dBm +/-1.5 dBm, sinewave synchronized to reference being used (internal or external reference) |
| External Clock | DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, for acquisition of channels 1-4 (channels 5-8 disabled). Minimum rise time and amplitude requirements apply at low frequencies. |
Acquisition - Analog Channels | |
| Sample Rate (Single-shot) | 10 GS/s on 8 Ch with Enhanced Sample Rate |
| Sample Rate (Repetitive) | 125 GS/s for repetitive signals (20 ps/div to 10 ns/div) |
| Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 50M/50M/50M (30,000) |
| Memory Length Options (4 Ch / 2 Ch / 1Ch) (Number of Segments) | L- Option: 100M / 100M / 100M (60,000) XL - Option: 250M / 250M / 250M (65,000) |
| Intersegment Time | 1 μs |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 12.5 to 15 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x (2 pt and 4 pt); 5 or 10 GS/s Enhanced Sample Rate defaults to 2pt or 4pt Sin x/x respectively |
Vertical, Horizontal, Acquisition - Digital Channels | |
| Maximum Input Frequency | 250 MHz |
| Minimum Detectable Pulse Width | 2 ns |
| Input Channels | 16 Digital channels (with HDO8k-MSO option) |
| Input Impedance (Flying Leads) | 100 kΩ || 5 pF |
| Input Dynamic Range | ± 20V |
| Maximum Input Voltage | ±30V Peak |
| Maximum Input Voltage Swing | 400mV |
| Threshold Groupings | Pod 2: D15 - D8, Pod 1: D7 - D0 |
| Threshold Selections | TTL, ECL, CMOS (2.5 V, 3.3 V, 5 V), PECL, LVDS or User Defined |
| Threshold Accuracy | ±(3% of threshold setting + 100mV) |
| User Defined Threshold Range | ±10 V in 20 mV steps |
| User Defined Hysteresis Range | 100 mV to 1.4 V in 100 mV steps |
| Sample Rate | 1.25 GS/s |
| Record Length | Standard: 50 MS - 16 Channels Optional -L: 100 MS - 16 Channels Optional - XL: 125 MS - 16 Channels |
| Channel-to-Channel Skew | 350 ps |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling | DC, AC, HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off | From 2 ns up to 20 s or from 1 to 99,999,999 events |
| Trigger and Interpolator Jitter | ≦ 3.5 psrms (typical) <0.1 ps RMS (typical, software assisted) |
| Internal Trigger Level Range | ±4.1 div from center (typical) |
| External Trigger Level Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 8 channels) |
| Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ < 1 GHz 1.5 div @ < 500 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling, ≧ 2 mV/div, 50 Ω) |
| Trigger Sensitivity with Edge Trigger (Aux Input) | 2 div @ < 1 GHz 1.5 div @ < 500 MHz 1 div @ < 200 MHz 0.9 div @ < 10 MHz (DC, AC, and LFRej coupling) |
| Max. Trigger Frequency, SMART Trigger | 1GHz |
Trigger Types | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Width | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Glitch | Triggers on positive or negative glitches with selectable widths. minimum width 1.5ns, Maximum Width: 20s |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| Pattern | Logic combination (AND, NAND, OR, NOR) of up to 9 inputs (8 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern. |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Interval | Triggers on intervals selectable between 1 ns and 20 s. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Measurement Trigger | Select from a large number of measurement parameters. Trigger on a measurement value with qualified limits. |
| Multi-Stage: Qualified (Timeout or State/Edge Qualified) | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| Triggers with Exclusion Technology | Glitch, Width, Interval, Runt, Slew Rate - Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
| Multi-Stage: Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. (Note: event B pattern trigger cannot include analog channels). |
| TriggerScan | A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially. |
Low Speed Serial Protocol Trigger (Optional) | |
| Supported Protocols | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0 |
Measurement Tools | |
| Measurement Functionality | Display up to 12 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state. |
| Measurement Parameters - Horizontal + Jitter | Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min |
| Measurement Parameters - Vertical | Amplitude, Base, Level@X, Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top. |
| Measurement Parameters - Pulse | Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%) |
| Measurement Parameters - Statistical (on Histograms) | Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total) |
Math Tools | |
| Math Functionality | Display up to 12 math functions traces (F1-F12). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math. |
| Math Operators - Basic Math | Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+). |
| Math Operators - Digital (incl. with MSO models/options) | Digital AND, Digital DFlipFlop, Digital NAND, Digital NOR, Digital NOT, Digital OR, Digital XOR |
| Math Operators - Filters | Enhanced resolution (to 15 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x. |
| Math Operators - Frequency Analysis | FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows. |
| Math Operators - Functions | Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity). |
| Math Operators - Other | Segment, Sparse |
Measurement and Math Integration | |
| Measurement and Math Integration | Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma) |
Pass/Fail Testing | |
| Pass/Fail Testing | Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value <. ≦, =, >, ≧, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook. |
Display System | |
| Size | Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen |
| Resolution | WXGA; 1280 x 800 pixels. |
| Number of traces | Display a maximum of 40 traces. Simultaneously display channel, zoom, memory, math, and X-Y traces. |
| Grid Styles | Auto, Single, Dual, Triplex, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Triad, Quattro, Twelve, Sixteen, Twenty, DualX-Y, TripleX-Y, QuattroX-Y, HexX-Y, OctalX-Y, DualX-YSingle, DualX-YDual, HexX-Ydual. Supports Normal Display Mode (1 grid style, selectable) or Q-Scape Display Mode (4 different tabs, each with individually selectable grid styles). Q-Scape tabbed displays may be viewed in Single, Dual, or Mosaic mode. |
| Waveform Representation | Sample dots joined, or sample dots only |
Persistence Display | |
| Analog and Color-Graded Persistence | Variable saturation levels; stores each trace’s persistence data in memory |
| Persistence Types | Select analog, color, or three-dimensional |
| Trace Selection | Activate persistence on all or any combination of traces |
| Persistence Aging | Select from 500 ms to infinity |
| Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted |
Zoom Expansion Traces | |
| Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces |
Internal Waveform Memory | |
| Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. |
Setup Storage | |
| Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. |
Automatic Setup | |
| Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals |
| Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range |
Calibration | |
| Calibration Stability | Calibration ensured within +/-5°C operating temperature. Manual calibration may be invoked if outside this temperature range. |
Processor/CPU | |
| Type | IntelR CoreTM i7-4790S Quad, 3.2 GHz (4.0 GHz in turbo mode) (or better) |
| Processor Memory | 16 GB standard for standard memory (50 Mpt) with 32 GB optional. 32 GB standard for -L and -XL memory options. |
| Operating System | Microsoft Windows 10 |
| Oscilloscope Operating Software | Teledyne LeCroy MAUI with OneTouch |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Connectivity | |
| Ethernet Port | Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports) |
| USB Host Ports | Minimum 6 total: 2 front panel USB2.0 and 4 rear-mounted USB3.0 support Windows compatible devices |
| USB Device Port | 1 USBTMC port |
| GPIB Port (optional) | Supports IEEE - 488.2 (External) |
| External Monitor Port | DisplayPort 1.2 compatible to support customer-supplied external monitor. Includes support for extended desktop operation with UHD 3840 x 2160 pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver). |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
Auxiliary Input | |
| Signal Types | Select External Trigger or External Clock Input on the front panel |
| Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND |
| Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 400 Vmax (DC + Peak AC ≦ 5 kHz) |
Auxiliary Output | |
| Signal Types | Select from control signals or Off |
| Output Signal | 500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ |
| Control Signals | Trigger enabled, trigger out, pass/fail status, off |
| Connector Type | BNC, located on rear panel |
Probes | |
| Probes | Qty. (4) ÷10 Passive Probes |
| Probe System | ProBus. Automatically detects and supports a variety of compatible probes |
| Scale Factors | Automatically or manually selected depending on probe used |
| Calibration Output | Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 250 Hz to 1 MHz square wave; 50 mV to 1.0V. |
Power Requirements | |
| Voltage | 100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II |
| Nominal Power Consumption | 400 W / 400 VA |
| Max. Power Consumption | 550 W / 550 VA (with all PC peripherals and active probes connected to 8 channels) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12 |
Environmental | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | -20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +30 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Size and Weight | |
| Dimensions (HWD) | 14.8"H x 16.4"W x 11"D (375 mm x 416 mm x 280 mm) |
| Weight | 26.8 lbs. (12.2 kg.) |
| Shipping Weight | 48 lbs. (21.8 kg.) |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
主な特徴
- アナログ8ch
- ADC分解能 : 12ビット
分解能向上演算(ERES)使用時に最大15ビット- 最小ノイズフロア：85uVrms @1mV/div
- DCゲイン精度：±0.5%フルスケール
- チャンネル間アイソレーション： 1000：1
- OneTouch MAUI（ワンタッチマウイ）搭載
- サンプリング速度：2.5GS/s（エンハンスド・サンプリング：10GS/s）
- 帯域幅 : 350MHz、500MHz、1GHz
- ロングメモリ : 最大250Mポイント/ch
- オフセット電圧：最高±400V
- サンプリング速度 : 2.5GS/s
- モータ・ドライブ・アナライザ（MDA）へのアップグレード可能
- MSOオプション : ロジック16ch

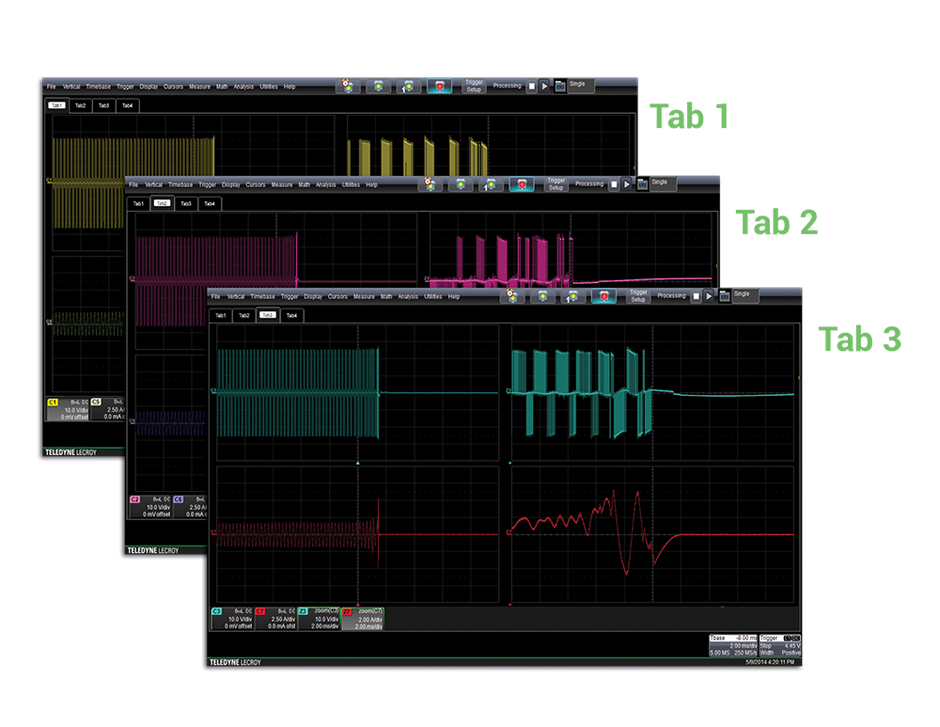

- マルチタブ・ディスプレイ表示（Q-Scape）
- 12.1インチ タッチパネル・ディスプレイ
- UHD 3840×2160外部ディスプレイに対応
- 幅広いプローブへの対応
- シリアル・トリガ&デコードとデバック・ツールキット・オプション
対応アプリケーション
- パワー・エレクトロニクス／デバイス
- 三相入出力信号
- 高速マイクロプロセッサ信号
- 組み込み制御基板でのアナログ／デジタル／シリアル・データのトラフィックのテスト
- インバータ
- モーター制御
- カーエレクトロニクス
業界初！12ビット／8ch

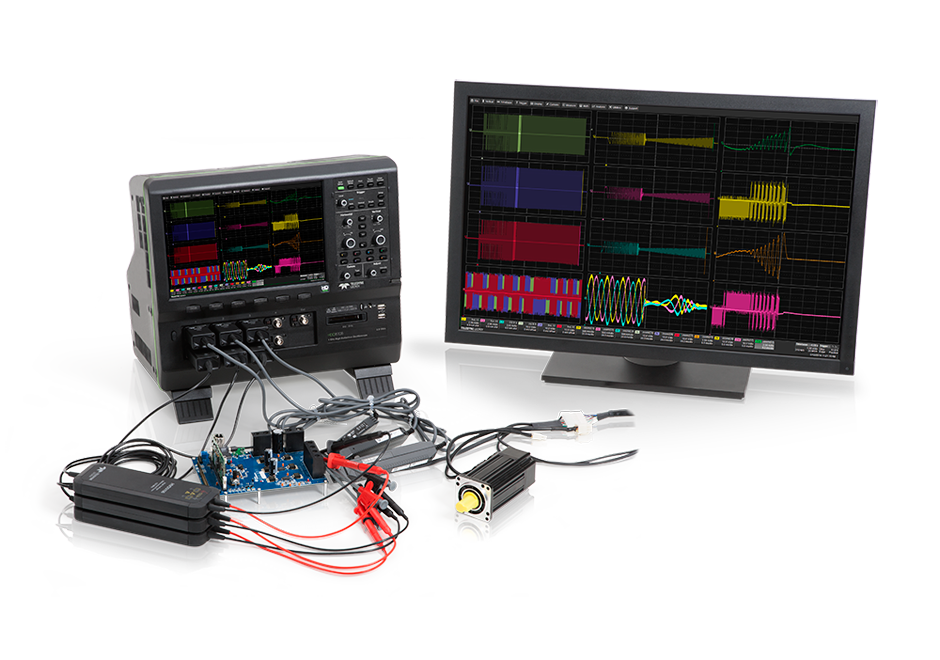

HDO8000Aシリーズは、拡大するパワーエレクトロニクス分野等の計測に必要な8ch入力に、テレダイン・ レクロイ独自のローノイズ12ビット高分解能技術を導入した業界初のオシロスコープです。
一台のオシロで8ch入力
HDO8000Aシリーズは、三相パワーエレクトロニクスで必須な各相2チャンネ ル（電圧と電流）計6chをカバーします。さらに他のセンサー信号も同時に計測できます。MSOオプション使用時もアナログ8chの同時計測が可能です。
タブレット感覚の操作性
OneTouch MAUI（ワンタッチマウイ）搭載により、他のオシロスコープにない独自のタッチ操作でオシロスコープの操作性を刷新します。タブレット等で一般的なジェスチャを採用することで直感的な操作が可能になり設定時間が劇的に短くなります。全ての一般的な操作がポップアップ・メニューや設定メニューを開かなくともワンタッチ操作で行えます。
- タッチ操作に特化した設計
独自のタッチスクリーン機能を用いることで、タブレットのように操作することができます。
- 簡素な実装
便利なショートカットや直感的なメニューにより設定が簡潔に行えます。
- 問題解決のために
デバッグの際には多種の解析ツールの操作をサポートして迅速に問題を解決します。
高分解能
ローノイズ設計のフロントエンドと12 ビット高分解能ADCで、今までノイズに隠れて見えなかった波形の詳細が明らかになります。
ミックスド・シグナル・オプション

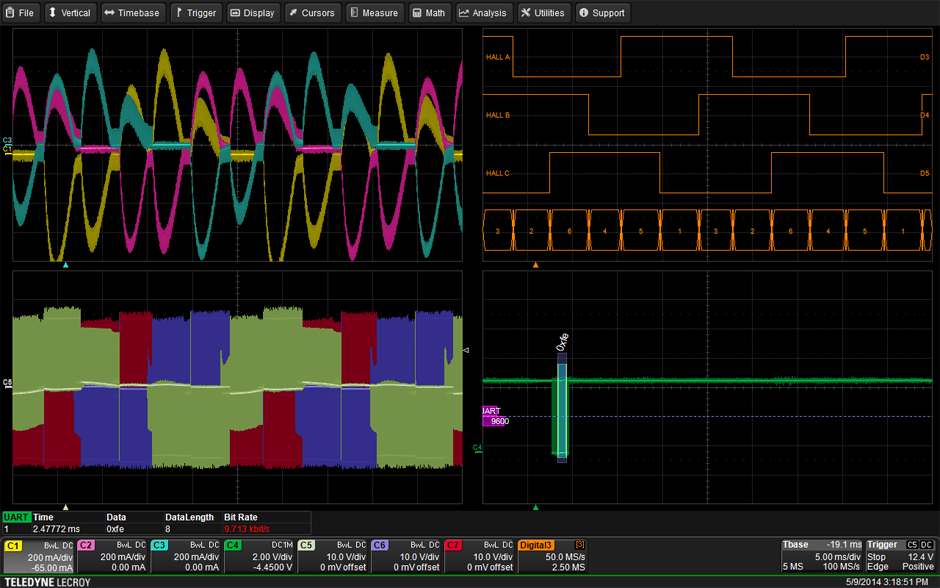

16chのデジタル入力のMSOオプション（HDO8k-MSO）やシリアル・デコード・オプションを追加すると、複雑なモーター制御に使用される組み込み回路のデバックが可能となります。
複数波形をすっきり画面表示
信号をグループ分けして表示することで、信号の視認性を損なうことなく多数の波形表示ができる画面表示機能（QScape）を標準で装備しています。
強力で細部まで解析が可能なツール
波形の測定から演算、解析そしてレポートまでの多数のツールと、Intel® Core™ i7-4790s Quad , 4.0 GHz (per core, in turbo mode)、32GBメモリ、最大250Mpts/chのアクイジション・メモリとパワフルなマザーボードを組み合わせることで今までにない新しい測定、解析環境を提供します。
センサ・アクイジション・モジュール SAM40
* 販売終了しました。
最大システム構成：48ch入力 アナログ8ch ＋ デジタル16ch ＋ 低速アナログ24ch
センサ・アクイジション・モジュール SAM40シリーズは、HDO8000AまたはMDA800Aのアナログ入力（8ch)＋デジタル入力（16ch）に、最大24chの低速アナログ入力（40MHz、100KS/s）を増設することが可能で、数多くのセンサの出力を24ビットの超高分解能で捕捉し、本体と同期して表示および解析することができます。
クリックで詳細表示されます
センサ・アクイジション・モジュール
ミックスド・シグナル・ソリューション
メモリオプション
ハードウエア・オプション
アップグレード
リモート・コントロール/ネットワーク・オプション
電源解析
トリガ／デコード・パッケージ
ジッタ解析パッケージ
デジタル・フィルタ・パッケージ
その他
クリックで詳細表示されます
