販売終了しました。
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WaveRunner MXi-Aシリーズには標準搭載 |
| ● 拡張演算パッケージ（XMATH） ● 高機能カスタマイズ・パッケージ（XDEV） ● ジッタ･タイミング解析パッケージ（JTA2） ● HDTVトリガ（HDTV-TRIG） |
基本仕様
| モデル名 | 帯域 | ch数 | サンプリング速度 | 標準メモリ |
|---|---|---|---|---|
| WaveRunner 44Xi-A WaveRunner 44MXi-A |
400 MHz | 4ch | 5GS/s | 12.5Mポイント/ch (25Mポイント@2ch) |
| WaveRunner 62Xi-A | 600 MHz | 2ch | 5〜10GS/s | 12.5Mポイント/ch (25Mポイント@1ch) |
| WaveRunner 64Xi-A WaveRunner 64MXi-A |
600 MHz | 4ch | 5〜10GS/s | 12.5Mポイント/ch (25Mポイント@2ch) |
| WaveRunner 104Xi-A WaveRunner 104MXi-A |
1GHz | 4ch | 5〜10GS/s | 12.5Mポイント/ch (25Mポイント@2ch) |
|
MXi-AシリーズにはXMATH、XDEV、JTA2、HDTV-TRIGを標準装備 * 販売終了しました。 |
||||
モデルごとスペック詳細（モデル名をクリックで詳細表示されます）
WaveRunner 44Xi-A/MXi-A スペックVertical System | |
| Analog (ProBus Input) Bandwidth @ 50 Ω (-3 dB) | 400 MHz (Nominal, 10 mV-1 V/div) |
| Analog (ProBus Input) Bandwidth @ 1 MΩ (-3 dB) | 400 MHz (typical) |
| Rise Time(10-90%) | 875 ps |
| Input Channels | 4 |
| Bandwidth Limiters | 20 MHz, 200 MHz |
| Input Impedance | 50 Ω+/-1% or 1 MΩ||16pF, 10 MΩ || 16 pF with supplied Probe |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: ±5 Vrms 1 MΩ: 400 V max. (DC + peak AC < 5 kHz) |
| Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) |
| Sensitivity | 50 Ω: 2 mV-1 V/div, fully variable; 1 MΩ: 2 mV-10 V/div, fully variable |
| DC Gain Accuracy | ±1.0% of full scale (typical); ±1.5% of full scale, ≥10 mV/div (guaranteed) |
| Offset Range | 50 Ω: ±1 V @ 2-98 mV/div ±10 V @ 100 mV/div -1 V/div 1 MΩ: ±1V @ 2-98 mV/div ±10V @ 100mV-1 V/div ±100V @ 1.02V-10V/div |
| Offset Accuracy | ±(1.5% of offset value +0.5% of full scale +1mV) |
Horizontal System | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Time/Division Range | Real-Time: 200 ps/div-10 s/div; RIS mode: 200 ps/div - 10 ns/div; Roll mode: up to 1000 s/div (roll mode is user selectable at ≥100 ms/div and ≤5 MS/s |
| Clock Accuracy | ≤ 5 ppm @ 25°C (typical) (≤ 10 ppm @ 5-40°C ) |
| Time Interval Accuracy | < 0.06 / SR + (clock accuracy* Reading) (rms) |
| Trigger and Interpolator Jitter | ≤ 3 psrms (typical) |
| Sample Rate and Delay Time Accuracy | Equal to Clock Accuracy |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
Acquisition System | |
| Single-Shot Sample Rate/Ch | 5 GS/s on 4 Ch |
| Random Interleaved Sampling (RIS) | 200 GS/s, user selectable for repetitive signals (200 ps/div to 10 ns/div) |
| Maximum Trigger Rate | 1,250,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Intersegment Time | 1μs |
| Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 12.5 M / 25 M / 25M (5,000) |
Acquisition Processing | |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling Mode | DC, AC (typically 7.5 Hz), HFRej, LFRej |
| Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off by Time | From 1 ns up to 20 s or from 1 to 1,000,000,000 events |
| Internal Trigger Range | ±4.1 div from center (typical) |
| Trigger Sensitivity with Edge Trigger (Ch 1?4) ProBus Inputs | 2 div @ < 400 MHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Sensitivity, (Edge Trigger) | 2 div @ < 400 MHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Input Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Max. Trigger Frequency, SMART Trigger | 400 MHz @ ≥ 10 mV/div |

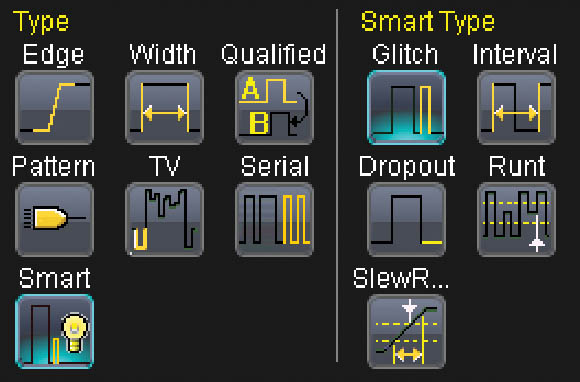

Basic Triggers | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8 |
SMART Triggers | |
| State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input, or 2 channels and external input for 62Xi). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start o |
SMART Triggers with Exclusion Technology | |
| Glitch | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Width (Signal or Pattern) | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. |
| Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. |

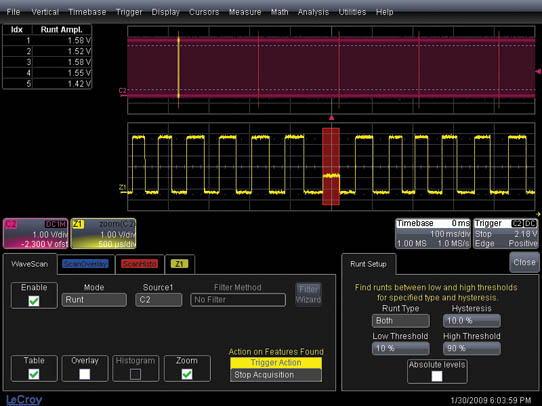

| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
Color Waveform Display | |
| Type | Color 10.4" flat panel TFT-LCD with high resolution touch screen |
| Resolution | SVGA; 800 x 600 pixels. Maximum external monitor output resolution of 2048 x 1536 pixels. |
| Number of traces | Display a maximum of 8 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Processor/CPU | |
| Type | Intel® CoreTM 2 Duo, 2.0 GHz (or better) |
| Processor Memory | 1 GB standard |
| Operating System | Microsoft Windows® XP Pro for Embedded (32-bit) |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Interface | |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
| Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant |
| GPIB Port (optional) | Supports IEEE ? 488.2 |
| Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) |
| USB Ports | minimum 5 total (incl. 1 front panel) USB 2.0 ports support Windows compatible devices |
| External Monitor Port | 15 pin D-Type SVGA compatible DB-15 to support customer-supplied external monitor. Includes support for extended desktop operation with XGA resolution on second monitor. |
| Peripheral Bus | LeCroy LBUS standard |
Power Requirements | |
| Voltage | 100-240 VAC ±10% at 50/60 Hz; 115Vrms ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category: 300V CAT II |
| Max. Power Consumption | 340 VA / 340 W (290 VA / 290 W for 62Xi-A) |
Environmental and Safety | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | ?20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Physical Dimensions | |
| Dimensions (HWD) | 10.25"H x 13.4"W x 6"D (260 x 340 x 152 mm) |
| Weight | 16.0 lbs. (7.26 kg) |
| Shipping Weight | ??? lbs. (??? kg) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, UL 61010-1 2nd edition, and CSA C22.2 No. 61010-1-04 |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
WaveRunner 62Xi-A スペックVertical System | |
| Analog (ProBus Input) Bandwidth @ 50 Ω (-3 dB) | 600 MHz (Nominal, 10 mV-1 V/div) |
| Analog (ProBus Input) Bandwidth @ 1 MΩ (-3 dB) | 500 MHz (typical) |
| Rise Time (10?90%) | 525 ps |
| Input Channels | 2 |
| Bandwidth Limiters | 20 MHz, 200 MHz |
| Input Impedance | 50 Ω+/-1% or 1 MΩ||16pF, 10 MΩ || 16 pF with supplied Probe |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: ±5 Vrms 1 MΩ: 400 V max. (DC + peak AC < 5 kHz) |
| Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) |
| Sensitivity | 50 Ω: 2 mV?1 V/div, fully variable; 1 MΩ: 2 mV?10 V/div, fully variable |
| DC Gain Accuracy | ±1.0% of full scale (typical); ±1.5% of full scale, ≥10 mV/div (guaranteed) |
| Offset Range | 50 Ω: ±1 V @ 2?98 mV/div ±10 V @ 100 mV/div -1 V/div 1 MΩ: ±1V @ 2?98 mV/div ±10V @ 100mV-1 V/div ±100V @ 1.02V-10V/div |
| Offset Accuracy | ±(1.5% of offset value +0.5% of full scale +1mV) |
Horizontal System | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Time/Division Range | Real-Time: 200 ps/div?10 s/div; RIS mode: 200 ps/div - 10 ns/div; Roll mode: up to 1000 s/div (roll mode is user selectable at ≥100 ms/div and ≤5 MS/s |
| Clock Accuracy | ≤ 5 ppm @ 25°C (typical) (≤ 10 ppm @ 5-40°C ) |
| Time Interval Accuracy | < 0.06 / SR + (clock accuracy* Reading) (rms) |
| Trigger and Interpolator Jitter | ≤ 3 psrms (typical) |
| Sample Rate and Delay Time Accuracy | Equal to Clock Accuracy |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
Acquisition System | |
| Single-Shot Sample Rate/Ch | 5 GS/s on 2Ch 10 GS/s on 1 Ch |
| Random Interleaved Sampling (RIS) | 200 GS/s, user selectable for repetitive signals (200 ps/div to 10 ns/div) |
| Maximum Trigger Rate | 1,250,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Intersegment Time | 1μs |
| Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 12.5 M / 25 M / 25M (5,000) |
Acquisition Processing | |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling Mode | DC, AC (typically 7.5 Hz), HFRej, LFRej |
| Pre-trigger Delay | 0?100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0?10,000 divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off by Time | From 1 ns up to 20 s or from 1 to 1,000,000,000 events |
| Internal Trigger Range | ±4.1 div from center (typical) |
| Trigger Sensitivity with Edge Trigger (Ch 1?4) ProBus Inputs | 2 div @ < 600 MHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Sensitivity, (Edge Trigger) | 2 div @ < 600 MHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Input Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Max. Trigger Frequency, SMART Trigger | 600 MHz @ ≥ 10 mV/div |
Basic Triggers | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8 |
SMART Triggers | |
| State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input, or 2 channels and external input for 62Xi). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start o |
SMART Triggers with Exclusion Technology | |
| Glitch | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Width (Signal or Pattern) | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. |
| Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
Color Waveform Display | |
| Type | Color 10.4" flat panel TFT-LCD with high resolution touch screen |
| Resolution | SVGA; 800 x 600 pixels. Maximum external monitor output resolution of 2048 x 1536 pixels. |
| Number of traces | Display a maximum of 8 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Processor/CPU | |
| Type | Intel® CoreTM 2 Duo, 2.0 GHz (or better) |
| Processor Memory | 1 GB standard |
| Operating System | Microsoft Windows® XP Pro for Embedded (32-bit) |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Interface | |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
| Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant |
| GPIB Port (optional) | Supports IEEE ? 488.2 |
| Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) |
| USB Ports | minimum 5 total (incl. 1 front panel) USB 2.0 ports support Windows compatible devices |
| External Monitor Port | 15 pin D-Type SVGA compatible DB-15 to support customer-supplied external monitor. Includes support for extended desktop operation with XGA resolution on second monitor. |
| Peripheral Bus | LeCroy LBUS standard |
Power Requirements | |
| Voltage | 100?240 VAC ±10% at 50/60 Hz; 115Vrms ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category: 300V CAT II |
| Max. Power Consumption | 340 VA / 340 W (290 VA / 290 W for 62Xi-A) |
Environmental and Safety | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | ?20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Physical Dimensions | |
| Dimensions (HWD) | 10.25"H x 13.4"W x 6"D (260 x 340 x 152 mm) |
| Weight | 16.0 lbs. (7.26 kg) |
| Shipping Weight | ??? lbs. (??? kg) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, UL 61010-1 2nd edition, and CSA C22.2 No. 61010-1-04 |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
WaveRunner 64Xi-A/MXi-A スペックVertical System | |
| Analog (ProBus Input) Bandwidth @ 50 Ω (-3 dB) | 600 MHz (Nominal, 10 mV-1 V/div) |
| Analog (ProBus Input) Bandwidth @ 1 MΩ (-3 dB) | 500 MHz (typical) |
| Rise Time (10?90%) | 525 ps |
| Input Channels | 4 |
| Bandwidth Limiters | 20 MHz, 200 MHz |
| Input Impedance | 50 Ω+/-1% or 1 MΩ||16pF, 10 MΩ || 16 pF with supplied Probe |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: ±5 Vrms 1 MΩ: 400 V max. (DC + peak AC < 5 kHz) |
| Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) |
| Sensitivity | 50 Ω: 2 mV?1 V/div, fully variable; 1 MΩ: 2 mV?10 V/div, fully variable |
| DC Gain Accuracy | ±1.0% of full scale (typical); ±1.5% of full scale, ≥10 mV/div (guaranteed) |
| Offset Range | 50 Ω: ±1 V @ 2?98 mV/div ±10 V @ 100 mV/div -1 V/div 1 MΩ: ±1V @ 2?98 mV/div ±10V @ 100mV-1 V/div ±100V @ 1.02V-10V/div |
| Offset Accuracy | ±(1.5% of offset value +0.5% of full scale +1mV) |
Horizontal System | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Time/Division Range | Real-Time: 200 ps/div?10 s/div; RIS mode: 200 ps/div - 10 ns/div; Roll mode: up to 1000 s/div (roll mode is user selectable at ≥100 ms/div and ≤5 MS/s |
| Clock Accuracy | ≤ 5 ppm @ 25°C (typical) (≤ 10 ppm @ 5-40°C ) |
| Time Interval Accuracy | < 0.06 / SR + (clock accuracy* Reading) (rms) |
| Trigger and Interpolator Jitter | ≤ 3 psrms (typical) |
| Sample Rate and Delay Time Accuracy | Equal to Clock Accuracy |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
Acquisition System | |
| Single-Shot Sample Rate/Ch | 5 GS/s on 4 Ch 10 GS/s on 2 Ch |
| Random Interleaved Sampling (RIS) | 200 GS/s, user selectable for repetitive signals (200 ps/div to 10 ns/div) |
| Maximum Trigger Rate | 1,250,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Intersegment Time | 1μs |
| Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 12.5 M / 25 M / 25M (5,000) |
Acquisition Processing | |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling Mode | DC, AC (typically 7.5 Hz), HFRej, LFRej |
| Pre-trigger Delay | 0?100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0?10,000 divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off by Time | From 1 ns up to 20 s or from 1 to 1,000,000,000 events |
| Internal Trigger Range | ±4.1 div from center (typical) |
| Trigger Sensitivity with Edge Trigger (Ch 1?4) ProBus Inputs | 2 div @ < 600 MHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Sensitivity, (Edge Trigger) | 2 div @ < 600 MHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Input Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Max. Trigger Frequency, SMART Trigger | 600 MHz @ ≥ 10 mV/div |
Basic Triggers | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8 |
SMART Triggers | |
| State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input, or 2 channels and external input for 62Xi). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start o |
SMART Triggers with Exclusion Technology | |
| Glitch | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Width (Signal or Pattern) | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. |
| Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
Color Waveform Display | |
| Type | Color 10.4" flat panel TFT-LCD with high resolution touch screen |
| Resolution | SVGA; 800 x 600 pixels. Maximum external monitor output resolution of 2048 x 1536 pixels. |
| Number of traces | Display a maximum of 8 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Processor/CPU | |
| Type | Intel® CoreTM 2 Duo, 2.0 GHz (or better) |
| Processor Memory | 1 GB standard |
| Operating System | Microsoft Windows® XP Pro for Embedded (32-bit) |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Interface | |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
| Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant |
| GPIB Port (optional) | Supports IEEE ? 488.2 |
| Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) |
| USB Ports | minimum 5 total (incl. 1 front panel) USB 2.0 ports support Windows compatible devices |
| External Monitor Port | 15 pin D-Type SVGA compatible DB-15 to support customer-supplied external monitor. Includes support for extended desktop operation with XGA resolution on second monitor. |
| Peripheral Bus | LeCroy LBUS standard |
Power Requirements | |
| Voltage | 100?240 VAC ±10% at 50/60 Hz; 115Vrms ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category: 300V CAT II |
| Max. Power Consumption | 340 VA / 340 W (290 VA / 290 W for 62Xi-A) |
Environmental and Safety | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | ?20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Physical Dimensions | |
| Dimensions (HWD) | 10.25"H x 13.4"W x 6"D (260 x 340 x 152 mm) |
| Weight | 16.0 lbs. (7.26 kg) |
| Shipping Weight | ??? lbs. (??? kg) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, UL 61010-1 2nd edition, and CSA C22.2 No. 61010-1-04 |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
WaveRunner 104Xi-A/MXi-A スペックVertical System | |
| Analog (ProBus Input) Bandwidth @ 50 Ω (-3 dB) | 1 GHz (Nominal, 10 mV-1 V/div) |
| Analog (ProBus Input) Bandwidth @ 1 MΩ (-3 dB) | 500 MHz (typical) |
| Rise Time (10?90%) | 350 ps |
| Input Channels | 4 |
| Bandwidth Limiters | 20 MHz, 200 MHz |
| Input Impedance | 50 Ω+/-1.5% or 1 MΩ||16pF, 10 MΩ || 16 pF with supplied Probe |
| Input Coupling | 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: ±5 Vrms 1 MΩ: 250 V max. (DC + peak AC < 10 kHz) |
| Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) |
| Sensitivity | 50 Ω: 2 mV?1 V/div, fully variable; 1 MΩ: 2 mV?10 V/div, fully variable |
| DC Gain Accuracy | ±1.0% of full scale (typical); ±1.5% of full scale, ≥10 mV/div (guaranteed) |
| Offset Range | 50 Ω: ±400 mV @ 2?4.95 mV/div ±1V @ 5?99 mV/div ±10 V @ 100 mV/div -1 V/div 1 MΩ: ±400 mV @ 2?4.95 mV/div ±1V @ 5?99 mV/div ±10 V @ 100 mV/div -1 V/div ±100V @ 1.02V-10V/div |
| Offset Accuracy | ±(1.5% of offset value +1% of full scale +1mV) |
Horizontal System | |
| Timebases | Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input |
| Time/Division Range | Real-Time: 200 ps/div?10 s/div; RIS mode: 200 ps/div - 10 ns/div; Roll mode: up to 1000 s/div (roll mode is user selectable at ≥100 ms/div and ≤5 MS/s |
| Clock Accuracy | ≤ 5 ppm @ 25°C (typical) (≤ 10 ppm @ 5-40°C ) |
| Time Interval Accuracy | < 0.06 / SR + (clock accuracy* Reading) (rms) |
| Trigger and Interpolator Jitter | ≤ 3 psrms (typical) |
| Sample Rate and Delay Time Accuracy | Equal to Clock Accuracy |
| Channel-Channel Deskew Range | ±9 x time/div. setting, 100 ms max., each channel |
Acquisition System | |
| Single-Shot Sample Rate/Ch | 5 GS/s on 4 Ch 10 GS/s on 2 Ch |
| Random Interleaved Sampling (RIS) | 200 GS/s, user selectable for repetitive signals (100 ps/div to 10 ns/div) |
| Maximum Trigger Rate | 1,250,000 waveforms/second (in Sequence Mode, up to 4 channels) |
| Intersegment Time | 1μs |
| Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 12.5 M / 25 M / 25M (5,000) |
Acquisition Processing | |
| Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps |
| Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution |
| Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps |
| Interpolation | Linear or Sin x/x |
Triggering System | |
| Modes | Normal, Auto, Single, and Stop |
| Sources | Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger) |
| Coupling Mode | DC, AC (typically 7.5 Hz), HFRej, LFRej |
| Pre-trigger Delay | 0?100% of memory size (adjustable in 1% increments of 100 ns) |
| Post-trigger Delay | 0?10,000 divisions in real time mode, limited at slower time/div settings or in roll mode |
| Hold-off by Time | From 1 ns up to 20 s or from 1 to 1,000,000,000 events |
| Internal Trigger Range | ±4.1 div from center (typical) |
| Trigger Sensitivity with Edge Trigger (Ch 1?4) ProBus Inputs | 2 div @ < 1 GHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Sensitivity, (Edge Trigger) | 2 div @ < 1 GHz 1 div @ < 200 MHz (DC, AC, and LFRej coupling) |
| External Trigger Input Range | Ext (±0.4 V); Ext/10 (±4 V) |
| Max. Trigger Frequency, SMART Trigger | 1 GHz @ ≥ 10 mV/div |
Basic Triggers | |
| Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. |
| Window | Triggers when signal exits a window defined by adjustable thresholds |
| TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8 |
SMART Triggers | |
| State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events. |
| Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. |
| Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. |
| Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input, or 2 channels and external input for 62Xi). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start o |
SMART Triggers with Exclusion Technology | |
| Glitch | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Width (Signal or Pattern) | Triggers on positive or negative glitches with widths selectable as low as 500ps (depending on oscilloscope bandwidth) to 20 s, or on intermittent faults. |
| Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. |
| Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. |
| Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. |
| Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. |
| Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met |
Color Waveform Display | |
| Type | Color 10.4" flat panel TFT-LCD with high resolution touch screen |
| Resolution | SVGA; 800 x 600 pixels. Maximum external monitor output resolution of 2048 x 1536 pixels. |
| Number of traces | Display a maximum of 8 traces. Simultaneously display channel, zoom, memory and math traces. |
| Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y |
| Waveform Representation | Sample dots joined, or sample dots only |
Processor/CPU | |
| Type | Intel® CoreTM 2 Duo, 2.0 GHz (or better) |
| Processor Memory | 1 GB standard |
| Operating System | Microsoft Windows® XP Pro for Embedded (32-bit) |
| Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. |
Interface | |
| Remote Control | Via Windows Automation, or via LeCroy Remote Command Set |
| Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant |
| GPIB Port (optional) | Supports IEEE ? 488.2 |
| Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) |
| USB Ports | minimum 5 total (incl. 1 front panel) USB 2.0 ports support Windows compatible devices |
| External Monitor Port | 15 pin D-Type SVGA compatible DB-15 to support customer-supplied external monitor. Includes support for extended desktop operation with XGA resolution on second monitor. |
| Peripheral Bus | LeCroy LBUS standard |
Power Requirements | |
| Voltage | 100?240 VAC ±10% at 50/60 Hz; 115Vrms ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category: 300V CAT II |
| Max. Power Consumption | 340 VA / 340 W (290 VA / 290 W for 62Xi-A) |
Environmental and Safety | |
| Temperature (Operating) | +5 °C to +40 °C |
| Temperature (Non-Operating) | ?20 °C to +60 °C |
| Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. |
| Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F |
| Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C |
| Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) |
| Random Vibration (Operating) | 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes |
| Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total |
Physical Dimensions | |
| Dimensions (HWD) | 10.25"H x 13.4"W x 6"D (260 x 340 x 152 mm) |
| Weight | 16.0 lbs. (7.26 kg) |
| Shipping Weight | ??? lbs. (??? kg) |
Certifications | |
| Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, UL 61010-1 2nd edition, and CSA C22.2 No. 61010-1-04 |
Warranty and Service | |
| Warranty and Service | 3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services. |
完璧な機能性−あらゆるテストに対応
WaveRunner Xi-A/MXi-Aシリーズは同等クラスで最も強力で高い機能を備えたオシロスコープです。基本的なシステム検証に、拡張トリガ、高速表示モード、測定パラメータ、またはシリアル・デコードを使用し、簡単で使いやすくなっています。
WaveRunner Xi-A/MXi-Aシリーズ独自のツールで、高度なデバッグ、マルチドメイン解析、波形解析が可能です。
オプションのアプリケーション・パッケージは、明確な問題の理解に役立ちます。
シリアル・データ信号の分析機能を強化
I2C、SPI、UART、RS-232、AudioBus（I2S、LJ、RJ、TDM）、LIN、CAN、
またはFlexRayシリアル・データ・パターンでトリガを実行。
デコード･データをオシロスコープの波形上に直感的に表示します。
高度なトリガでイベントを検出
スマート・トリガ、シリアル・トリガ、デジタル・トリガ（MSシリーズ）などの多様なトリガを使用して、目的のイベントをすばやく簡単に検出できます（一部のトリガはオプション）。

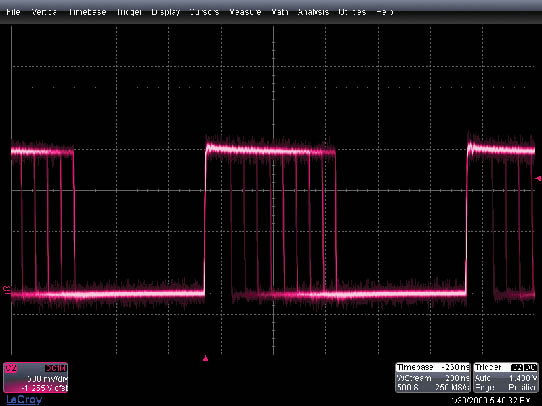

WaveStream
高速表示モード
高速のサンプリング・レートとWaveStream高速表示モードを使用して、信号形状、立ち上がり時間、オーバーシュートなどの特性分析を行うほか、高速信号トレンドやトラック、ジッタなどを確認します。
拡張捕捉モード
シーケンス・モードでは、捕捉メモリを複数のセグメントに分割し、特定のイベントを長期的に捕捉できます。各セグメントは個別に表示、解析が行えます。
WaveScan
高機能波形検索ツール
WaveScanには、20種類を超える検索/スキャン・モードを使用して、単一の捕捉から異常なイベントを検出する機能と、長時間にわたる数多くの捕捉で一定のイベントを検索する機能があります。ScanHisto（スキャン・ヒストグラム）、またはScanOverlay（スキャン・オーバーレイ）を使用するとスキャン結果を直感的に表示できます。
完全なカスタマイズが可能
Excel、MATLAB、またはVBScriポイントを使用して、独自の測定パラメータや演算関数をすばやく作成できます（一部の機能はオプション）。
拡張アプリケーション・パッケージ
多様なアプリケーション・パッケージで、特定の問題に詳細で迅速なソリューションを提供します。
フロント・パネルのズーム・コントロールを使用したすばやいロング・メモリ操作
WaveRunner Xi-A/MXi-Aシリーズのロング・メモリは、フロント・パネルか
らズームと位置調整が簡単に操作できるだけでなく、他のオシロスコープの10〜100倍速で計算して有用な情報が得られるように最適化されています。
多様な演算機能と測定機能
多くの標準およびオプション測定機能、強力な演算機能を用意しており、よりすばやく結果を表示することができます。

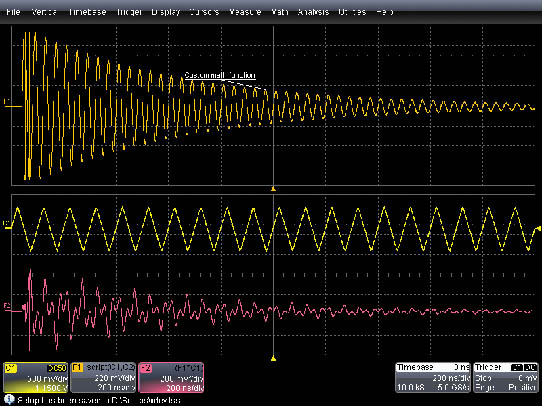

時間領域解析を超える機能
信号のマルチドメイン解析によって、より詳細な解析が可能です。信号情報を統計領域（ヒストグラム）、周波数領域（ロング・メモリFFT）、ジッタ、変調、またはその他の測定パラメータ領域（測定パラメータのトラック）に変換します。（一部の機能はオプション）。
統合ツール・セット
レクロイの演算ツール、測定ツール、および解析ツールは、基本的なオシロスコープ操作と完全に統合されています。何の制限もなく、簡単に個々の機能をリンクしてより高度な解析に活用できます。
完璧なプローブ・ソリューション
アクティブFETプローブ、電流プローブ、差動プローブ、高電圧プローブなど、完璧に用意されたプローブ･チップおよびグランド・アクセサリを使用して、信号を簡単にプロービングできます。
ミックスド･シグナル･オプション
MSシリーズでは、最大500MHzの速度でデジタル信号を捕捉できます。最大50Mポイント/Chのメモリを使った最大36本のデジタル・チャンネル表示で、アナログ・イベントとデジタル・イベントを同時に解析できます。
電源と増幅器の測定
卓越したオーバードライブ・リカバリとシグナル・インテグリティを実現したWaveRunner Xi-A/MXi-Aシリーズは、高電圧スイッチング損失、伝導損、リップル、スイッチング電源、その他の増幅器情報を測定するのに最適なソリューションです。レクロイの差動アンプと併用すれば、100,000:1という高いコモンモード除去率が実現できます。
タイミング特性分析
高度なトリガを使用して、イベントをすばやく解析します。ヒストグラムを使用してタイミングの統計測定と振る舞いをグラフィック表示して、不良の根本的な原因を的確に究明します。
低速信号と高速信号が混合した回路
ロングメモリ、HFREJトリガ・カップリング、内蔵ノイズ・フィルタなどを利用し、低速信号（センサー/アクチュエータ信号、電源信号、機械信号など）と高速信号が混合した回路内における信号の動作を効率的にデバッグできます。
WaveScan（不良信号検索機能）標準装備
稀に起きる不良信号を検索、拡大表示します。
検出された不良信号の一覧表示、ヒストグラム、重ね書き表示などが可能です。（WaveScan詳細ページ）
LabNotebook™ 文書化とレポート作成のためのユニークなツール
WaveRunner Xi-AのLabNotebookは、作業内容の保存と文書化を行うためのレポート作成ツールです。LabNotebookを使用するだけで、表示中の波形、WaveRunner Xi-Aの設定情報や画面イメージなどをすべて保存できるため、複数のメニューを操作して各ファイルを個別に保存する必要はありません。
高度な機能
WaveRunner Xi-Aには、次の例に示すように、同等クラスのオシロスコープでは利用できない数多くのデバッグ機能と分析機能があります。
- シーケンス捕捉モード（最高トリガレート1.25MHz） − 時間的に離れたイベントの捕捉、表示、分析を最適化する機能
- 広範な合否条件機能 − 複数の条件と制約を指定可能、条件が満たされたときに実行されるアクションを柔軟に選択する機能
- Excel、MATLAB、Mathcad、VBScriptsを使用して、ユーザー独自の測定パラメータや演算機能を作成する機能

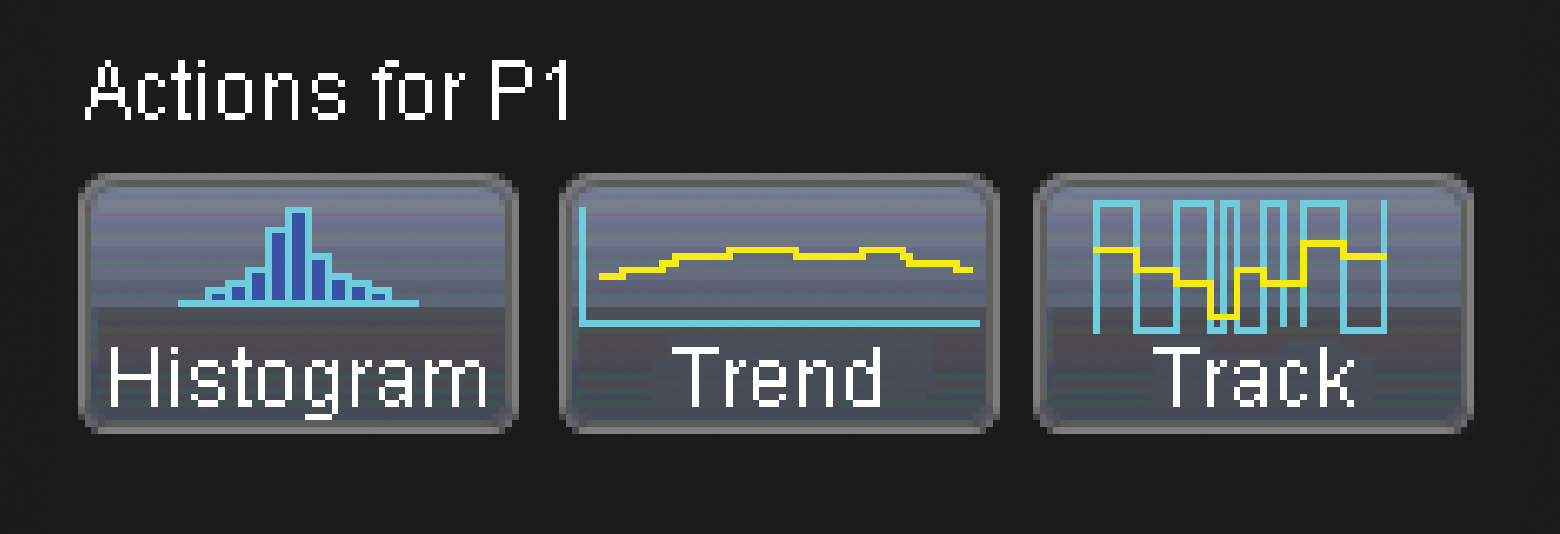

- PWM信号や他のデータの特性をグラフィック・モード(Track)で分析して、信号の変調および信号の動作（オプション）を把握する機能
I2C、SPI、UART、RS-232、AudioBus（I2S、LJ、RJ、TDM）、LIN、CAN、およびFlexRayシリアル・トリガに対応
条件は、バイナリ形式または16進形式（CANではシンボリック形式）で設定できます。
強力な条件付きDATAトリガ機能
より深い洞察とデバッグのために、特定のメッセージ・イベントを完全に分 離します。条件付きDATAトリガ機能 （対応可能なデータはI2C 、UART 、RS-232、LIN、FlexRay）を使用すると、単一のDATA値だけではなく、一定範囲のDATA値を選択してトリガを設定できます。

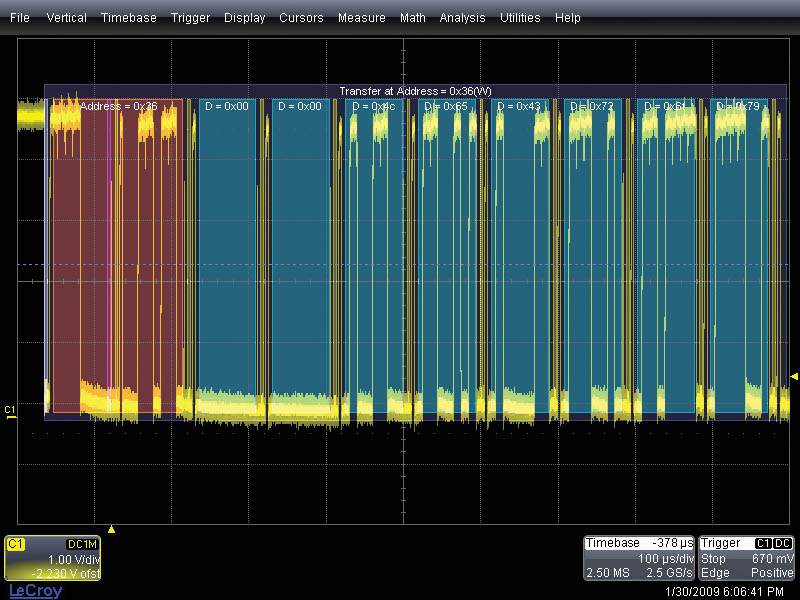

色分けされた直感的なデコード・オーバーレイ
高度なソフトウェア・アルゴリズムによって、波形情報から2進形式、16進形式、またはASCII形式のプロトコル情報が引き出された後、デコード済みのデータが波形に重ねられます。プロトコルの様々な部分は理解しやすいように色分けされます。長い捕捉データでも高速のデコード処理が可能です。
テーブル・サマリーと検索／ズーム
プロトコル情報の要約をテーブル形式で表示する簡易プロトコル・アナライザとしてオシロスコープを使用できます。テーブルのカスタマイズ機能や、テーブル・データをExcelファイルにエクスポートする機能があります。テーブル内のメッセージにタッチすると、そのメッセージに関連する波形が自動的にズーム表示されます。スキャン済みのデータ内で特定のアドレスやデータ値を検索することもできます。
ミックスド・シグナル・オプション
32本のデジタル・チャンネルを4チャンネルのWaveRunner Xiシリーズに追加し、簡単なセットアップとユーザー･インタフェースで、オシロスコープの検査機能を「4アナログ+32デジタル」に拡張することができます。各デジタル・チャンネルは1 Mpts/Ch (合計32 Mpts) であり、効率的なデバッグと解析に必要なすべての信号情報が収集されます。32本のデジタル・チャンネルは16ビットの組み込み型コントローラの効率的なテストに理想的なソリューションであり、16本のアドレス（ADDR）ラインと16本のデータ（DATA）ラインをすべて同時に表示してテストを実行することができます。
スマート・トリガでイベントを分離
WaveRunner Xi-A/MXi-Aシリーズは、あらゆるニーズに対応する、さまざまな 基本的トリガと高度な（スマート）トリガを使用できます。高度なトリガで目的のイベントを分離して、ロング・メモリと組み合わせることによって、イベントに関係する信号動作を完璧に把握できます。WaveRunner Xi-A/MXi-Aシリー ズは、この点で卓越した機能を備えてい ます。
TriggerScan
TriggerScanは、高速ハードウェア・ トリガ機能で目的の信号のみを捕捉してパーシスタンス表示することで、他の方法の100倍もの速さで問題の答を発見できます。従来の高速ディスプレイ更新モードは、遅いエッジ速度で頻繁に発生するイベン トに最適ですが、TriggerScanは早いエッジ速度で不定期に発生するイベントの検出に優れています。ハードウェア・トリガは希にしか起きないイベントだけを捕捉するので、TriggerScanは単純な表示技術に比べて、より効果的にすばやく異常なイベン トを検出します。

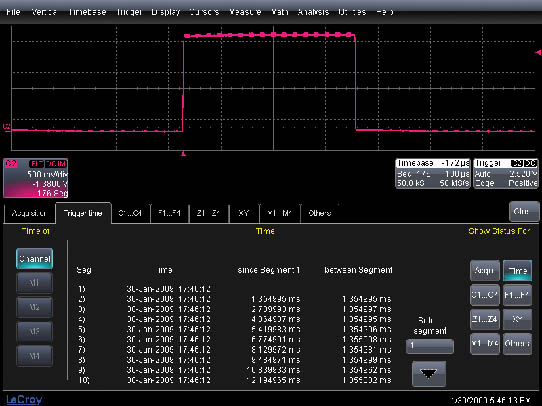

シーケンス・モードでロング・メモリおよびスマート・トリガ機能を拡張
シーケンス・モードを使用すると、最大5,000個のイベントを「セグメント」としてオシロスコープのメモリに保存で きます。これは短時間に連続する多数の 高速パルスを捕捉したり（トリガの繰り 返し時間が最も重要な場合）、長時間に 時折発生するイベントの捕捉（最長捕捉 時間が最も重要な場合）に理想的です。シーケンス・モードでは、4チャンネルを同時に捕捉して、捕捉を実行するたび にタイムスタンプ（1nsの分解能）が付きます。デッド・タイムが最小限に抑え られ（1μs）、セグメント化され た捕捉データは様々な方法で表示および 解析できます。シーケンス・モードと高度なトリガを組み合わせて希なイベントを分離し、数時間または数日単位ですべてのイベントを 捕捉してから、各イベントを表示および 解析します。
クリックで詳細表示されます
コンプライアンス・テスト・パッケージ
シリアル・トリガ＆デコード
ミックスド・シグナル・ソリューション
ミックスド・シグナル・アクセサリ
ジッタ解析パッケージ
その他、汎用ソフトウエア
データストレージ解析
電源解析
デジタル・フィルタ・パッケージ
その他
クリックで詳細表示されます
