New flagship analyzer with full, simultaneous capture of 880 MHz of Bluetooth bandwidth across both the 2.4 GHz and 5/6 GHz bands.

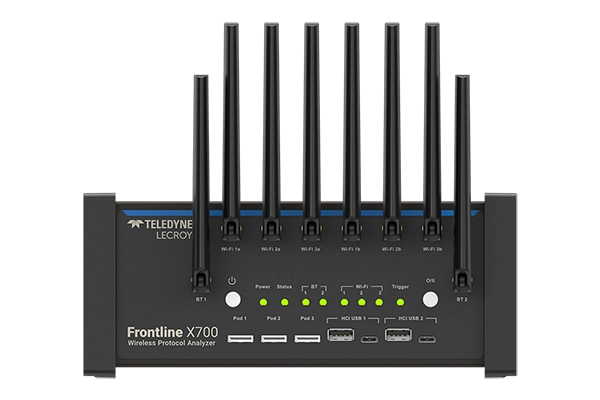

Teledyne LeCroy’s Frontline X700 Wireless Protocol Analyzer is the industry's most advanced one-box test solution for wireless product development. The X700 captures Bluetooth in 2.4/5/6 GHz frequency bands simultaneously so you can debug without missing packets. The unique Wi-Fi 7 tri-band feature allows capture of three Wi-Fi channels on any three bands for multi-link operation (MLO) testing. Supporting decodes for the latest Matter, Thread, Zigbee and wired technologies, the X700 delivers unparalleled capture performance in complex multi-technology environments.
Simplify Next Generation Bluetooth Validation Across All Frequency Bands – The Frontline X700 makes next generation Bluetooth testing straightforward across every supported band. By extending analysis into the higher 5 GHz and 6 GHz ranges, it gives developers and QA teams the visibility they need to evaluate emerging Bluetooth features and new higher band use cases.
With full spectrum coverage across the 2.4 GHz ISM band and the 5/6 GHz UNII 1/3/4/5 bands, the X700 captures the entire 880 MHz of Bluetooth bandwidth at once—providing precise, time aligned insight into performance, latency, coexistence, and interoperability. Advanced RF metrics, synchronized correlation, and deep packet analysis deliver the clarity required to validate next generation Bluetooth capabilities and ensure reliable operation in increasingly complex RF environments.
See and Solve Interference Faster – As Bluetooth moves into higher-frequency operation alongside Wi-Fi 7, the 5/6 GHz spectrum is becoming increasingly crowded. Support for Wi-Fi 7 with MLO (802.11be, 2×2 MU MIMO), Wi-Fi 6/6E (802.11ax, 2×2 MU MIMO), and all legacy Wi-Fi standards enables comprehensive coexistence analysis alongside time synchronized Bluetooth, giving engineers a unified view of frequency hopping, MLO behavior, and real-time traffic interactions—exposing coexistence issues that single-protocol tools routinely miss.
The built in Wi-Fi Scanner automatically configures channel and bandwidth settings for faster setup, while packet truncation options reduce Wi-Fi capture volume without impacting advanced analysis such as throughput, channel utilization, and coexistence testing. Together, these capabilities remove blind spots, accelerate root cause analysis, and deliver a unified understanding of system level behavior.
Eliminate Visibility Gaps in Multi Protocol Wireless Systems – Gain a complete, time aligned view of every interaction in today’s increasingly complex wireless environments. The X700 captures Bluetooth traffic simultaneously across the 2.4 GHz and 5/6 GHz bands—alongside Wi-Fi 7, 802.15.4, and multiple wired interfaces—to deliver true 360 degree visibility into multi protocol system behavior.
With support for capturing up to three Wi-Fi channels at once, engineers can easily follow roaming events, AP handoffs, and dynamic channel changes in real time. Live raw spectrum visualization across the 2.4, 5, and 6 GHz bands accelerates troubleshooting by quickly exposing RF conflicts, interference sources, and coexistence issues that degrade performance. By unifying RF, protocol, and behavioral insights into a single synchronized view, the X700 removes blind spots and enables faster, more accurate system level debugging and validation.
Expose Hidden Issues Across RF, Host, and Audio Domains – Gain complete end-to-end visibility into every layer of your wireless system. Support for up to 24 logic channels—combined with simultaneous decoding of HCI over USB, SPI, and UART (H4/H5/BCSP/WCI-2), plus Audio I2S interfaces—lets you correlate RF activity with host controller traffic, firmware behavior, and audio signal paths in a single, unified workflow.
This cross-domain insight makes it easier to uncover timing issues, protocol violations, audio glitches, and integration defects that are otherwise impossible to isolate using RF analysis alone. Engineers can quickly pinpoint root causes, reduce debug cycles, and validate complex Bluetooth, audio, and multi-radio systems with far greater confidence and accuracy.
Eliminate Guesswork in Challenging RF Environments – Achieve consistent, high quality captures even in the most demanding RF conditions. Manual and automatic RF Gain Control work together to optimize signal quality whether you’re operating in noisy, interference heavy labs or highly controlled shielded chambers. This adaptability removes guesswork, reduces time spent fine tuning RF settings, and ensures accurate visibility across Bluetooth, Wi-Fi, and 802.15.4 traffic. Engineers can trust the analyzer to maintain stable performance, preserve critical signal details, and deliver reliable results across a wide range of real world environments—ideal for device bring up, coexistence testing, and complex multi radio validation.
Accelerate Automated Testing with Full API Control – Robust, full-stack API control for configuration, capture, analysis, and export—reduces manual effort and accelerates automated workflows. Teams can integrate seamlessly with CI systems, scale large regression suites, and ensure consistent, repeatable validation across Bluetooth, Wi-Fi, and 802.15.4 test scenarios. Automation delivers faster time to results, improved reliability through deterministic, script-driven processing, and higher overall test coverage with minimal engineering overhead. The solution is designed for scalable lab environments—including multi-DUT testbeds and high-volume regression pipelines—and supports flexible scripting in Python and other common languages, making it easy to integrate into Jenkins, GitLab CI, Azure DevOps, or custom automation frameworks.
Teledyne LeCroy’s Wireless Protocol Suite combines Frontline’s decades of protocol analysis experience and up-to-the moment spec support with a streamlined interface, bringing all analysis tools into a single dockable framework that can be customized to your own preferred way of working and evaluating information. When paired with Teledyne LeCroy’s uniquely portable and configurable family of wireless protocol analyzers, the Wireless Protocol Suite delivers a world class software experience to anyone working with technologies that utilize the 2.4GHz ISM band.
Learn more about the Wireless Protocol Suite software and how it can help you work more efficiently as you design, develop, and troubleshoot your devices.
