Testing 10Mbps up to 10GbE Ethernet

• Seven versions
• Can test 10/100Mbps up to 10GbE
• Extensive software package including XenaManager, test suites for RFC2544, RFC2889 and RFC3918 and XOA, our Python-based open-source automation framework

There are seven Z01 and Z10 Odin traffic generators:

• Z10sx Odin – has 6 ports and can test six speeds up to 10GbE (10M/100M/1G/ 2,5G/5G/10G Copper - specific transceivers required)

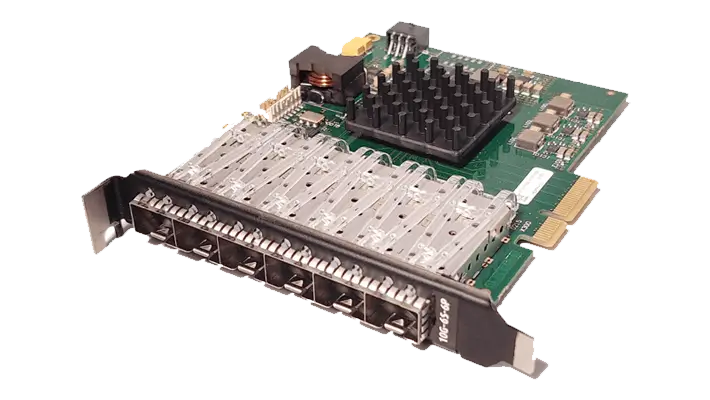

• Z10s Odin – has 6 ports that can test 10GbE (BASE-SR / LR / DAC)

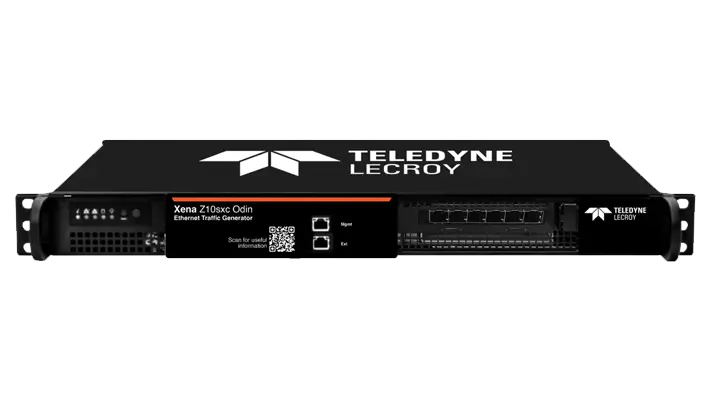

• Z10cc Odin – available only in our fixed 1U compact chassis, this version of Odin has 2 x 10GbE ports (BASE SR / LR / DAC ) and 4 x 1GbE ports (100M / 1GbE optical or 10M / 100M / 1G Base-T)
• Z10r Odin – has 6 ports with RJ45 interfaces for testing 100M / 1G / 2,5G / 5G / 10G Base-T copper
• Z01s Odin – has 6 ports for testing 10/100Mbps and 1G
• Z01sx Odin – this is an enhanced version of the Z01s Odin that offers 256 transmit streams (instead of 32), 6 modifiers per stream (instead of 2) and support for Priority Flow Control.
• Z01t Odin – has 6-ports and is designed specifically for testing Automotive Ethernet ECUs

Managing the Z01 and Z10 Odin traffic generators is done via XenaManager, the intuitive multi-user management software for generating and analyzing traffic on all Teledyne LeCroy Xena modules.

Renowned for its ease-of-use, XenaManager makes it quick and easy to do performance, QA, functional and benchmark testing.

Xena OpenAutomation (XOA) – our open-source scripting and automation framework – is also included to help automate any available command to the system, with tailored tests, scripting and standardized test methodologies.

Plus, there are standalone applications for testing RFC2544, RFC2889, RFC3918 and Y.1564.
