FlowScannerQL

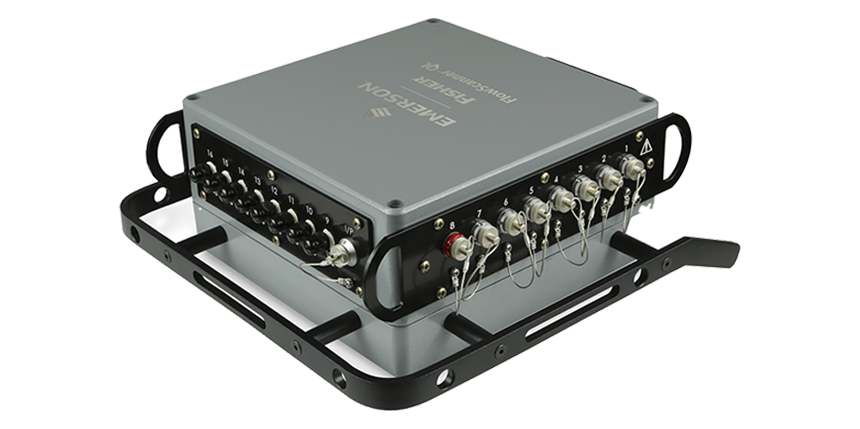

The FlowScannerQL Valve Diagnostic System consists of the FlowScannerQL hardware unit ("FlowScannerQL") and a separate computer or laptop running the QUIKLOOK FS software. The FlowScannerQL is a dedicated, modular data acquisition system which gathers signal information from up to 16 sensors and transducers at a time, both external and internal, for testing of motor-operated valves, air-operated valves, check valves or solenoid valves.

The QUIKLOOK FS software communicates with the FlowScannerQL and operates as the user interface for the FlowScannerQL. The FlowScannerQL and computer communicate via either a wired Ethernet or WiFi connection.

The powerful, flexible QUIKLOOK-FS software platform provides a variety of diagnostic tools and time-saving features for the FlowScannerQL. Capable of testing MOVs and AOVs, common features include start and stop triggers enabling unattended operation; data acquisition rates up to 50,000 samples per second; and data acquisition integrated with Windows-based analysis software.

• "Next Generation" Emerson FlowScanner Valve Diagnostic system
• Merge of proven Emerson FlowScanner technology and Teledyne QUIKLOOK technology
• MOV / AOV / Check and Solenoid valve capable

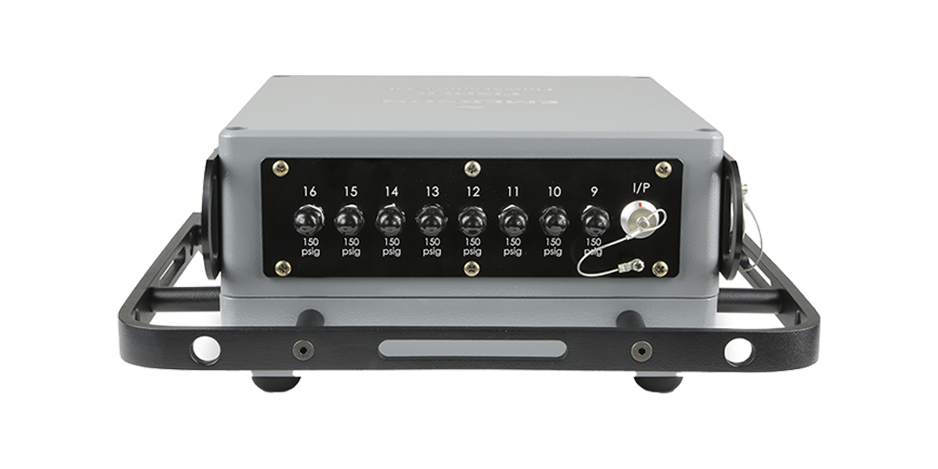

• Integrated pressure sensors for convenient AOV testing
• Plug and Play sensor recognition
• Sealed rugged waterproof case
• Wired or Wireless ethernet connection to laptop computer

Analysis

• Automarking of traces
• Average running loads, lights and stroke times
• Stem Factor and COF calculations
• Analysis of motor power phasing with sensor self-correction feature
• Calculated channels are recalculated when the dependent channel is revised
• FFT may be performed on a trending plot
• Unlimited number of math channels
• Delta Y Function
• Spike Removal

Configuration

• Channel configuration is automatically loaded through sensor recognition technology
• Up to 14 channels may be configured for acquisition as strain gage, single ended or differential
• Up to 2 channels may be configured for digital inputs
• Channel configuration includes sensor details such as calibration information
• RMS, filter, and motor power channels may be predefined
• C-Clamp sensitivity calculator, Pretension Screen, warning if pretension is lost
• Warning for out-of-cal sensors

Plots

• No limit to the number of traces that can be plotted in a pane; up to 6 panes may be displayed on the screen at once
• Panes are independently resizable
• Plot annotations available: data point values, text and footnotes
• Markers shown on trending plots: none, all, or currently-selected test only
• XY plotting
• Can display markers on XY plots
• Plot preference controls: color/background, maximum number of points, default title, legend style and channel unit groups
• Customized plots can be saved or exported in .pdf format
• FFT Y-axis scaling may be logarithmic or linear; additional resolution choices available
