Overview

The next generation nuclear diagnostic testing will help the industry move forward toward condition-based monitoring instead of the previous time-based monitoring. The 2-valve QL-SENTRY is configured to continuously monitor Torque, Thrust, Motor Current, and light/switch current on seven analog input channels per valve. The system can be powered externally from a DC source, AC/DC adapter, or power over ethernet (PoE).

Key Features

  • Independently monitors up to two MOV’s on each QL-SENTRY (7 analog input CH’s per valve)
  • Unattended data acquisition for unlimited time periods
  • Automatically records all valve strokes
  • Variable trigger levels
  • Ethernet or wireless communication for downloads to laptop or plant network for local or remote operation
  • Power: 9-36VDC or Power over Ethernet (PoE)
  • NEMA Rated, compact and lightweight package

Highlights

  • GL 96-05 and BOP valves
  • Reduces at the valve manned testing
  • Reduce number of workorders for
    • scaffolding
    • MOV testing
    • clearance orders
    • walkdowns
  • Decrease supplemental workers during outages
  • Reduce outage scope, saving time and money
  • Supports ALARA radiation safety principle

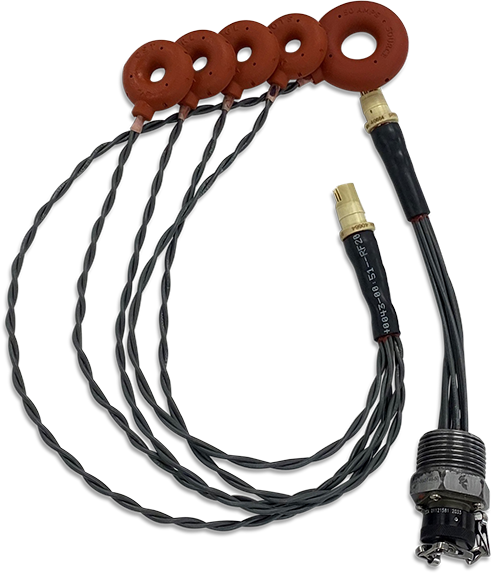

ct-asm

Specifications

Accuracy 1% of reading
Size 8" x 8" x 2.2"
Sample rate 1000 s/s
System weight 10 lbs
