Overview

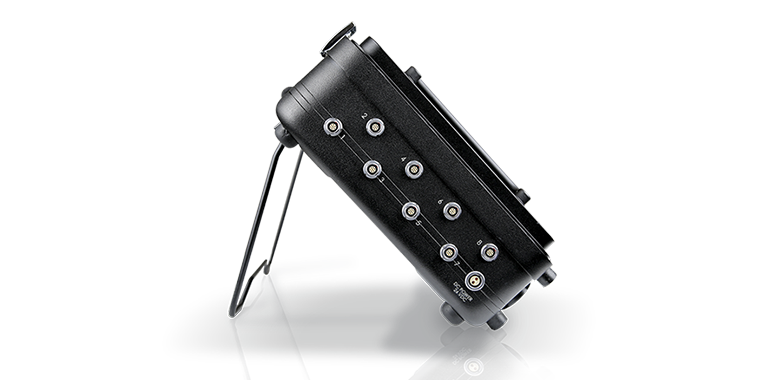

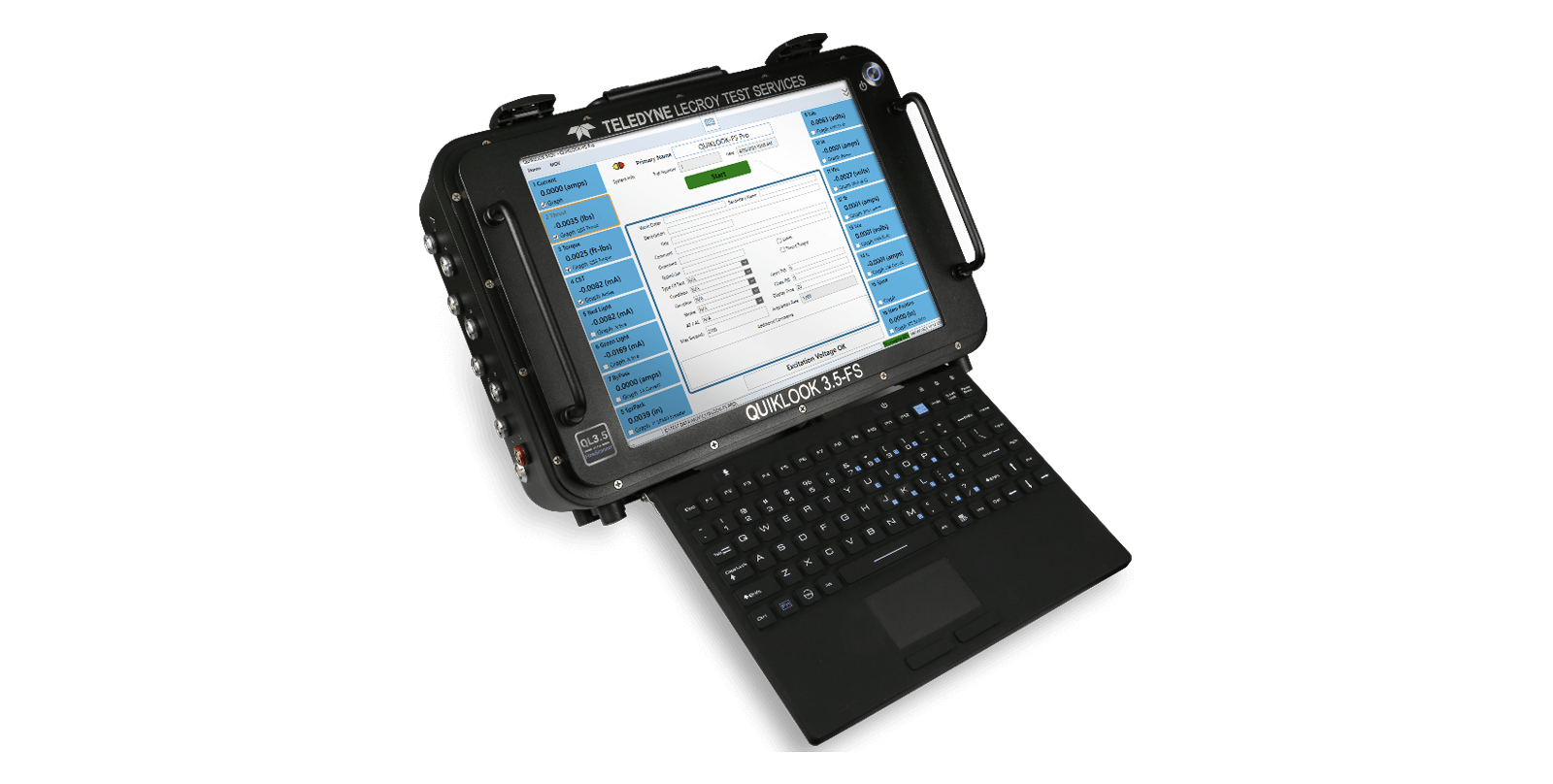

Capable of testing all types of valves, the QUIKLOOK 3.5-FS Valve Diagnostic System acquires clean and accurate data, minimizes setup time, and maximizes ALARA. The powerful, flexible QUIKLOOK FS Pro software provides a variety of diagnostic tools and time-saving features to simplify valve testing. Support for industry standard sensors as well as a large 15” touch screen, water-resistant keyboard and hot-swappable battery power provide convenient setup and easy operation. The QUIKLOOK 3.5-FS system features a modern design utilizing the Windows 10 operating system to accommodate our new QUIKLOOK FS Pro software.

Key Features

  • Plug and Play sensor recognition
  • Stand-alone test platform
  • No external PC required
  • Wireless remote operation via laptops, tablets and smartphones
  • Hot swappable battery operation
  • MOV/AOV/Check and solenoid valve capable
  • Automated remote excitation voltage sensing
  • Large 15" touch screen display
  • Sealed rugged waterproof case

Highlights

Analysis

  • Auto-marking of traces
  • Average running loads, lights and stroke times
  • Stem Factor and COF calculations
  • Analysis of motor power phasing with sensor self-correction feature
  • Calculated channels are recalculated when the dependent channel is revised
  • FFT may be performed on a trending plot
  • Unlimited number of math channels
  • Delta Y function
  • Spike Removal

Configuration

  • Channel configuration is automatically loaded through sensor recognition technology
  • 14 analog input channels may be configured for strain gage, single ended or differential
  • 2 digital channels for linear and rotary displacement encoders
  • Channel configuration includes sensor details such as calibration information
  • RMS, filter, and motor power channels may be predefined
  • QSS and C-Clamp sensitivity calculator with pretension warning
  • Warning for out-of-cal sensors
  • Auto-detection of over-ranged sensors to identify clipped test data

Plots

  • Up to 6 plots can be shown on a single tab at once. Up to 12 plot tabs can be opened simultaneously.
  • Plots are independently resizable
  • Plot annotations available: data point values, text and footnotes
  • Markers shown on trending plots: none, all, or currently-selected test only
  • XY plotting including markers
  • Plot preference controls: color/background, maximum number of points, default title, legend style and channel unit groups
  • Customized plots can be saved or exported in .pdf format
  • FFT Y-axis scaling may be logarithmic or linear; additional resolution choices available
  • Marker filtering

Specifications

Input Channels (14) User Programmable with Excitation Voltage Sensing, (2) Digital
Input Range Differential & Single Ended: ten ranges from ±10 mV to ±10 V, Strain Gage ±1, 2, 4, & 10 mV/V
Sensor Excitation 10 V on all input channels, 100 mA max current per channel, 250 mA max per channel bank
System Accuracy Analog Inputs: 1% reading, I/P Output: 1% of level, Excitation: 0.1% of level, Digital: ±1/2 count (2 Quad Counts)
Sample Rate 10, 50, 100, 1k, 2k, 5k, 10k, 20k, 50k samples/sec
Analog Output Channels (1) Selectable, 0–24 mA, 0–55 mA
Input Power 110/220 VAC (50/60 Hz), 9 watts
Battery Operation (2) Hot Swappable Lithium-Ion, up to 5 hours continuous operation
Sensor Recognition IEEE P1451.4/2.0 “TEDS” plug and play on all input channels
Operating System Windows® 10 Pro
Ports (3) USB, (1) Ethernet
Languages English, French, and Spanish
Maximum Operating Temperature 125° F (52° C)
Application Software QUIKLOOK FS Pro 2022.356 or later
Size 16.5” x 11.25” x 5.67“
Weight 16 lbs. (without cover, keyboard, and batteries), 18 lbs. (without cover and keyboard)
