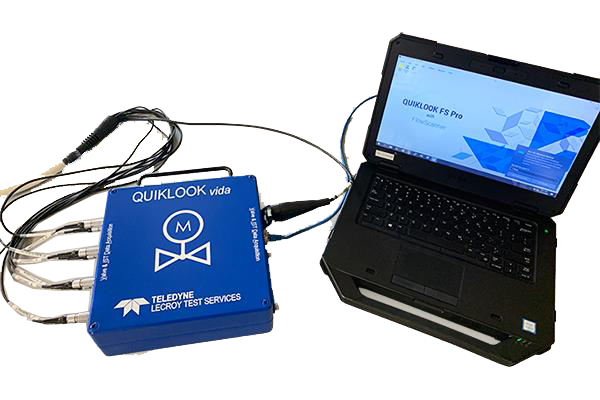

The QUIKLOOK vida (Valve & IST Data Acquisition) is a compact, lower cost 8-channel data acquisition system configured for either MOV, AOV or Check / Solenoid Valve Testing. The QUIKLOOK vida requires a laptop running the QUIKLOOK FS Pro software and an ethernet cable to operate.
| Input Channels | (7) User Programmable with Excitation Voltage Sensing, (1) Digital input for quadrature Travel Transducers |
| Input Range | Differential & Single Ended: ten ranges from ±10mV to ±10V, Strain Gage ±1, 2, 4, 10mV/V |
| Sensor Excitation | 10 V on all input channels, 100 mA max current per channel, 250 mA max per channel bank |
| System Accuracy | Analog Inputs: 1% reading I/P Output: 1% of level Excitation: 0.1% of level Digital: ±1/2 count (2 Quad Counts) |
| Sample Rate | (default) MOV: 1000 s/s, AOV: 50 s/s, CHK: 50,000 s/s |
| Analog Output Channels (AOV version only) | (1) Selectable, 0–24 mA, 0–55 mA |
| Sensor Recognition | IEEE P1451.4/2.0 “TEDS” plug and play on all input channels |
| Input Power | 110/220 VAC (50/60 Hz), typical 18 watts |
| Battery Operation | (1) Lithium-Ion Battery with Charge Indicator, 5+ hours of continuous operation. Battery is externally charged. |
| Maximum Operating Temperature | -20°C to 60°C |
| Enclosure | Aluminum, IP54 Waterproof Rating |
| Size | 9.5“ x 9.5” x 3.2” |
| Weight | 10 pounds with battery installed |
