SDA 8Zi-Bシリーズ
シリアル･データ･アナライザSDA 8Zi-Bは、デジタル・オシロスコープWaveMaster 8Zi-Bシリーズをベースとした製品で、シリアルデータ解析ツールSDAⅡでは、たくさんのユニットインターバルを取り込み、Eyeを高速に表示することができます。最大3.125Gb/sの速度で最大80ビットのパターンに対してトリガをかけることができます。 コンプライアンステストやアイ・パターンでのデバッグのためだけでなく、SDA
8Zi-Bシリーズはあらゆる場面でマスターツールとして活用できます。

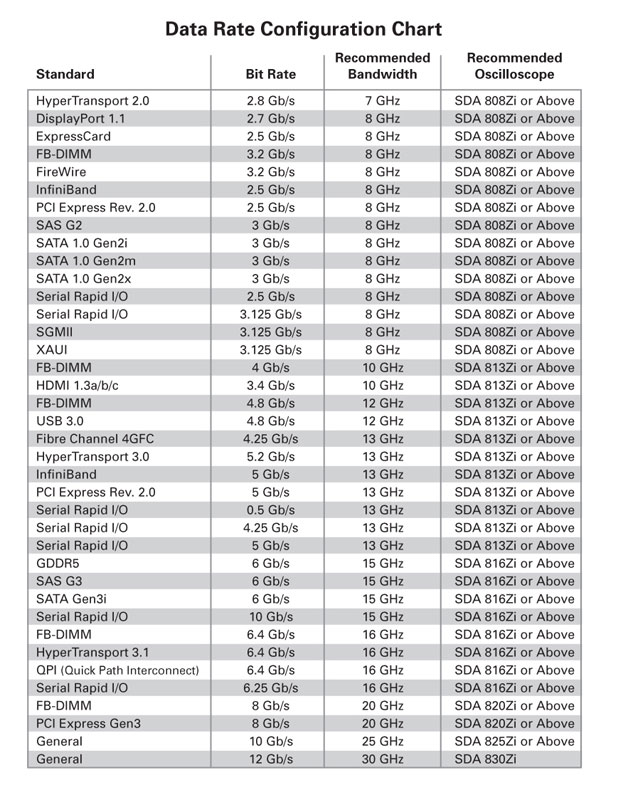

基本仕様
| モデル名 |
帯域 |
サンプリング速度
4ch時（2ch時） |
標準メモリ |
| SDA 804Zi-B |
4GHz |
40GS/s （80GS/s*） |
64Mポイント |
| SDA 806Zi-B |
6GHz |
40GS/s （80GS/s*） |
64Mポイント |
| SDA 808Zi-B |
8GHz |
40GS/s （80GS/s*） |
64Mポイント |
| SDA 813Zi-B |
13GHz |
40GS/s （80GS/s*） |
64Mポイント |
| SDA 816Zi-B |
16GHz |
40GS/s （80GS/s） |
64Mポイント |
| SDA 820Zi-B |
20GHz |
40GS/s （80GS/s） |
64Mポイント |
SDA 825Zi-B
販売終了
|
25GHz |
40GS/s （80GS/s） |
64Mポイント |
SDA 830Zi-B
販売終了
|
30GHz |
40GS/s （80GS/s） |
64Mポイント |
|
* インターリーブオプションWM8Zi-2X80GSが必要
|
モデルごとスペック詳細（モデル名をクリックで詳細表示されます）
 SDA 804 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 4 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 4 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 95 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 71 ps
(flatness mode) | | Input Channels | 4 (Any combination of ProLink and ProBus inputs) | | Bandwidth Limiters | 20 MHz, 200 MHz, 1 GHz | | Input Impedance | ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
(For any two ProLink input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div | | Offset Accuracy | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜500fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s
(80 GS/s on 2 Ch using optional WM8Zi-2X80GS External Interleaving Device) | | Random Interleaved Sampling (RIS) | 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 64 M / 64 M / 64 M
(Memory and Sample Rate can be doubled in 1 or 2 Ch mode with use of WM8Zi-2X80GS External Interleaving Device)
(15000) | Memory Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments) | L-128 Option:
128M / 128M / 128M
(15,000)
VL-256 Option:
256M / 256M / 256M
(15,000)
Note: On all memory options, WM8Zi-2X80GS External Interleaving Device permits 80 GS/s on 1 or 2ch with twice the memory) | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | Not Applicable | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 4 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 40 GS/s (80 GS/s with optional WM8Zi-2X80GS external interleaving device) | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (4) ÷10 Passive Probes | | Probe System | Probus and ProLink. Automatically detects and supports a variety of compatible probes | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 975 W / 975 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 51.5 lbs. (23.4 kg) | | Shipping Weight | 70.0 lbs. (31.8 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 806 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 6 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 6 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 63 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 47 ps
(flatness mode) | | Input Channels | 4 (Any combination of ProLink and ProBus inputs) | | Bandwidth Limiters | 20 MHz, 200 MHz, 1 GHz, 4 GHz | | Input Impedance | ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
(For any two ProLink input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div | | Offset Accuracy | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜450fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s
(80 GS/s on 2 Ch using optional WM8Zi-2X80GS External Interleaving Device) | | Random Interleaved Sampling (RIS) | 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 64 M / 64 M / 64 M
(Memory and Sample Rate can be doubled in 1 or 2 Ch mode with use of WM8Zi-2X80GS External Interleaving Device)
(15000) | Memory Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments) | L-128 Option:
128M / 128M / 128M
(15,000)
VL-256 Option:
256M / 256M / 256M
(15,000)
Note: On all memory options, WM8Zi-2X80GS External Interleaving Device permits 80 GS/s on 1 or 2ch with twice the memory) | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | Not Applicable | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 6 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 40 GS/s (80 GS/s with optional WM8Zi-2X80GS external interleaving device) | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (4) ÷10 Passive Probes | | Probe System | Probus and ProLink. Automatically detects and supports a variety of compatible probes | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 975 W / 975 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 51.5 lbs. (23.4 kg) | | Shipping Weight | 70.0 lbs. (31.8 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 808 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 8 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 8 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 49 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 37 ps
(flatness mode) | | Input Channels | 4 (Any combination of ProLink and ProBus inputs) | | Bandwidth Limiters | 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz | | Input Impedance | ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
(For any two ProLink input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div | | Offset Accuracy | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜425fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s
(80 GS/s on 2 Ch using optional WM8Zi-2X80GS External Interleaving Device) | | Random Interleaved Sampling (RIS) | 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 64 M / 64 M / 64 M
(Memory and Sample Rate can be doubled in 1 or 2 Ch mode with use of WM8Zi-2X80GS External Interleaving Device)
(15000) | Memory Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments) | L-128 Option:
128M / 128M / 128M
(15,000)
VL-256 Option:
256M / 256M / 256M
(15,000)
Note: On all memory options, WM8Zi-2X80GS External Interleaving Device permits 80 GS/s on 1 or 2ch with twice the memory) | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | Not Applicable | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 8 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 40 GS/s (80 GS/s with optional WM8Zi-2X80GS external interleaving device) | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (4) ÷10 Passive Probes | | Probe System | Probus and ProLink. Automatically detects and supports a variety of compatible probes | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 975 W / 975 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 51.5 lbs. (23.4 kg) | | Shipping Weight | 70.0 lbs. (31.8 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 813 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 13 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 13 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 32.5 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 24.5 ps
(flatness mode) | | Input Channels | 4 (Any combination of ProLink and ProBus inputs) | | Bandwidth Limiters | 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz | | Input Impedance | ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
(For any two ProLink input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div | | Offset Accuracy | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜325fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s
(80 GS/s on 2 Ch using optional WM8Zi-2X80GS External Interleaving Device) | | Random Interleaved Sampling (RIS) | 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 64 M / 64 M / 64 M
(Memory and Sample Rate can be doubled in 1 or 2 Ch mode with use of WM8Zi-2X80GS External Interleaving Device)
(15000) | Memory Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments) | L-128 Option:
128M / 128M / 128M
(15,000)
VL-256 Option:
256M / 256M / 256M
(15,000)
Note: On all memory options, WM8Zi-2X80GS External Interleaving Device permits 80 GS/s on 1 or 2ch with twice the memory) | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | Not Applicable | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 13 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 40 GS/s (80 GS/s with optional WM8Zi-2X80GS external interleaving device) | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (4) ÷10 Passive Probes | | Probe System | Probus and ProLink. Automatically detects and supports a variety of compatible probes | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 975 W / 975 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 51.5 lbs. (23.4 kg) | | Shipping Weight | 70.0 lbs. (31.8 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 816 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 16 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 16 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 28.5 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 21.5 ps
(flatness mode) | | Input Channels | 4 (Any combination of ProLink and ProBus inputs) | | Bandwidth Limiters | 40 GS/s mode: 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz
80 GS/s Mode: 13 GHz | | Input Impedance | ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
(For any two ProLink input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (ProLink): At 40 GS/s: 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
At 80 GS/s: 2 mV-500mV/div, fully variable (2-19.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div | | Offset Accuracy | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | At 80 GS/s: Real-Time Mode, 20 ps/div - 640 μs/div, depending on memory length
At 40 GS/s and below: 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜300fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s on 4 Ch
80 GS/s on 2 Ch | | Random Interleaved Sampling (RIS) | 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | Not Applicable | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 15 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only
(Note: Channel 3 input will capture signal for triggering when oscilloscope is in 80 GS/s mode | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 80 GS/s | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (4) ÷10 Passive Probes | | Probe System | Probus and ProLink. Automatically detects and supports a variety of compatible probes | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 975 W / 975 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 51.5 lbs. (23.4 kg) | | Shipping Weight | 70.0 lbs. (31.8 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 820 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 20 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 20 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 22 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 16.5 ps
(flatness mode) | | Input Channels | 4 (Any combination of ProLink and ProBus inputs) | | Bandwidth Limiters | 40 GS/s mode: 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz, 16 GHz
80 GS/s Mode: 13 GHz, 16 GHz | | Input Impedance | ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
(For any two ProLink input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (ProLink): At 40 GS/s: 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
At 80 GS/s: 2 mV-500mV/div, fully variable (2-19.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div | | Offset Accuracy | 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | At 80 GS/s: Real-Time Mode, 20 ps/div - 640 μs/div, depending on memory length
At 40 GS/s and below: 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜250fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s on 4 Ch
80 GS/s on 2 Ch | | Random Interleaved Sampling (RIS) | 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | Not Applicable | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 15 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only
(Note: Channel 3 input will capture signal for triggering when oscilloscope is in 80 GS/s mode | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 80 GS/s | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (4) ÷10 Passive Probes | | Probe System | Probus and ProLink. Automatically detects and supports a variety of compatible probes | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 975 W / 975 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 51.5 lbs. (23.4 kg) | | Shipping Weight | 70.0 lbs. (31.8 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 825 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 25 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (2.4/2.92mm Inputs) | 25 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 20 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 17.5 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 13 ps
(flatness mode) | | Input Channels | 4 (Any combination of 20 GHz ProLink inputs or 3.5 GHz ProBus inputs),
3 (1 @ full BW, 2 with ProLink or ProBus inputs), or
2 (@ full BW) | | Bandwidth Limiters | For ≦20 GHz Mode: 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz, 16 GHz
For ＞20 GHz Mode: 20 GHz | | Input Impedance | 2.92mm Inputs: 50 Ω+/-2% for ≦79 mV/div, 50 Ω+/-3% for ＞79 mV/div
ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | 2.92 mm Inputs: 50 Ω: DC, GND
ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 2.92 mm Inputs: ±2 [email protected]≦79mV/div, [email protected]＞79mV/div
50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
20 GHz to Max BW: 30 dB (＞32:1)
(For any two ProLink or 2.92mm input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (2.92 mm): 10 mV-500 mV/div, fully variable
50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable
1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (2.92 mm):
±500 mV @ 10-79 mV/div
±4 V @ 80 mV/div -500 mV/div
50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-128 mV/div
±10V @ 130mV-1.28V/div
±100V @ 1.3V-10V/div | | Offset Accuracy | 50 Ω (2.92 mm): 10 mV-500 mV/div, fully variable
50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable
1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | For ≧25 GHz Mode: Real-Time Mode, 20 ps/div - 640 μs/div, depending on memory length
For ≦20 GHz Mode: 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜250fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s on 4 Ch
(80 GS/s on 2 Ch when operated in ≧25 GHz Mode) | | Random Interleaved Sampling (RIS) | For ≧25 GHz Mode: Not Available
For ＜25 GHz Mode: 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 128 M / 128 M / 128 M
(In ＜20 GHz Modes, reference memory specification for SDA 813Zi-B)
(1000) | Memory Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments) | L-128 Option:
256M / 256M / 256M
(15,000)
VL-256 Option:
512M / 512M / 512M
(15,000)
(In ≦20 GHz Modes, reference memory specification for SDA 813Zi-B) | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | 3 div @ ＜ 15 GHz
1.5 div @ ＜ 3 GHz
1.0 div @ ＜ 200 MHz
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 15 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only
(Note: Channel 3 input will capture signal for triggering when oscilloscope is in ≧25 GHz mode) | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 80 GS/s | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (2) ÷10 Passive Probes | | Probe System | Probus, ProLink, and 2.4/2.92mm. Automatically detects and supports a variety of compatible probes. | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 1025 W / 1025 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 58 lbs. (26.4 kg) | | Shipping Weight | 76.0 lbs. (34.5 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
SDA 830 Zi-B スペック
Vertical System | | Analog Bandwidth (Max) | 30 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (2.4/2.92mm Inputs) | 30 GHz | | Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) | 20 GHz
(≧10 mV/div) | | Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 3.5 GHz
(≧10 mV/div) | | Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical, ≧2 mV/div) | | Rise Time (10-90%, 50 Ω) | 15.5 ps
(test limit, flatness mode) | | Rise Time (20-80%, 50 Ω) | 11.5 ps
(flatness mode) | | Input Channels | 4 (Any combination of 20 GHz ProLink inputs or 3.5 GHz ProBus inputs),
3 (1 @ full BW, 2 with ProLink or ProBus inputs), or
2 (@ full BW) | | Bandwidth Limiters | For ≦20 GHz Mode: 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz, 16 GHz
For ＞20 GHz Mode: 20 GHz, 25 GHz | | Input Impedance | 2.92mm Inputs: 50 Ω+/-2% for ≦79 mV/div, 50 Ω+/-3% for ＞79 mV/div
ProLink Inputs: 50 Ω+/-2% for ≦100 mV/div, 50 Ω+/-3% for ＞100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe | | Input Coupling | 2.92 mm Inputs: 50 Ω: DC, GND
ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND | | Maximum Input Voltage | 2.92 mm Inputs: ±2 [email protected]≦79mV/div, [email protected]＞79mV/div
50 Ω (ProLink): ±2 [email protected]≦100mV/div, [email protected]＞100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: ＜ 10 kHz + DC) | | Channel-Channel Isolation | DC to 10 GHz: 50 dB (＞315:1)
10 to 15 GHz: 46 dB (＞200:1)
15 to 20 GHz: 40 dB (＞100:1)
20 GHz to Max BW: 30 dB (＞32:1)
(For any two ProLink or 2.92mm input channels, same or different v/div settings, typical) | | Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) | | Sensitivity | 50 Ω (2.92 mm): 10 mV-500 mV/div, fully variable
50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable
1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V | | Offset Range | 50 Ω (2.92 mm):
±500 mV @ 10-79 mV/div
±4 V @ 80 mV/div -500 mV/div
50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ ＞100 mV/div -1 V/div
1 MΩ:
±1V @ 2-128 mV/div
±10V @ 130mV-1.28V/div
±100V @ 1.3V-10V/div | | Offset Accuracy | 50 Ω (2.92 mm): 10 mV-500 mV/div, fully variable
50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable
1 MΩ (ProBus): 2 mV-10 V/div, fully variable | | DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) | | | Horizontal System | | Timebases | Internal timebase common to 4 input channels | | Time/Division Range | For ≧25 GHz Mode: Real-Time Mode, 20 ps/div - 640 μs/div, depending on memory length
For ≦20 GHz Mode: 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≦10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≧100 ms/div and ≦5 MS/s), depending on memory length | | Clock Accuracy | ＜ 1 ppm + (aging of 0.5ppm/yr from last calibration) | | Sample Clock Jitter | up to 10μs Acquired Time Range:
100fsrms (Internal Timebase Reference)
up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference) | | Delta Time Measurement Accuracy | √2*√((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) (RMS)+(clock accuracy*reading)(seconds) | | Jitter Measurement Floor | √((Noise/SlewRate)^2+(Sample Clock Jitter)^2 ) secondsrms (TIE) | | Jitter Between Channels | ＜250fsrms
(TIE, typical, measured at maximum bandwidth) | | Trigger and Interpolator Jitter | ＜0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware), | | Channel-Channel Deskew Range | ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel | | External Timebase Reference (Input) | 10 MHz; 50 Ω impedance, applied at the rear input | | External Timebase Reference (Output) | 10 MHz; 50 Ω impedance, output at the rear | | | Acquisition System | | Single-Shot Sample Rate/Ch | 40 GS/s on 4 Ch
(80 GS/s on 2 Ch when operated in ≧25 GHz Mode) | | Random Interleaved Sampling (RIS) | For ≧25 GHz Mode: Not Available
For ＜25 GHz Mode: 200 GS/s for repetitive signals (20 ps/div to 10 ns/div) | | Maximum Trigger Rate | 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels) | | Intersegment Time | 1 μs | | Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments) | 128 M / 128 M / 128 M
(In ＜20 GHz Modes, reference memory specification for SDA 813Zi-B)
(1000) | Memory Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments) | L-128 Option:
256M / 256M / 256M
(15,000)
VL-256 Option:
512M / 512M / 512M
(15,000)
(In ≦20 GHz Modes, reference memory specification for SDA 813Zi-B) | | | Acquisition Processing | | Averaging | Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps | | Enhanced Resolution (ERES) | From 8.5 to 11 bits vertical resolution | | Envelope (Extrema) | Envelope, floor, or roof for up to 1 million sweeps | | Interpolation | Linear or Sin x/x | | | Triggering System | | Modes | Normal, Auto, Single, and Stop | | Sources | Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger) | | Coupling Mode | DC, AC, HFRej, LFRej | | Pre-trigger Delay | 0-100% of memory size (adjustable in 1% increments of 100 ns) | | Post-trigger Delay | 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode | | Hold-off by Time or Events | From 2 ns up to 20 s or from 1 to 99,999,999 events | | Internal Trigger Range | ±4.1 div from center | | Trigger Sensitivity with Edge Trigger (1.85/2.4/2.92mm Inputs) | 3 div @ ＜ 15 GHz
1.5 div @ ＜ 3 GHz
1.0 div @ ＜ 200 MHz
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProBus Inputs | 2 div @ ＜ 3.5 GHz,
1.5 div @ ＜ 1.75 GHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling, ≧ 10 mV/div, 50 Ω) | | Trigger Sensitivity with Edge Trigger ProLink Inputs | 2 div @ ＜ 15 GHz,
1.5 div @ ＜ 3 GHz,
1.0 div @ ＜ 200 MHz,
(for DC, AC, LFRej coupling, ≧ 10 mV/div, 50 Ω) | | External Trigger Sensitivity, (Edge Trigger) | 2 div @ ＜ 1 GHz,
1.5 div @ ＜ 500 MHz,
1.0 div @ ＜ 200 MHz,
(for DC coupling) | | Max. Trigger Frequency, SMART Trigger | 2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps) | | External Trigger Input Range | Aux (±0.4 V); Aux/10 (±4 V) | | | Basic Triggers | | Edge | Triggers when signal meets slope (positive, negative, or either) and level condition. | | Window | Triggers when signal exits a window defined by adjustable thresholds | | TV-Composite Video | Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative). | | | SMART Triggers | | State or Edge Qualified | Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events. | | Qualified First | In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events. | | Dropout | Triggers if signal drops out for longer than selected time between 1 ns and 20 s. | | Pattern | Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern. | | | SMART Triggers with Exclusion Technology | | Glitch | Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Width (Signal or Pattern) | Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults. | | Interval (Signal or Pattern) | Triggers on intervals selectable between 1 ns and 20 s. | | Timeout (State/Edge Qualified) | Triggers on any source if a given state (or transition edge) has occurred on another source.
Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events. | | Runt | Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns. | | Slew Rate | Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns. | | Exclusion Triggering | Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met | | | Cascade (Sequence) Triggering | | Capability | Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event. | | Types | Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic) | | Holdoff | Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage. | | | High Speed Serial Protocol Triggering | | Data Rates | Option WM8Zi-6GBIT-80B-8B10B-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-8B10B-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only
(Note: Channel 3 input will capture signal for triggering when oscilloscope is in ≧25 GHz mode) | | Pattern Length | 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol | | Clock and Data Outputs | No Clock and Data Recovery outputs provided | | | Low Speed Serial Protocol Triggering (Optional) | | Optionally available | I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553 | | | Measurement Trigger | | Measurement Trigger Capability | Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger. | | | Color Waveform Display | | Type | Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen | | Resolution | WXGA; 1280 x 768 pixels. | | Number of traces | Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces. | | Grid Styles | Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y | | Waveform Representation | Sample dots joined, or sample dots only | | | Internal Waveform Memory | | Internal Waveform Memory | 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity. | | | Integrated Second Display | | Type | Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver) | | Resolution | Determined by display chosen by user | | | LeCroy WaveStream Fast Viewing Mode | | Intensity | 256 Intensity Levels, 1-100% adjustable via front panel control | | Types | Select analog or color-graded | | Number of Channels | up to 4 simultaneously | | Max Sampling Rate | 80 GS/s | | Persistence Aging | Select from 500 ms to Infinity | | Waveforms/second (continuous) | up to 2500 Waveforms/second | | Operation | Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF | | | Analog Persistence Display | | Analog and Color-Graded Persistence | Variable saturation levels; stores each trace's persistence data in memory | | Persistence Types | Select analog, color, or three-dimensional | | Trace Selection | Activate persistence on all or any combination of traces | | Persistence Aging | Select from 500 ms to infinity | | Sweep Display Modes | All accumulated, or all accumulated with last trace highlighted | | | High Speed Digitizer Output (Option) | | Type | LeCroy LSIB | | Transfer Rate | up to 325 MB/s (typical) | | Output Protocol | PCI Express, Gen 1 (4 lanes utilized for data transfer) | | Control Protocol | TCP/IP | | Command Set | Via Windows Automation, or via LeCroy Remote Command Set | | | Processor/CPU | | Type | Intel Core i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better) | | Processor Memory | 8 GB standard for STD memory (20 Mpt), S-32 and M-64 memory options
16 GB standard for L-128 and VL-256 memory options
Up to 32 GB optional | | Operating System | Microsoft WindowsR 7 Professional Edition (64-bit) | | Real Time Clock | Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks. | | | Zoom Expansion Traces | | Zoom Expansion Traces | Display up to 12 Zoom and 12 Math/Zoom traces | | | Setup Storage | | Front Panel and Instrument Status | Store to the internal hard drive, over the network, or to a USB-connected peripheral device. | | | Interface | | Remote Control | Via Windows Automation, or via LeCroy Remote Command Set | | Network Communication Standard | VXI-11 or VICP, LXI Class C (v1.2) Compliant | | GPIB Port | Supports IEEE - 488.2 | | LSIB Port (optional) | Supports PCIe Gen1 x4 protocol with LeCroy supplied API | | Ethernet Port | Supports 10/100/1000BaseT Ethernet interface (RJ45 port) | | USB Ports | 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices | | External Monitor Port | Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor. | | Peripheral Bus | LeCroy LBUS standard | | | Auxiliary Input | | Signal Types | For External Trigger Input | | Coupling | 50 Ω: DC; 1 MΩ: AC, DC, GND | | Max. Input Voltage | 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC ＜ 10 kHz + DC) | | | Auxiliary Output | | Signal Types | Select from calibrator, control signals or Off | | Output Signal | 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ) | | Control Signals | Trigger enabled, trigger out, pass/fail status, off | | Connector Type | BNC, located on front | | | Automatic Setup | | Auto Setup | Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals | | Find Vertical Scale | Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range | | | General | | Auto Calibration | Ensures specified DC and timing accuracy is maintained for 1 year minimum. | | | Probes | | Probes
| Qty. (2) ÷10 Passive Probes | | Probe System | Probus, ProLink, and 2.4/2.92mm. Automatically detects and supports a variety of compatible probes. | | Scale Factors | Automatically or manually selected depending on probe used | | Calibration Output | Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook. | | | Power Requirements | | Voltage | 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II | | Max. Power Consumption | 1025 W / 1025 VA | | | Environmental and Safety | | Temperature (Operating) | +5 °C to +40 °C | | Temperature (Non-Operating) | -20 °C to +60 °C | | Humidity (Operating) | 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C. | | Humidity (Non-Operating) | 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F | | Altitude (Operating) | Up to 10,000 ft. (3048 m) at or below +25 °C | | Altitude (Non-Operating) | Up to 40,000 ft. (12,192 m) | | Random Vibration (Operating) | 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Random Vibration (Non-Operating) | 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes | | Functional Shock | 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total | | | Physical Dimensions | | Dimensions (HWD) | 14"H x 18.4"W x 16"D (355 x 467 x 406 mm) | | Weight | 58 lbs. (26.4 kg) | | Shipping Weight | 76.0 lbs. (34.5 kg) | | | Certifications | | Certifications | CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12 | | | Warranty and Service | | Warranty and Service | 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services. | | |
ページトップへ
- 他社製品と比較して最高で50～100倍ものスピードでアイ・パターンを表示
- フル・メモリの波形から解析可能（メモリ長の制約無し）
- 見るだけのアイパターンから、解析できるアイパターンへ、ISO BER、
エラーロケータによる高度なデバッグ機能
- ISIプロット、Sync N-Cycleプロットによる、DDj（データ依存性ジッタ）の
完全分離機能。
SDA 8Ziデモビデオはこちら
シリアル・データ解析のためのトータル・ソリューション
SDA 8Zi-Bシリーズの強力なシリアル・データ解析機能を使用して設計の特性分析や検証を行えば、規格への準拠性が保証され、機器やホストがコンプライアンス・テストに合格しなかった原因を究明できます。SDA
8Zi-Bはコンプライアン・ステストはもとより、コンプライアンス・テストをパスできなかった原因の解明や、動作マージンの測定に威力を発揮します。SDA
8Zi-Bに搭載されているSDAIIIは、ジッタ解析に必要な様々な情報を１，２，３，４，６，８画面に分割して表示することができます。
表示される情報は、TIE、バスタブ・カーブ、アイ・パターン、ジッタ・ヒストグラム、ジッタ・スペクトラム、Q-Scale、Sync
N-Cycle、EYE Dr
IIなど多岐に渡ります。これらの情報はリアルタイムで変化し、自由に操作することがきるののは、数あるシリアルデータアナライザの中でもレクロイだけです。業界最高峰の信号解析エンジンX-StreamIIアーキテクチャにより、数あるシリアルデータアナライザと比べて最大で100倍もの圧倒的な解析スピードを実現するとともに、大半のシリアルデータアナライザは、ロングメモリの一部しか分析しておらず、ロングメモリを搭載する意味が薄れていますが、SDAIIはロングメモリの全てを解析できるためより深い洞察が可能です。
信号品質に問題がある場合、業界最高峰の解析ツールであるSDA
IIにより多種多様な分析が可能です。先進のジッタ分離機能と各種ブレイクダウンツールにより、信号品質の問題点を明確にすることができます。オプションのEYE
Doctor
II（Sパラメータ、シミュレーション機能）は、ケーブル、フィクスチャの影響の付加・除去、エンファシスの付加・除去、ISI補償用イコライザのエミュレーション（FFE/DFE）、コンプライアンステスト等に用いるCTLEのエミュレーションに対応しており、高速シリアルデータのTx～Rx間に生じる様々な問題点を簡単に再現することができます。このEYE
Doctor IIはSDA IIと連携して解析する事ができるため、ありとあらゆるシチュエーションに対応することができます。
ページトップへ
Automated Compliance Testing
QualiPHYコンプライアンステスト・パッケージは、煩雑なコンプライアンステストの操作を自動化するプラットフォームで、様々なアプリケーションに対応しています。QualiPHYは、ナビゲート機能とレポート生成機能に分かれており、ユーザーはナビゲート画面の指示に従うだけで簡単にコンプライアンステストを行うことができます。またリミットマネージャにより、独自規格のテストを行うことも可能です。
SDA II - 問題の検出と解析に役立つ高度なツール
フローチャート・GUI
ジッタ解析は様々な設定が必要なため、操作が煩雑になりがちですが、
SDA 8Zi-Bは信号の流れを意識したフローチャートをベースとしたGUIを採用しており、
アイパターン測定、ジッタ測定のメニューも各々独立しているるため、
直感的な操作性を実現しています。
シリアル・パターン・トリガ
WaveMaster8Zi-B及びSDA 8Ziシリーズは、ハードウェアのシリアル・パターン・トリガをオプションで準備しています。
6.5Gbps もしくは14.1 Gbps に対応した80ビットNRZ、8b/10bおよび64b/66bのシリアル・パターン・トリガにより、
NRZ信号のアイパターンやジッタなどの包括的な解析が行えます。
8b/10bデコーダー
レクロイの8b/10bシリアル・デコード・オプションには強力な検索機能があり、
捕捉した波形データの中からユーザが定義したシンボル・シーケンスを取り出すことができます。
マルチレーン解析では同時に捕捉した最高4個のレーンをデコードできます。プロトコルとして、PCIe、PCIe
2.0、SAS、SATA、XAUI、汎用8b10b、またはユーザ定義の8b10bを選択できます。
イコライザ・エミュレーション
ISI補償用のイコライザや、コンプライアンステスト等で用いるCTLEをエミュレーションすることができます。
このイコライザエミュレーション機能はオシロスコープの内部に完全に統合されており、
簡単に設定することができる上に、ジッタ解析機能と自由に組合わせることができます。
ページトップへ
ISIプロット
ISIプロットは、ISIの影響を測定するための業界最高のツールです。
DDjのみのEYEパターンを表示し、EYEを歪める原因のデータ・パターンを見つけることができます。
このツールは通信状態の信号からもDDjを測定できるため、デバッグに最も適したツールです。
ジッタ・スペクトル
- ジッタ・スペクトル・プロットによってPj(Periodic Jitter)のスペクトラム解析が可能
- ピーク注釈機能によってスペクトル上に周波数を直接表示可能
- レクロイのスペクトル・プロットではDDjを除去した波形を表示できるため、極めて明確な解析が可能
- ジッタ・スペクトルの逆FFT機能をサポートしており、Pjの成分波形を予測できます。
ジッタ・トレンド
ヒストグラム解析のみでは見落とす可能性のある過度的なジッタ・イベントを、ジッタの時間関数として表示
ヒストグラムとバスタブ・カーブ
- Q-Scaleのフィッティングテールにより、デュアル・ディラックや非ガウシアン分布のジッタ成分を、明確に判別することができます。バスタブ・カーブは、アイ・パターンの開口幅の劣化を高い信頼性を持って予測します。
- 未処理のデータを示すローデータ・ビューではジッタ分解とバスタブ曲線を極めて高い精度で表示することができます。
ケーブル・ディエンベディット
高ビットレートの信号品質測定では、ケーブルの影響により測定結果が本来の信号品質と異なる場合があります。SDA
8Zi-BではCable De-Embedded機能により、各ch入力のケーブルの影響を補正することができるため、測定精度を向上させることができます。
ページトップへ
クリックで詳細表示されます
プローブ・アダプタ
アクティブ・プローブ
ZS1500
1.5GHz ハイインピーダンス・アクティブ・プローブ |
ZS1000
1GHz ハイインピーダンス・アクティブ・プローブ |
ZS1500
1.5GHz ハイインピーダンス・アクティブ・プローブ |
ZS1000
1GHz ハイインピーダンス・アクティブ・プローブ |
電流プローブ
CP030/CP030A
電流プローブ、DC～50MHz 30A （DC)、 50A（ピーク） 、CP030Aは最高感度1mA/div |
CP031/CP031A
電流プローブ、DC～100MHz 30A （DC)、 50A（ピーク） 、CP031Aは最高感度1mA/div |
CP150
電流プローブ、DC～10MHz 150A （DC)、500A（ピーク） |
CP500
電流プローブ、DC～2MHz 500A （DC)、700A（ピーク） |
DCS025
電流プローブ用スキュー調整ジグ |
CA10
サードパーティ製電流測定デバイス用アダプタ |
CA10-QUADPAK
サードパーティ製電流測定デバイス用アダプタ（４個セット） |
差動アンプ
DA1855A
100MHz高精度･オフセット機能付き差動アンプ 1ch仕様 (ProBus対応) |
DXC100A
DAシリーズ用ペア・プローブ：250MHz* 10:1/100:1 1MΩ 10.5pF |
DXC200
DAシリーズ用ペア・プローブ：50MHz 1:1 30pF |
DXC-5100
DAシリーズ用ペア・プローブ：250MHz（DA1855A使用時は100MHz） 100:1 2.75pF 最大入力電圧 2,500VDC+Peak |
DA101
10:1 1MΩ受動アッテネータ (DXC5100用） |
DA1855A-PR2
100MHz高精度･オフセット機能付き差動アンプ 2ch仕様 (ProBus対応) |
DA1855A-PR2-RM
100MHz高精度･オフセット機能付き差動アンプ 2ch仕様 (ProBus対応) ラックマウント仕様 （後付不可） |
差動プローブ
差動プローブ (4-6 GHz)
D410-A-PB2
4 GHz ProBus2 Differential Probe with Dx10-SI Solder-In Tip (Qty. 1), Dx10-QC Quick Connect (Qty. 1) and Dx10-SP Square Pin (Qty. 1) | D420-A-PB2
4 GHz ProBus2 Differential Probe with Dx20-SI Solder-In Tip (Qty. 1), Dx20-QC Quick Connect (Qty. 1) and Dx20-SP Square Pin (Qty. 1) | D610-A-PL
6 GHz ProLink Differential Probe with Dx10-SI Solder-In Tip (Qty. 1), Dx10-QC Quick Connect (Qty. 1) and Dx10-SP Square Pin (Qty. 1) | D620-A-PL
6 GHz ProLink Differential Probe with Dx20-SI Solder-In Tip (Qty. 1), Dx20-QC Quick Connect (Qty. 1) and Dx20-SP Square Pin (Qty. 1) | D400A-AT-PB2
4 GHz ProBus2 Differential Probe with Adjustable Tip | D600A-AT-PL
6 GHz ProLink Differential Probe with Adjustable Tip | LPA-PBUS2
ProLink to ProBus2 Adapter | LPA-PBUS2
ProLink to ProBus2 Adapter | LPA-PBUS2
ProLink to ProBus2 Adapter | Dx10-HiTemp
WaveLink Temperature Extension cables for Dx10. Includes 1 set of matched 30" high temperature cables, 1 solder tip lead set | Dx20-HiTemp
WaveLink Temperature Extension cables for Dx20. Includes 1 set of matched 30" high temperature cables, 1 solder tip lead set | Dx10-SI
Replacement Solder tip lead set for D410/D610 | Dx20-SI
Replacement Solder tip lead set for D420/D620 | Dx10-QL-3SI
QuickLink Solder-In starter pack for use with Dx10 amplifier | Dx20-QL-3SI
QuickLink Solder-In starter pack for use with Dx20 amplifier | TF-DSQ
Probe Deskew and Calibration Test Fixture Limited Availability | D410-A-CCNIST
NIST Calibration for D410-A. Includes test data. | D420-A-CCNIST
NIST Calibration for D420-A. Includes test data. | D610-A-CCNIST
NIST Calibration for D610-A. Includes test data. | D620-A-CCNIST
NIST Calibration for D620-A. Includes test data. |
差動プローブ (8-13 GHz)
Dxx30-PT-KIT
WaveLink Dxx30-PT (up to 10 GHz rating) Adjustable Positioner Tip Kit. For use with Dxx30 amplifiers | Dxx30-SI
Replacement Dxx30-SI 8-13 GHz Solder-In Lead with Qty. 5 Spare Resistors. | Dxx30-QL-3SI
QuickLink Solder-In starter pack for use with Dxx30 amplifier. Includes one QuickLink Adapter and three QL-SI tips. | D830-CCNIST
NIST Calibration for D830. Includes test data. | D1330-CCNIST
NIST Calibration for D1330. Includes test data. | D830-PL
8 GHz ProLink Differential Probe with Dxx30-SI Solder-In Tip (Qty. 2) and Dxx30-SP Square Pin (Qty. 1) | D1330-PL
13 GHz ProLink Differential Probe with Dxx30-SI Solder-In Tip (Qty. 2) and Dxx30-SP Square Pin (Qty. 1) | TF-DSQ
Probe Deskew and Calibration Test Fixture Limited Availability |
差動プローブ (16-25 GHz)
D1605-A-PLA
16 GHz ProLink Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2) |
Dxx05-PTKIT
WaveLink Dxx05-PT (up to 22 GHz rating) Adj. Positioner Tip Kit.For use with Dxx05-A amplifiers. | DXX05-SI
Replacement Dxx05-SI 13-25 GHz Solder-In Lead with Qty. 5 Spare Resistors. | LPA-2.92
ProLink to 2.92mm Adapter with Probe Power and Communication Pass Through | D1605-A-CCNIST
NIST Calibration for D1605-A. Includes test data. | D2005-A-CCNIST
NIST Calibration for D2005-A. Includes test data. | D2505-A-CCNIST
NIST Calibration for D2505-A. Includes test data. | D2005-A-PLA
20 GHz ProLink Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2) | D2505-A-2.92MM
25 GHz ProLink Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2) | TF-DSQ
Probe Deskew and Calibration Test Fixture Limited Availability |
高電圧差動プローブ
高電圧プローブ
HVP120
400MHz、50MΩ、1kVrms-6kV（過渡）、高電圧プローブ |
PPE4KV
高電圧プローブ、耐圧4kV、100:1、400MHz帯域、50MΩ、<6pF、2mケーブル |
PPE5KV
高電圧プローブ、耐圧4kV、100:1、400MHz帯域、50MΩ、<6pF、2mケーブル |
PPE6KV
高電圧プローブ、耐圧6kV、1000:1、400MHz帯域、50MΩ、<6pF、2mケーブル、 |
O/E変換器
OE425
5GHz 500-870nm O/Eコンバータ （ProBus入力用） |
OE455
3.5GHz 950-1630nm O/Eコンバータ （ProBus入力用） |
OE525
5GHz 500-870nm O/Eコンバータ (ProLink入力用) |
OE555
3.5GHz 950-1630nm O/Eコンバータ (PｒoLink入力用) |
Probe Parts and Kits
Dx10-HiTEMP
WaveLink Temperature Extension cables for Dx10. Includes 1 set of matched 30" high temperature cables, 1 solder tip lead set |
Dx10-SI-HiTEMP
Replacement Solder tip leadset for use with D410/D610 and temperature extension cables |
Dx20-HiTEMP
WaveLink Temperature Extension cables for Dx20. Includes 1 set of matched 30" high temperature cables, 1 solder tip lead set |
Dx20-SI-HiTEMP
Replacement Solder tip leadset for use with D420/620 and temperature extension cables |
Dxx0-Cable-HiTemp
Replacement 30" matched cable set for use with HiTemp Solder tip leadset |
LPA-K-A
Pro-Link to K/2.92mm Adapter |
LPA-K-KIT-A
Kit of Qty. 4 Pro-Link to K/2.92mm Adapter |
LPA-SMA-A
Pro-Link to SMA Adapter, new style |
LPA-SMA-KIT-A
Kit of Pro-Link to SMA Adapter, new style |
OE695G-REFCAL
OE695G Reference Cal (1ch) |
PK006
SMT Probing Accessories for AP020, PP002, and PP006 Surface Mount Technology Accessories |
パッシブ・プローブ
PP066
7.5 GHz low capacitance Passive Probe, 500/1K Ohms |
ページトップへ
|
|
|
Automated Compliance Testing
