販売終了しました。後継機種： WaveRunner 9000シリーズ

デジタル･オシロスコープ
WaveRunner 8000シリーズ

ジェスチャ・コントロールで
デバッグ時間を短縮！

WaveRunner 8000は、タブレット感覚の操作性「OneTouch MAUI（ワンタッチマウイ）」を取り入れると共に、従来のWaveRunnerシリーズの強力なデータ解析ツールを搭載した新世代のオシロスコープです。設定操作や解析機能の充実により測定やデバッグ時間の短縮を実現します。500MHzから4GHzまでの帯域、40GS/s（Mモデル）のサンプリング速度、ロングメモリと万能のツール群により幅広い測定ニーズに対応することが出来ます。 ※MAUI(Most Advanced oscilloscope User Interface)

ワンタッチ操作を見る

ワンタッチ操作のデモビデオを見る (日本語字幕付き 7分)

基本仕様

モデル名	帯域	サンプリング速度 (4ch時/2ch時)	標準メモリ(4ch時/2ch時) その他
WaveRunner 8054 販売終了	500MHz	10/20 GS/s	16/32Mポイント（Mモデルは64/128Mポイント） 4Ch デジタル・オシロスコープ
WaveRunner 8104 販売終了	1GHz	10/20 GS/s
WaveRunner 8254 販売終了	2.5GHz	10/20 GS/s
WaveRunner 8404 販売終了	4GHz	10/20 GS/s
WaveRunner 8254M 販売終了	2.5GHz	20/40 GS/s
WaveRunner 8404M 販売終了	4GHz	20/40 GS/s
WaveRunner 8104-R 販売終了	1GHz	10/20 GS/s	16/32Mポイント（Mモデルは64/128Mポイント） 4Ch デジタル・オシロスコープディスプレイなし、高さ2U
WaveRunner 8254M-R 販売終了	2.5GHz	20/40 GS/s
WaveRunner 8404M-R 販売終了	4GHz	20/40 GS/s
ミックスド・シグナル・オシロスコープ
WaveRunner 8054-MS 販売終了	500MHz	10/20 GS/s	16/32Mポイント（Mモデルは64/128Mポイント） 4+16Ch ミックスド・シグナル・オシロスコープ
WaveRunner 8104-MS 販売終了	1GHz	10/20 GS/s
WaveRunner 8254-MS 販売終了	2.5GHz	10/20 GS/s
WaveRunner 8404-MS 販売終了	4GHz	10/20 GS/s
WaveRunner 8254M-MS 販売終了	2.5GHz	20/40 GS/s
WaveRunner 8404M-MS 販売終了	4GHz	20/40 GS/s

モデルごとスペック詳細（モデル名をクリックで詳細表示されます）

WaveRunner 8054　スペック

Vertical System
Analog Bandwidth (Max)	500 MHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	500 MHz (≧2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	700 ps (typical)
Rise Time (20-80%, 50 Ω)	480 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 4 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 500 MHz 1.5 div @＜ 250 MHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	500 MHz @ ≧ 10 mV/div (minimum triggerable width 1.2 ns)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

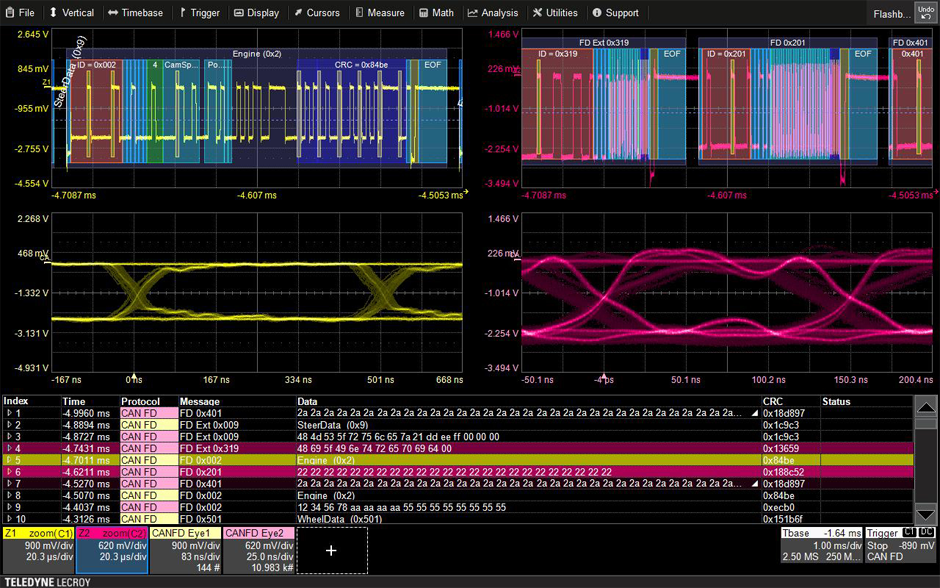

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	37.5 lbs. (17.0 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8104　スペック

Vertical System
Analog Bandwidth (Max)	1 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	1 GHz (≧2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	415 ps (typical)
Rise Time (20-80%, 50 Ω)	290 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 3.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 1 GHz 1.5 div @＜ 500 MHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	1.0 GHz @ ≧ 10 mV/div (minimum triggerable width 750 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	37.5 lbs. (17.0 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8254　スペック

Vertical System
Analog Bandwidth (Max)	2.5 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	2.5 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	160 ps (typical)
Rise Time (20-80%, 50 Ω)	120 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 2.5 GHz 1.5 div @＜ 1.25 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 300 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	37.5 lbs. (17.0 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8404　スペック

Vertical System
Analog Bandwidth (Max)	4 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	4 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	100 ps (typical)
Rise Time (20-80%, 50 Ω)	75 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC -2.5 GHz: 40 dB (>100:1), 2.5 GHz to rated BW: 31.6 dB (>30:1) (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 4 GHz 1.5 div @＜ 2 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	37.5 lbs. (17.0 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8254M　スペック

Vertical System
Analog Bandwidth (Max)	2.5 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	2.5 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	160 ps (typical)
Rise Time (20-80%, 50 Ω)	120 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 6.4 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	20 GS/s on 4 Ch 40 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	64M / 128M / 128M (15,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 2.5 GHz 1.5 div @＜ 1.25 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 300 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	16 GB standard
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	415 W / 415 VA
Max. Power Consumption	500 W / 500 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	37.5 lbs. (17.0 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8404M　スペック

Vertical System
Analog Bandwidth (Max)	4 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	4 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	100 ps (typical)
Rise Time (20-80%, 50 Ω)	75 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC -2.5 GHz: 40 dB (>100:1), 2.5 GHz to rated BW: 31.6 dB (>30:1) (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 6.4 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	20 GS/s on 4 Ch 40 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	64M / 128M / 128M (15,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 4 GHz 1.5 div @＜ 2 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	16 GB standard
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	415 W / 415 VA
Max. Power Consumption	500 W / 500 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	37.5 lbs. (17.0 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8104-R　スペック

Vertical - Analog Channels
Analog Bandwidth (Max)	1 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input)	1 GHz (≧2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	415 ps (typical)
Rise Time (20-80%, 50 Ω)	290 ps (typical)
Input Channels	4
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Offset Range	50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Bandwidth Limiters	20MHz, 200MHz
Rescaling	Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.

Horizontal - Analog Channels
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the EXT input
Acquisition Modes	Real-time, Roll, Random Interleaved Sampling (RIS), Sequence
Time/Division Range	20 ps/div - 1.6 ks/div RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Sample Clock Jitter	up to 10μs Acquired Time Range: 100fsrms (Internal Timebase Reference) up to 10ms Acquired Time Range: 360fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy	\sqrt{2}\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracyreading)(seconds)
Jitter Measurement Floor	\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range	±9 x time/div. setting, 100 ms max., each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.0 dBm +/-1 dBm, sinewave synchronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition - Analog Channels
Sample Rate (Single-shot)	10 GS/s on 4Ch 20 GS/s on 2 Ch
Sample Rate (Repetitive)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)
Intersegment Time	1 μs
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x (2 pt and 5 pt)

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, Line or Fast Edge; slope and level unique to each source (except line trigger)
Coupling	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off	From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter	≦ 3.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range	±4.1 div from center (typical)
External Trigger Level Range	Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜ 200 MHz 0.9 div @ ＜ 10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input)	2 div @ ＜1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜ 200 MHz 0.9 div @ ＜ 10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	1.0 GHz @ ≧ 10 mV/div (minimum triggerable width 750 ps)

Trigger Types
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Width	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Window	Triggers when signal exits a window defined by adjustable thresholds
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval	Triggers on intervals selectable between 1 ns and 20 s.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.
Multi-Stage: Qualified (Timeout or State/Edge Qualified)	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Triggers with Exclusion Technology	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Multi-Stage: Cascade (Sequence) Trigger, Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Multi-Stage: Cascade (Sequence) Trigger, Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Multi-Stage: Cascade (Sequence) Trigger, Holdoff	Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.
TriggerScan	A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.

Low Speed Serial Protocol Trigger (Optional)
Supported Protocols	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

High Speed Serial Protocol Trigger
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Measurement Tools
Measurement Functionality	Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter	Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical	Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse	Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms)	Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)

Math Tools
Math Functionality	Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math	Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Filters	Enhanced resolution (to 11 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis	FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions	Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other	Segment, Sparse

Measurement and Math Integration
Measurement and Math Integration	Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)

Pass/Fail Testing
Pass/Fail Testing	Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value ＜. ≦, =, >, ≧, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.

Display System
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen, Triple, Hex
Waveform Representation	Sample dots joined, or sample dots only

Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

Calibration
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Processor/CPU
Type	IntelR Celeron, 1.4 GHz (or better)
Processor Memory	8 GB standard
Operating System	Microsoft WindowsR 7 For Embedded Systems 64Bits
Oscilloscope Operating Software	Teledyne LeCroy MAUI with OneTouch
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Connectivity
Ethernet Port	Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports)
USB Host Ports	2 rear USB 3.1 Gen1 ports, 2 rear USB 2.0 ports and 1 front 1 USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 2.0
GPIB Port (optional)	Supports IEEE - 488.2 (External)
External Monitor Port	DisplayPort 1.1 (Qty. 1) and VGA (Qty. 1) to support customer-supplied external monitor. Includes support for extended desktop operation with WQXGA (2560 x 1600) pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver).
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Output Signal	500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge, off
Connector Type	BNC, located on front

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 50/60 Hz ±5%; 110-120 VAC ±10% at 400 Hz ±5%; Automatic AC Voltage Selection
Nominal Power Consumption	240 W / 240 VA
Max. Power Consumption	310 W / 310 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 90% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Size and Weight
Dimensions (HWD)	3.41” x 17.52” x 17.52” (86.5 x 445 x 445 mm)
Weight	16.4 lbs. (7.4 kg)
Shipping Weight	31.08 lbs. (14.1 kg)

Certifications
CE Certification UL and cUL Listing	CE Compliant

Warranty and Service
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8254M-R　スペック

Vertical - Analog Channels
Analog Bandwidth (Max)	2.5 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input)	2.5 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	160 ps (typical)
Rise Time (20-80%, 50 Ω)	120 ps (typical)
Input Channels	4
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Rescaling	Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.

Horizontal - Analog Channels
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the EXT input
Acquisition Modes	Real-time, Roll, Random Interleaved Sampling (RIS), Sequence
Time/Division Range	20 ps/div - 6.4 ks/div RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Sample Clock Jitter	up to 10μs Acquired Time Range: 100fsrms (Internal Timebase Reference) up to 10ms Acquired Time Range: 360fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy	\sqrt{2}\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracyreading)(seconds)
Jitter Measurement Floor	\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.0 dBm +/-1 dBm, sinewave synchronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition - Analog Channels
Sample Rate (Single-shot)	20 GS/s on 4 Ch 40 GS/s on 2 Ch
Sample Rate (Repetitive)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments)	64M / 128M / 128M (15,000)
Intersegment Time	1 μs
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x (2 pt and 5 pt)

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, Line or Fast Edge; slope and level unique to each source (except line trigger)
Coupling	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off	From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter	≦ 2.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range	±4.1 div from center (typical)
External Trigger Level Range	Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 2.5 GHz 1.5 div @ ＜ 1.25 GHz 1 div @ ＜ 200 MHz 0.9 div @ ＜ 10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input)	2 div @ ＜1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜ 200 MHz 0.9 div @ ＜ 10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 300 ps)

Trigger Types
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Width	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Window	Triggers when signal exits a window defined by adjustable thresholds
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval	Triggers on intervals selectable between 1 ns and 20 s.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.
Multi-Stage: Qualified (Timeout or State/Edge Qualified)	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Triggers with Exclusion Technology	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Multi-Stage: Cascade (Sequence) Trigger, Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Multi-Stage: Cascade (Sequence) Trigger, Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Multi-Stage: Cascade (Sequence) Trigger, Holdoff	Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.
TriggerScan	A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.

Low Speed Serial Protocol Trigger (Optional)
Supported Protocols	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

High Speed Serial Protocol Trigger
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Measurement Tools
Measurement Functionality	Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter	Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical	Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse	Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms)	Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)

Math Tools
Math Functionality	Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math	Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Filters	Enhanced resolution (to 11 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis	FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions	Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other	Segment, Sparse

Measurement and Math Integration
Measurement and Math Integration	Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)

Pass/Fail Testing
Pass/Fail Testing	Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value ＜. ≦, =, >, ≧, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.

Display System
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen, Triple, Hex
Waveform Representation	Sample dots joined, or sample dots only

Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

Calibration
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Processor/CPU
Type	IntelR Celeron, 1.4 GHz (or better)
Processor Memory	8 GB standard
Operating System	Microsoft WindowsR 7 Professional Edition (64-bit)
Oscilloscope Operating Software	Teledyne LeCroy MAUI with OneTouch
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Connectivity
Ethernet Port	Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports)
USB Host Ports	2 rear USB 3.1 Gen1 ports, 2 rear USB 2.0 ports and 1 front 1 USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 2.0
GPIB Port (optional)	Supports IEEE - 488.2 (External)
External Monitor Port	DisplayPort 1.1 (Qty. 1) and VGA (Qty. 1) to support customer-supplied external monitor. Includes support for extended desktop operation with WQXGA (2560 x 1600) pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver).
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Output Signal	500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge, off
Connector Type	BNC, located on front

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 50/60 Hz ±5%; 110-120 VAC ±10% at 400 Hz ±5%; Automatic AC Voltage Selection
Nominal Power Consumption	340 W / 415 VA
Max. Power Consumption	410 W / 410 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 90% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Size and Weight
Dimensions (HWD)	3.41” x 17.52” x 17.52” (86.5 x 445 x 445 mm)
Weight	16.4 lbs. (7.4 kg)
Shipping Weight	31.08 lbs. (14.1 kg)

Certifications
CE Certification UL and cUL Listing	CE Compliant

Warranty and Service
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8404M-R　スペック

Vertical - Analog Channels
Analog Bandwidth (Max)	4 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input)	4 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	100 ps (typical)
Rise Time (20-80%, 50 Ω)	75 ps (typical)
Input Channels	4
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Channel-Channel Isolation	DC-2.5 GHz: 40 dB (>100:1), 2.5 GHz to rated BW: 31.6 dB (>30:1) (For any two ProBus input channels, same v/div settings, typical)
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	\
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Rescaling	Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.

Horizontal - Analog Channels
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the EXT input
Acquisition Modes	Real-time, Roll, Random Interleaved Sampling (RIS), Sequence
Time/Division Range	20 ps/div - 6.4 ks/div RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Sample Clock Jitter	up to 10μs Acquired Time Range: 100fsrms (Internal Timebase Reference) up to 10ms Acquired Time Range: 360fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy	\sqrt{2}\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracyreading)(seconds)
Jitter Measurement Floor	\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.0 dBm +/-1 dBm, sinewave synchronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition - Analog Channels
Sample Rate (Single-shot)	20 GS/s on 4 Ch 40 GS/s on 2 Ch
Sample Rate (Repetitive)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Memory Length (4 Ch / 2 Ch / 1Ch) (Number of Segments)	64M / 128M / 128M (15,000)
Intersegment Time	1 μs
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x (2 pt and 5 pt)

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, Line or Fast Edge; slope and level unique to each source (except line trigger)
Coupling	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off	From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter	≦ 2 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Internal Trigger Level Range	±4.1 div from center (typical)
External Trigger Level Range	Ext (±0.4 V); Ext/10 (±4 V)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 4 GHz 1.5 div @ ＜ 2 GHz 1 div @ ＜ 200 MHz 0.9 div @ ＜ 10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
Trigger Sensitivity with Edge Trigger (Aux Input)	2 div @ ＜1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜ 200 MHz 0.9 div @ ＜ 10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps)

Trigger Types
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Width	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Window	Triggers when signal exits a window defined by adjustable thresholds
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval	Triggers on intervals selectable between 1 ns and 20 s.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.
Multi-Stage: Qualified (Timeout or State/Edge Qualified)	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Triggers with Exclusion Technology	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Multi-Stage: Cascade (Sequence) Trigger, Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Multi-Stage: Cascade (Sequence) Trigger, Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Multi-Stage: Cascade (Sequence) Trigger, Holdoff	Holdoff between A and B or B and C is selectable by time or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.
TriggerScan	A Trigger Trainer analyzes the waveforms, identifies normal behavior, and then sets up a large set of rare event smart trigger setups that target abnormal behavior. The trainer ‘learns’ trigger setups based on slew rates, periods, amplitudes outside of a range and then applies them sequentially.

Low Speed Serial Protocol Trigger (Optional)
Supported Protocols	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

High Speed Serial Protocol Trigger
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Measurement Tools
Measurement Functionality	Display up to 8 measurement parameters together with statistics, including mean, minimum, maximum, standard deviation, and total number. Each occurrence of each parameter is measured and added to the statistics table. Histicons provide a fast, dynamic view of parameters and waveshape characteristics. Parameter math allows addition, subtraction, multiplication, or division of two different parameters. Parameter gates define the location for measurement on the source waveform. Parameter accept criteria define allowable values based on range setting or waveform state.
Measurement Parameters - Horizontal + Jitter	Cycles (number of), Delay (from trigger, 50%), Δ Delay (50%), Duty Cycle (50%, @level), Edges (number of, @level), Fall Time (90-10, @levels), Frequency (50%, @level), Half Period (@level), Hold Time (@level), N Cycle Jitter (peak-peak), Number of Points, Period (50%, @level), Δ Period (@level), Phase (@level), Rise Time (10-90, @levels), Setup (@levels), Skew (@levels), Slew Rate (@levels), Time Interval Error (@level), Time (@level), Δ Time (@level), Width (50%, @level), Δ Width (@level), X(value)@max, X(value)@min
Measurement Parameters - Vertical	Amplitude, Base, [email protected], Maximum, Mean, Median, Minimum, Peak-to-Peak, RMS, Std. Deviation, Top.
Measurement Parameters - Pulse	Area, Base, Fall Time (90-10, 80-20, @levels), Overshoot (positive, negative), Rise Time (10-90, 80-20, @levels), Top, Width (50%)
Measurement Parameters - Statistical (on Histograms)	Full Width (@ Half Max, @ %), Amplitude, Base, Peak @ Max Population, Maximum, Mean, Median, Minimum, Mode, Range, RMS, Std. Deviation, Top, X(value)@Peak, Peaks (number of), Percentile, Population (@bin, total)

Math Tools
Math Functionality	Display up to 8 math functions traces (F1-F8). The easy-to-use graphical interface simplifies setup of up to two operations on each function trace, and function traces can be chained together to perform math-on-math.
Math Operators - Basic Math	Average (summed), Average (continuous), Difference (-), Envelope, Floor, Invert (negate), Product (x), Ratio (/), Reciprocal, Rescale (with units), Roof, Sum (+).
Math Operators - Filters	Enhanced resolution (to 11 bits vertical), Interpolate (cubic, quadratic, sinx/x), (SinX)/x.
Math Operators - Frequency Analysis	FFT (power spectrum, magnitude, phase, power density, real, imaginary, magnitude squared), up to full record length. Select from Rectangular, VonHann, Hamming, FlatTop and Blackman Harris windows.
Math Operators - Functions	Absolute value, Correlation (two waveforms), Derivative, Deskew (resample), Exp (base e), Exp (base 10), Integral, Invert (negate), Log (base e), Log (base 10), Reciprocal, Rescale (with units), Square, Square root, Zoom (identity).
Math Operators - Other	Segment, Sparse

Measurement and Math Integration
Measurement and Math Integration	Histograms to display statistical distributions of up to 2 billion measurement parameters. Trend (datalog) of up to 1 million measurement parameters. Track (display parameter vs. time, time-correlated to acquisitions) any parameter. Persistence histogram and persistence trace (mean, range, sigma)

Pass/Fail Testing
Pass/Fail Testing	Display up to 8 pass/fail queries using a Single or Dual Parameter Comparison (compare All values, or Any value ＜. ≦, =, >, ≧, within limit ±Δ value or %) or Mask Test (pre-defined or user-defined mask, waveform All In, All Out, Any In, or Any Out conditions). Combine queries into a boolean expression to Pass or Fail IF "All True", "All False", "Any True", "Any False", or groups or "All" or "Any", with following THEN Save (waveforms), Stop, Alarm, (send) Pulse, Hardcopy (send email, save screen image, save to clipboard, send to printer), or (save) LabNotebook.

Display System
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen, Triple, Hex
Waveform Representation	Sample dots joined, or sample dots only

Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

Calibration
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Processor/CPU
Type	IntelR Celeron, 1.4 GHz (or better)
Processor Memory	8 GB standard
Operating System	Microsoft WindowsR 7 Professional Edition (64-bit)
Oscilloscope Operating Software	Teledyne LeCroy MAUI with OneTouch
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Connectivity
Ethernet Port	Supports 2 10/100/1000BaseT Ethernet interface (RJ45 ports)
USB Host Ports	2 rear USB 3.1 Gen1 ports, 2 rear USB 2.0 ports and 1 front 1 USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 2.0
GPIB Port (optional)	Supports IEEE - 488.2 (External)
External Monitor Port	DisplayPort 1.1 (Qty. 1) and VGA (Qty. 1) to support customer-supplied external monitor. Includes support for extended desktop operation with WQXGA (2560 x 1600) pixel resolution and split-grid capability on external monitor. Supports touch screen integration of external monitor (Note: external display can not use a Fujitsu touch-screen driver).
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Output Signal	500 Hz-1 MHz square wave or DC level; 50 mV-1 V into 1 MΩ
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge, off
Connector Type	BNC, located on front

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 50/60 Hz ±5%; 110-120 VAC ±10% at 400 Hz ±5%; Automatic AC Voltage Selection
Nominal Power Consumption	340 W / 415 VA
Max. Power Consumption	410 W / 410 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 90% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Size and Weight
Dimensions (HWD)	3.41” x 17.52” x 17.52” (86.5 x 445 x 445 mm)
Weight	16.4 lbs. (7.4 kg)
Shipping Weight	31.08 lbs. (14.1 kg)

Certifications
CE Certification UL and cUL Listing	CE Compliant

Warranty and Service
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8054-MS　スペック

Vertical System
Analog Bandwidth (Max)	500 MHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	500 MHz (≧2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	700 ps (typical)
Rise Time (20-80%, 50 Ω)	480 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 4 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 500 MHz 1.5 div @＜ 250 MHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	500 MHz @ ≧ 10 mV/div (minimum triggerable width 1.2 ns)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +30 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	38.2 lbs. (17.3 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8104-MS　スペック

Vertical System
Analog Bandwidth (Max)	1 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	1 GHz (≧2 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	415 ps (typical)
Rise Time (20-80%, 50 Ω)	290 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 3.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 1 GHz 1.5 div @＜ 500 MHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	1.0 GHz @ ≧ 10 mV/div (minimum triggerable width 750 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	38.2 lbs. (17.3 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8254-MS　スペック

Vertical System
Analog Bandwidth (Max)	2.5 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	2.5 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	160 ps (typical)
Rise Time (20-80%, 50 Ω)	120 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 2.5 GHz 1.5 div @＜ 1.25 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 300 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	38.2 lbs. (17.3 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8404-MS　スペック

Vertical System
Analog Bandwidth (Max)	4 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	4 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	100 ps (typical)
Rise Time (20-80%, 50 Ω)	75 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC -2.5 GHz: 40 dB (>100:1), 2.5 GHz to rated BW: 31.6 dB (>30:1) (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 1.6 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	10 GS/s on 4Ch 20 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	16M / 32M / 32M (5,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 4 GHz 1.5 div @＜ 2 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	8 GB standard, up to 16 GB optional
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	285 W / 285 VA
Max. Power Consumption	375 W / 375 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	38.2 lbs. (17.3 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8254M-MS　スペック

Vertical System
Analog Bandwidth (Max)	2.5 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	2.5 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	160 ps (typical)
Rise Time (20-80%, 50 Ω)	120 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC up to rated BW: 40 dB (>100:1), (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 6.4 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2.5 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	20 GS/s on 4 Ch 40 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	64M / 128M / 128M (15,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 2.5 GHz 1.5 div @＜ 1.25 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 300 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	16 GB standard
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	415 W / 415 VA
Max. Power Consumption	500 W / 500 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	38.2 lbs. (17.3 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

WaveRunner 8404M-MS　スペック

Vertical System
Analog Bandwidth (Max)	4 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs)	4 GHz (≧ 5 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)	500 MHz (typical)
Rise Time (10-90%, 50 Ω)	100 ps (typical)
Rise Time (20-80%, 50 Ω)	75 ps (typical)
Input Channels	4
Bandwidth Limiters	20MHz, 200MHz, 1GHz
Input Impedance	50 Ω+/-2% or 1 MΩ\|\|17pF, 10 MΩ \|\| 9.5 pF with supplied Probe
Input Coupling	1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Maximum Input Voltage	50 Ω: 5V RMS ± 10V peak 1 MΩ: 400 V max. (DC + peak AC ＜ 10 kHz)
Channel-Channel Isolation	DC -2.5 GHz: 40 dB (>100:1), 2.5 GHz to rated BW: 31.6 dB (>30:1) (For any two ProBus input channels, same v/div settings, typical)
Vertical Resolution	8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity	50 Ω: 1 mV-1 V/div, fully variable; 1 MΩ: 1 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy)	±(1%) F.S, offset at 0 V
Offset Range	50 Ω BWL≦1 GHz ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±10 V @ 20 mV - 1V/div BWL>1GHz ±1.4V @ 5 mV - 100 mV/div ±10V @ 102 mV - 1 V/div 1 MΩ ±1.6 V @ 1 mV - 4.95 mV/div ±4 V @ 5 mV - 9.9 mV/div ±8 V @ 10 mV - 19.8 mV/div ±16 V @ 20 mV - 100 mV/div ±80 V @ 102 mV - 1.0 V/div ±160 V @ 1.02 V - 10 V/div
DC Vertical Offset Accuracy	±(1.5% of offset setting +1% of full scale + 1 mV) (test limit)

Horizontal System
Timebases	Internal timebase common to 4 input channels; an external clock may be applied at the auxiliary input
Time/Division Range	20 ps/div - 6.4 ks/div with standard memory RIS available at ≦ 10 ns/div; Roll Mode available at ≧ 100 ms/div and ≦ 5 MS/s
Clock Accuracy	＜=1.5 ppm +(aging of 0.5 ppm/yr from last calibration)
Trigger and Interpolator Jitter	≦ 2 ps RMS (typical) ＜0.1 ps RMS (typical, software assisted)
Channel-Channel Deskew Range	±9 x time/div. setting, each channel
External Timebase Reference (Input)	10MHz +/-25ppm into 50 ohms
External Timebase Reference (Output)	10MHz, 3.5 dBm +/-1dBm, syncronized to reference being used (internal or external reference)
External Clock	DC to 100 MHz; (50 Ω/1 MΩ), EXT BNC input, Minimum rise time and amplitude requirements apply at low frequencies.

Acquisition System
Single-Shot Sample Rate/Ch	20 GS/s on 4 Ch 40 GS/s on 2 Ch
Random Interleaved Sampling (RIS)	200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Maximum Trigger Rate	1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Intersegment Time	1 μs
Standard Memory (4 Ch / 2 Ch / 1Ch) (Number of Segments)	64M / 128M / 128M (15,000)

Acquisition Processing
Averaging	Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES)	From 8.5 to 11 bits vertical resolution
Envelope (Extrema)	Envelope, floor, or roof for up to 1 million sweeps
Interpolation	Linear or Sin x/x

Triggering System
Modes	Normal, Auto, Single, and Stop
Sources	Any input channel, Ext, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling Mode	DC, AC, HFRej, LFRej
Pre-trigger Delay	0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay	0-10,000 Divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off by Time or Events	From 2 ns up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range	±4.1 div from center (typical)
Trigger Sensitivity with Edge Trigger ProBus Inputs	2 div @ ＜ 4 GHz 1.5 div @＜ 2 GHz 1 div @ ＜ 200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling, ≧ 10 mV/div, 50 Ω)
External Trigger Sensitivity, (Edge Trigger)	2 div @ 1 GHz 1.5 div @ ＜ 500 MHz 1 div @ ＜200 MHz 0.9 div @＜10 MHz (DC, AC, and LFRej coupling)
Max. Trigger Frequency, SMART Trigger	2.0 GHz @ ≧ 10 mV/div (minimum triggerable width 200 ps)
External Trigger Input Range	Ext (±0.4 V); Ext/10 (±4 V)

Basic Triggers
Edge	Triggers when signal meets slope (positive, negative, or either) and level condition.
Window	Triggers when signal exits a window defined by adjustable thresholds
TV-Composite Video	Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).

SMART Triggers
State or Edge Qualified	Triggers on any input source only if a defined state or edge occurred on another input source. Delay between sources is selectable by time or events.
Qualified First	In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Dropout	Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Pattern	Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently. Triggers at start or end of the pattern.

SMART Triggers with Exclusion Technology
Glitch	Triggers on positive or negative glitches with selectable widths. Minimum width 200 ps, maximum width: 20 s
Width (Signal or Pattern)	Triggers on positive or negative glitches with selectable widths. Minimum width 500 ps, maximum width: 20 s
Interval (Signal or Pattern)	Triggers on intervals selectable between 1 ns and 20 s.
Timeout (State/Edge Qualified)	Triggers on any source if a given state (or transition edge) has occurred on another source. Delay between sources is 1 ns to 20 s, or 1 to 99,999,999 events.
Runt	Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate	Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Exclusion Triggering	Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met

Cascade (Sequence) Triggering
Capability	Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Types	Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only. Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only. Cascade A then B then C: Edge, Window, Pattern (Logic)
Holdoff	Holdoff between A and B or B and C is selectable by time (1ns to 20s) or number of events. Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.

High Speed Serial Protocol Triggering
Data Rates	(Option WR8K-80B-8B10B TD) 150 Mb/s - 3.125 Gb/s
Pattern Length	80 bits, NRZ or 8b10b
Clock Recovery Jitter	1 ps rms + 0.3% Unit Interval rms for PRBS data patterns with 50% transition density
Hardware Clock Recovery Loop BW	PLL Loop BW = Fbaud/5500, 100 Mb/s to 2.488 Gb/s (typical)

Low Speed Serial Protocol Triggering (Optional)
Optionally available	I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN1.1, CAN2.0, CAN FD, LIN, FlexRay, MIL-STD-1553, AudioBus (I2S, LJ, RJ, TDM), USB1.x/2.0, SATA

Measurement Trigger
Measurement Trigger Capability	Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.

Color Waveform Display
Type	Color 12.1" widescreen flat panel TFT-Active Matrix with high resolution touch screen
Resolution	WXGA; 1280 x 800 pixels.
Number of traces	Display a maximum of 16 traces. Simultaneously display channel, zoom, memory and math traces.
Grid Styles	Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y, Tandem, Quatro, Twelve, Sixteen
Waveform Representation	Sample dots joined, or sample dots only

Internal Waveform Memory
Internal Waveform Memory	4 active waveform memory traces (M1-M4) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.

Integrated Second Display
Type	Supports touch screen integration of user-supplied second display with split-grid capability. (Note: touch screen driver for second display may not be a Fujitsu driver)

Analog Persistence Display
Analog and Color-Graded Persistence	Variable saturation levels; stores each trace's persistence data in memory
Persistence Types	Select analog, color, or three-dimensional
Trace Selection	Activate persistence on all or any combination of traces
Persistence Aging	Select from 500 ms to infinity
Sweep Display Modes	All accumulated, or all accumulated with last trace highlighted

Processor/CPU
Type	IntelR I5-3610 Dual Core, 2.7 GHz (or better)
Processor Memory	16 GB standard
Operating System	Microsoft WindowsR 7 Pro 64 bit Embedded
Real Time Clock	Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.

Zoom Expansion Traces
Zoom Expansion Traces	Display up to 8 Zoom and 8 Math/Zoom traces

Setup Storage
Front Panel and Instrument Status	Store to the internal hard drive, over the network, or to a USB-connected peripheral device.

Interface
Remote Control	Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard	VXI-11 or VICP, LXI Class C (v1.2) Compliant
GPIB Port	Supports IEEE - 488.2 (External)
Ethernet Port	Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Ports	4 side USB 3.1 Gen1 ports, 2 side USB 2.0 ports, and 1 front USB 2.0 port support Windows compatible devices
USB Device Port	1 port - USBTMC over USB 3.1 Gen1
External Monitor Port	2 full-size Display Port connectors and 1 DVI-D. Includes support for extended desktop operation with WXGA resolution on second monitor.

Auxiliary Input
Signal Types	Select External Trigger or External Clock Input on the front panel
Coupling	50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage	50 Ω: 5 Vrms; 1 MΩ: 250 Vmax (DC + Peak AC ≦ 10 kHz)

Auxiliary Output
Signal Types	Select from control signals or Off
Control Signals	Trigger enabled, trigger out, pass/fail status, fast edge (5 MHz, 400 mV square wave), off
Connector Type	BNC, located on front

Automatic Setup
Auto Setup	Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale	Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range

General
Auto Calibration	Ensures specified DC and timing accuracy is maintained for 1 year minimum.

Probes
Probes	Qty. (4) ÷10 Passive Probes
Probe System	ProBus. Automatically detects and supports a variety of compatible probes
Scale Factors	Automatically or manually selected depending on probe used
Calibration Output	Default is 1kHz square wave, 1Vp-p (typical), output to probe hook. Settable from 500 Hz to 1 MHz square wave; 50 mV to 1.0V.

Power Requirements
Voltage	100-240 VAC ±10% at 45-66 Hz; 110-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection; Installation Category 300 V CAT II
Nominal Power Consumption	415 W / 415 VA
Max. Power Consumption	500 W / 500 VA (with all PC peripherals and active probes connected to 4 channels)

Environmental and Safety
Temperature (Operating)	+5 °C to +40 °C
Temperature (Non-Operating)	-20 °C to +60 °C
Humidity (Operating)	5% to 80% relative humidity (non-condensing) up to +31 °C. Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating)	5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating)	Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating)	Up to 40,000 ft. (12,192 m)
Random Vibration (Operating)	0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating)	2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock	30 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Physical Dimensions
Dimensions (HWD)	12.44"H x 16.42"W x 9.37"D (316 x 417 x 238 mm)
Weight	22.8 lbs. (10.3 kg)
Shipping Weight	38.2 lbs. (17.3 kg)
Certifications	CE Compliant, UL and cUL listed; conforms to UL 61010-1 (3rd Edition), UL 61010-2-030 (1st Edition) CAN/CSA C22.2 No. 61010-1-12
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty, upgrades, and calibration services.

上位モデル/下位モデル

	下位モデル	同等モデル	上位モデル

モデル名	Wavesufer 10	WaveRunner 6Zi	WavePro 7Zi-A
帯域	1GHz	400MHz～600MHz	1.5～6GHz
サンプリング速度	5～10GS/s	2GS/s	20～40GS/s
標準メモリ	10 Mポイント/ch	16 Mポイント/ch	20 Mポイント/ch
	詳細	詳細	詳細

ページトップへ

主な機能

OneTouch MAUI　
─ タブレット感覚のワンタッチ操作
帯域幅：500MHz～4GHz
最大サンプリング速度：20GS/s
先進のツール群
- ジッタ/タイミング解析
- WaveScan – 波形検索
- LabNotebookドキュメント作成レポート作成
- ヒストリ・モード　-　波形再生
オプション
- シリアル・データ解析、デバッグ、コンプライアンス試験、トリガ/デコード
- 高機能カスタマイズ
- デジタル・フィルタ
- スペクトラム解析
- スイッチング電源、パワー・デバイス解析
  　
16デジタル・チャンネル入力（WaveRunner 8000-MSのみ）
- サンプリング速度　1.25GS/s
- アナログ/デジタル・クロス・パターン・トリガ
- デジタル・パターン検索
- アナログ／デジタル・タイミング計測
  　
高機能デバッグモデル（Mモデルのみ）
- サンプリング速度： 20～40GS/s
- メモリ長：最大128Mポイント
ロー・プロファイル（Rモデル）
- 表示画面を排したATE用(19インチ・ラック対応)

タブレット感覚の操作性

OneTouch MAUIを搭載したWaveRunner8000は、他のオシロスコープにない独自のタッチ操作でオシロスコープの操作性を刷新します。タブレット等で一般的なジェスチャを採用することで直感的な操作が可能になり設定時間が劇的に短くなります。全ての一般的な操作がポップアップ・メニューや設定メニューを開かなくともワンタッチ操作で行えます。

タッチ操作に特化した設計
独自のタッチスクリーン機能を用いることで、タブレットのように操作することができます。
簡素な実装
便利なショートカットや直感的なメニューにより設定が簡潔に行えます。
問題解決のために
デバッグの際には多種の解析ツールの操作をサポートして迅速に問題を解決します。

ワンタッチ操作を見る

ラックマウント型のロー・プロファイル・オシロスコープ
WaveRunner 8000-R

WaveRunner 8000-Rは、WaveRunner 8000のディスプレイや操作パネルを搭載していないPCコントロール専用のラックマウント型のオシロスコープです。WaveRunner 8000-R は、4GHzのオシロスコープにもかかわらず薄型の設計となっています。コンパクトなデザインは2U未満（8.89cm）の高さで、ラックマウント・キットが同梱されているため容易にテスト環境に組み込むことができます。

強力で詳細なツール群

標準装備の波形演算、パラメータ計測、デバッグとドキュメント・ツールが比類なき解析機能を提供します。アプリケーション専用パッケージが一般的な設計／評価の場面で最新式のデバッグ機能をもたらします。高機能カスタマイズ・オプションで独自のパラメータや波形演算を作成して追加することで、解析機能を拡張することができます。

ワンタッチ操作を見る

ワンタッチ操作のデモビデオを見る (日本語字幕付き 7分)

ページトップへ

クリックで詳細表示されます

コンピュータのアップグレード

リモート・コントロール/ネットワーク・オプション

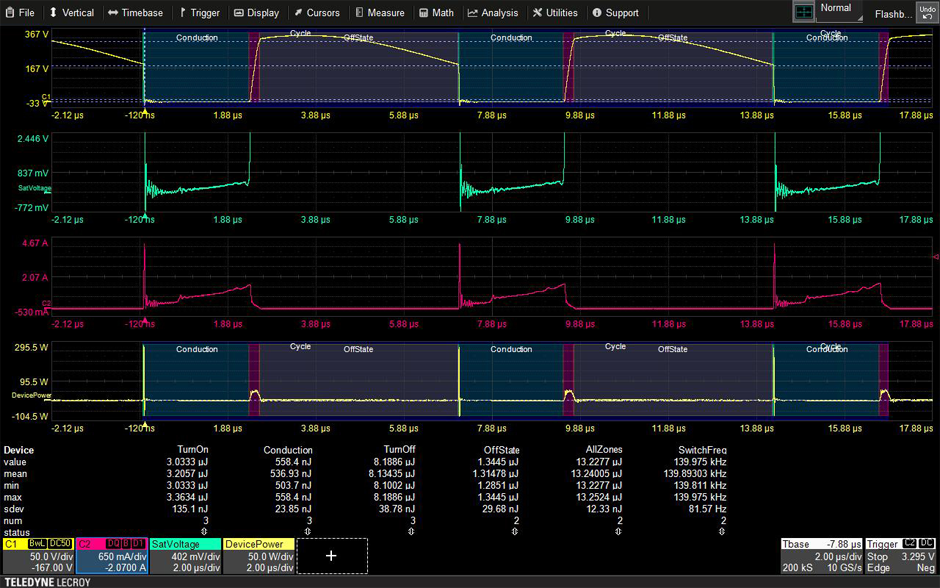

電源解析

トリガ／デコード・オプション

ジッタ解析パッケージ

デジタル・フィルタ・オプション

コンプライアンス・テスト・オプション

シリアル・データ解析

その他のソフトウェア・オプション

その他

データストレージ解析

ミックスド・シグナル・アクセサリ

テスト・フィクスチャ

クリックで詳細表示されます

光アイソレーション・プローブ

プローブ・アダプタ

電源レール・プローブ

アクティブ・プローブ

電流プローブ

差動アンプ

差動プローブ (<= 1.5 GHz)

差動プローブ (4 GHz)

高電圧差動プローブ

高電圧プローブ

O/E変換器

パッシブ・プローブ

プローブ・キット

オンライン見積もり

メールでのお問合せ

デジタル･オシロスコープ WaveRunner 8000シリーズ

Vertical System

Horizontal System

Acquisition System

Acquisition Processing

Triggering System

Basic Triggers

SMART Triggers

SMART Triggers with Exclusion Technology

Cascade (Sequence) Triggering

High Speed Serial Protocol Triggering

Low Speed Serial Protocol Triggering (Optional)

Measurement Trigger

Color Waveform Display

Internal Waveform Memory

Integrated Second Display

Analog Persistence Display

Processor/CPU

Zoom Expansion Traces

Setup Storage

Interface

Auxiliary Input

Auxiliary Output

Automatic Setup

General

Probes

Power Requirements

Environmental and Safety

Physical Dimensions

Vertical System

Horizontal System

Acquisition System

Acquisition Processing

Triggering System

Basic Triggers

SMART Triggers

SMART Triggers with Exclusion Technology

Cascade (Sequence) Triggering

High Speed Serial Protocol Triggering

Low Speed Serial Protocol Triggering (Optional)

Measurement Trigger

Color Waveform Display

Internal Waveform Memory

Integrated Second Display

Analog Persistence Display

Processor/CPU

Zoom Expansion Traces

Setup Storage

Interface

Auxiliary Input

Auxiliary Output

Automatic Setup

General

Probes

Power Requirements

Environmental and Safety

Physical Dimensions

Vertical System

Horizontal System

Acquisition System

Acquisition Processing

Triggering System

Basic Triggers

SMART Triggers

SMART Triggers with Exclusion Technology

Cascade (Sequence) Triggering

High Speed Serial Protocol Triggering

Low Speed Serial Protocol Triggering (Optional)

Measurement Trigger

Color Waveform Display

Internal Waveform Memory

Integrated Second Display

Analog Persistence Display

Processor/CPU

Zoom Expansion Traces

Setup Storage

Interface

Auxiliary Input

Auxiliary Output

Automatic Setup

デジタル･オシロスコープ
WaveRunner 8000シリーズ
