The QPHY-HDMI2.1 Test Solution for the LabMaster 10Zi-A and SDA 8Zi-B oscilloscopes provides a highly automated and easy-to-use solution for HDMI 2.1 Source testing in accordance with Version 2.1 of the HDMI Compliance Test Specification. Including all FRL and TMDS electrical tests required for 2.1/2.0/1.4b compliance.

Explore QPHY-HDMI2.0 and QPHY-HDMI2.1 arrow down
product title image
  • product line tab
  • overview tab
  • compatability tab
Key Features
  • HDMI Versions 2.1 (FRL and TMDS) and HDMI 2.0/1.4b (TMDS) Compliance Test Specifications
  • Simple and easy-to-use automated testing
  • Multi-Lane testing through eight channel oscilloscope configuration or RF-Switches
  • Dedicated signal pull-up termination provided by TF-HDMI-3.3V enables full bandwidth testing using cables
  • Powerful and flexible analysis tools offer unmatched connection diagrams help to make sure that you get the right setup on the first try
  • QualiPHY report generation creates comprehensive reports with all pertinent test information

QPHY-HDMI2.1 Makes Compliance Testing Easy

Often, compliance testing is a very difficult task. The user must make the necessary connections between the oscilloscope and the device under test, manually configure the oscilloscope for the appropriate measurement, perform the test procedure as specified by the test specification, record the results and finally compare the results to the appropriate limit in the compliance specification. QPHY-HDMI2.1 does many of these steps for you automatically.

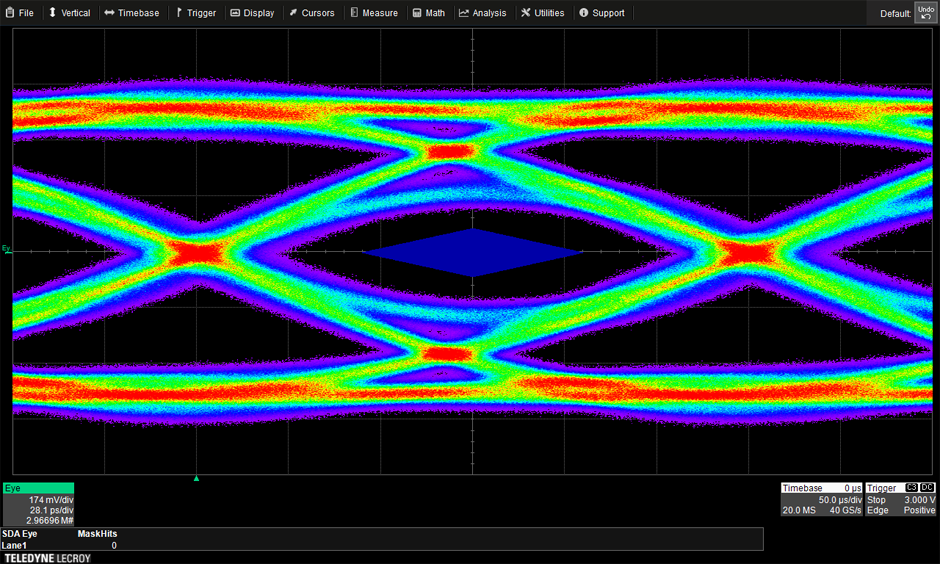

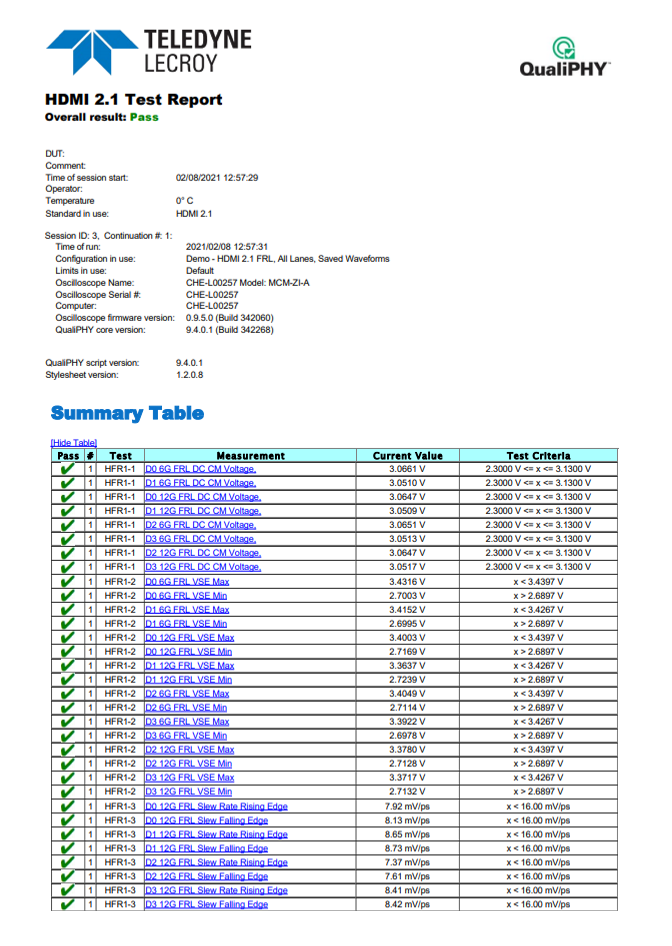

Comprehensive report generation

When the tests have been completed, QualiPHY creates a comprehensive report in HTML and/or PDF format. The report contains a high-level summary of test results as well as details and screenshots of each test as performed on the DUT.

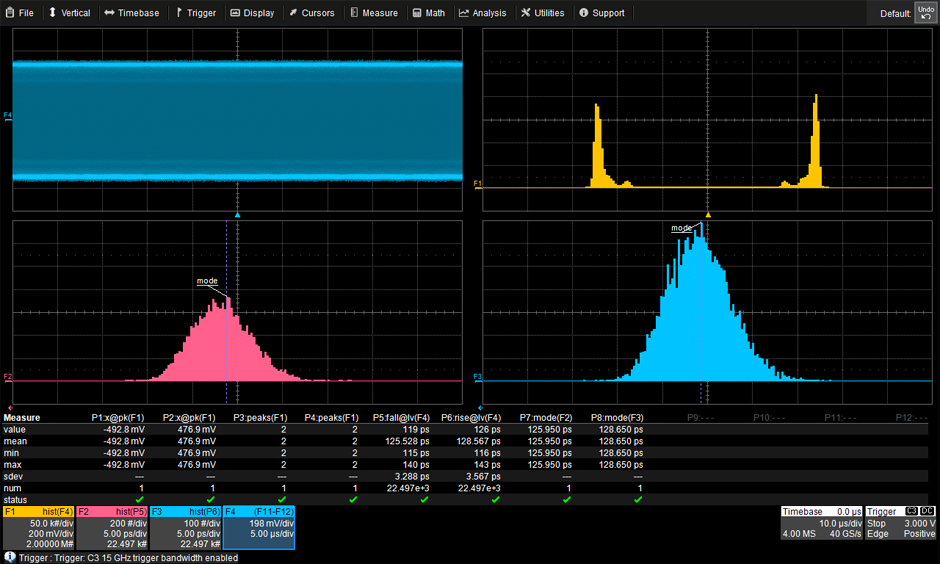

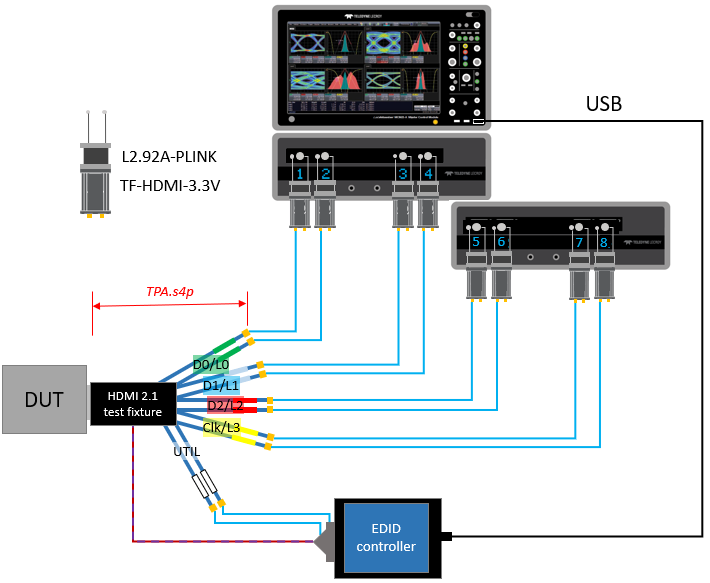

Multi-Lane Test Support

HDMI 2.1 compliance testing requires testing of four differential signals in both single-ended and differential configurations. By its nature, this kind of testing means moving and reconnecting cables between the device under test and the oscilloscope. QPHY-HDMI2.1 supports this type of “manual” operation, and walks the user through it in the most efficient way possible. But to improve test times and remove complexity, two LM Zi-A acquisition modules (eight channel configuration) can be used to capture all required differential and single ended signals in a single setup for FRL & TMDS testing. If testing a device that only supports TMDS, then an RF-switch matrix can be used to automatically change connections.

Fixture and Switch De-embedding

As HDMI signal rates increase to 12 Gb/s on each FRL lane, the effects of test interconnects on the signals under test become more critical. In some cases, there is the possibility that an otherwise passing device may fail due to these effects. QPHY-HDMI2.1 includes the ability to de-embed fixtures and RF switches using Teledyne LeCroy’s Eye Doctor II advanced signal integrity toolkit, enabling testing of the DUT’s true performance margins.
