Key Features
-
Gain and Phase plots
-
Gain Margin
-
Phase Margin
-
Crossover Frequency
-
Power Supply Rejection Ratio (PSRR)
-
Tabulated plot data
Easy Setup and Configuration

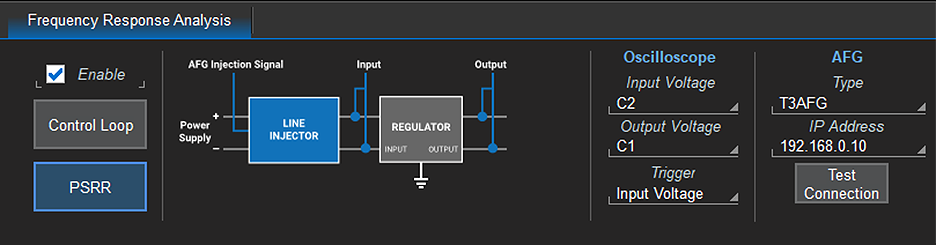

Pick either control loop or PSRR test, connect the oscilloscope and AFG to the DUT, create injection signals in the oscilloscope UI, and hit ‘Run’ – it’s that simple.
Flexible Testing

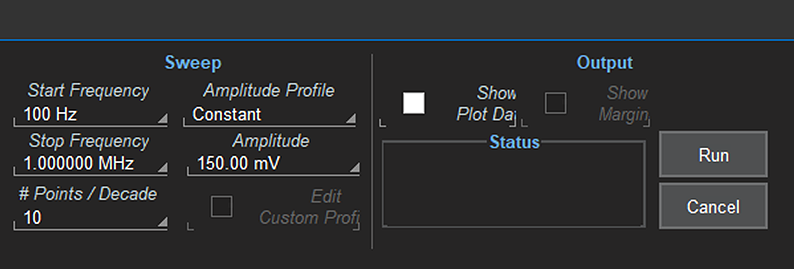

Create any desired injection signal by uploading custom frequency and amplitude parameters in the custom profile table on the oscilloscope.
Complete Solution for FRA

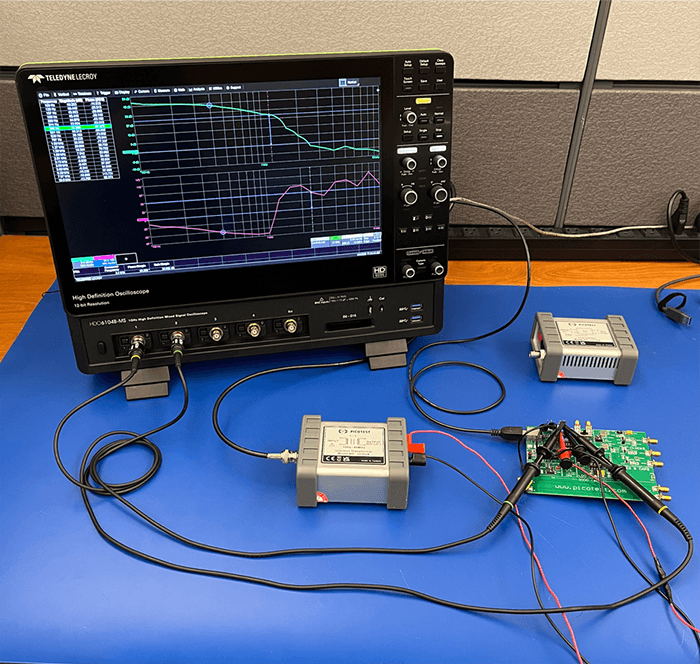

The optional FRA-BUNDLE includes all essential transformers and cables needed for frequency response analysis, providing a one-stop-shop for characterizing power supply stability.
