Overview

OakGate 8-Bay Modules for the R300 Rackmount and DE200 Desktop Appliances for PCI Express® Gen6 are a robust, versatile way to test and debug solid -state NVMe drives (SSDs). Modules are available to support all popular storage interfaces. The 8-Bay Modules can be easily swapped in/out.

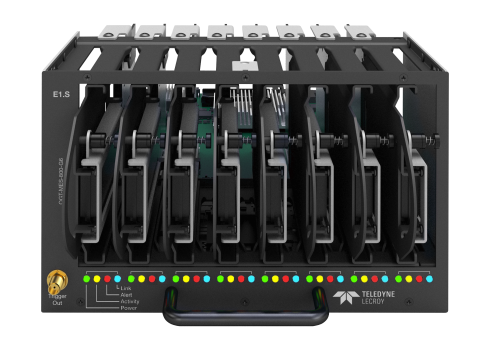

The M-Series 8-Bay Plug-In Modules provide a simple, flexible way to test all the popular SSD form factors and connector types within an OakGate R300 Rackmount Appliance and/or DE200 Desktop Appliance. The module resides in the front compartment of the OakGate appliance and allows testing of up to eight SSDs. The OakGate Storage Validation Framework (SVF) software, supplied with the appliance, can exercise each SSD individually, as well as provide built-in power cycling and power measurement capabilities.

The robust SVF software, now in its fifth generation, offers a comprehensive set of testing features and capabilities. Enduro with SVF supports a broad range of capabilities including deep protocol inspection and analysis, high performance traffic generation, full performance characterization, error injection, advanced test automation and power cycling. The new OakGate Gen5 platforms offer power measurements and power cycling, all under software control.

Connection support and configurations

  • Modules are available to support the most common SSD connector types
  • Test a multitude of different connector types to meet all your SSD test demands
  • The 8-Bay Modules are designed to be easily swapped in/out by the customer
  • Modules are supported in DE200 Desktop and R300 Rackmount Appliances

M-Series 8-Bay Modules Models

Model Description
OGT-MCEM-800-G6

Supports up to eight CEM Add-In Card NVMe drives
OGT-ME2-800-G6

Supports up to eight E2 NVMe drives / Single/Dual-Port Mode
OGT-ME3S-800-G6

Supports up to eight E3 NVMe drives / Single/Dual-Port Mode
OGT-MES-800-G6

Supports up to eight E1 Short NVMe drives / Single/Dual-Port Mode
OGT-MU2-800-G6

Supports up to eight U.2 NVMe drives / Single/Dual-Port Mode
OGT-MU3-802-G6

Supports up to eight U.3 single-port, 2.5-inch NVMe drives
OGT-MU3-801-G6

Supports up to eight U.3 dual-port, 2.5-inch NVMe drives
Compatibility

Supported protocols include: NVMe, NVMe-MI (standard and basic)
LED indicators

Power (green), activity (yellow), alert (red), and link status speed (blue) on front of module
Ports

Allows easy access to the device diagnostic port, if it is located on the front-side (opposite of the connector)
Unique tests

Ability to run unique tests on each device individually and concurrently
Power cycling & measurement

Individual power cycling and power measurement under software control
Configurable to support 3.3V, 3.3V Aux, 5V, and 12V power rails
Ability to turn power on/off to each device
Ability to measure voltage and current for each port/device
Ability to measure power under various low NVMe power states

Add-ons

Simple device replacement

M-Series 8-Bay Module
Models		 OGT-MCEM-800-G6

Supports up to eight CEM Add-In Card NVMe drives

OGT-ME2-800-G6

Supports up to eight E2 NVMe drives / Single/Dual-Port Mode

OGT-ME3S-800-G6

Supports up to eight E3 NVMe drives / Single/Dual-Port Mode

OGT-MES-800-G6

Supports up to eight E1 Short NVMe drives / Single/Dual-Port Mode

OGT-MU2-800-G6

Supports up to eight U.2 NVMe drives / Single/Dual-Port Mode

OGT-MU3-802-G6

Supports up to eight U.3 single-port, 2.5-inch NVMe drives

OGT-MU3-801-G6

Supports up to eight U.3 dual-port, 2.5-inch NVMe drives

OGT-MM2-800-G6

Supports up to eight M.2 drives
