QPHY2-DP2-SINK-RX

QPHY-DP2-SINK-RX software provides automated calibration and Sink BER compliance testing on DisplayPort 2.1 Source (Rx) devices. Supporting all DisplayPort 2.1 CTS UHBR data rates and all DisplayPort 1.4b CTS HBR/RBR data rates.

Explore QPHY2-DP2-SINK-RX arrow down

Automotive Ethernet Debug Toolkit

ET-PMT

QPHY-MIPI-DPHY - D-PHY Compliance Package

QPHY-MultiGBaseT1-TDR

Visit Application Page

Key Features

When used with the Anritsu MP1900A stressed signal generator (SSG), provides full DisplayPort 2.1 CTS Sink (Rx) calibration and BER test solution
Easy to use - simply follow test trees, connection diagrams, and press run
One compliance test framework (QualiPHY 2) supports both Source and Sink testing
Automates Rx Return Loss and Test Cable De-embed with the WavePulser40iX Interconnect Analyzer
Supports a variety of third-party test fixtures and AUX controllers
Comprehensive, VESA approved, report generation with all pertinent test information

Full Sink (Rx) CTS Support

DisplayPort 2.1 UHBR20, UHBR13.5, UHBR10, HBR3, HBR2, HBR, and RBR Sink (Rx) compliance in a single, easy to use compliance test software package.

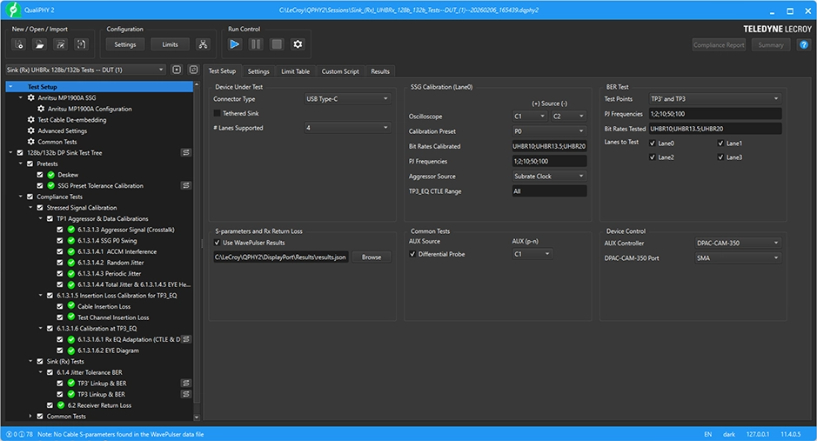

Easy to use Test Tree

All calibrations and BER tests are listed in a test tree with quick access connection diagram that guides the user when a change in setup is required.

Automated Return Loss

Save time and reduce errors with an automated return loss measurement that provides more capability at less cost and with ease-of-use benefits compared to a vector network analyzer (VNA).
